Summary of Contents for VigilLink VLMX-431HT70

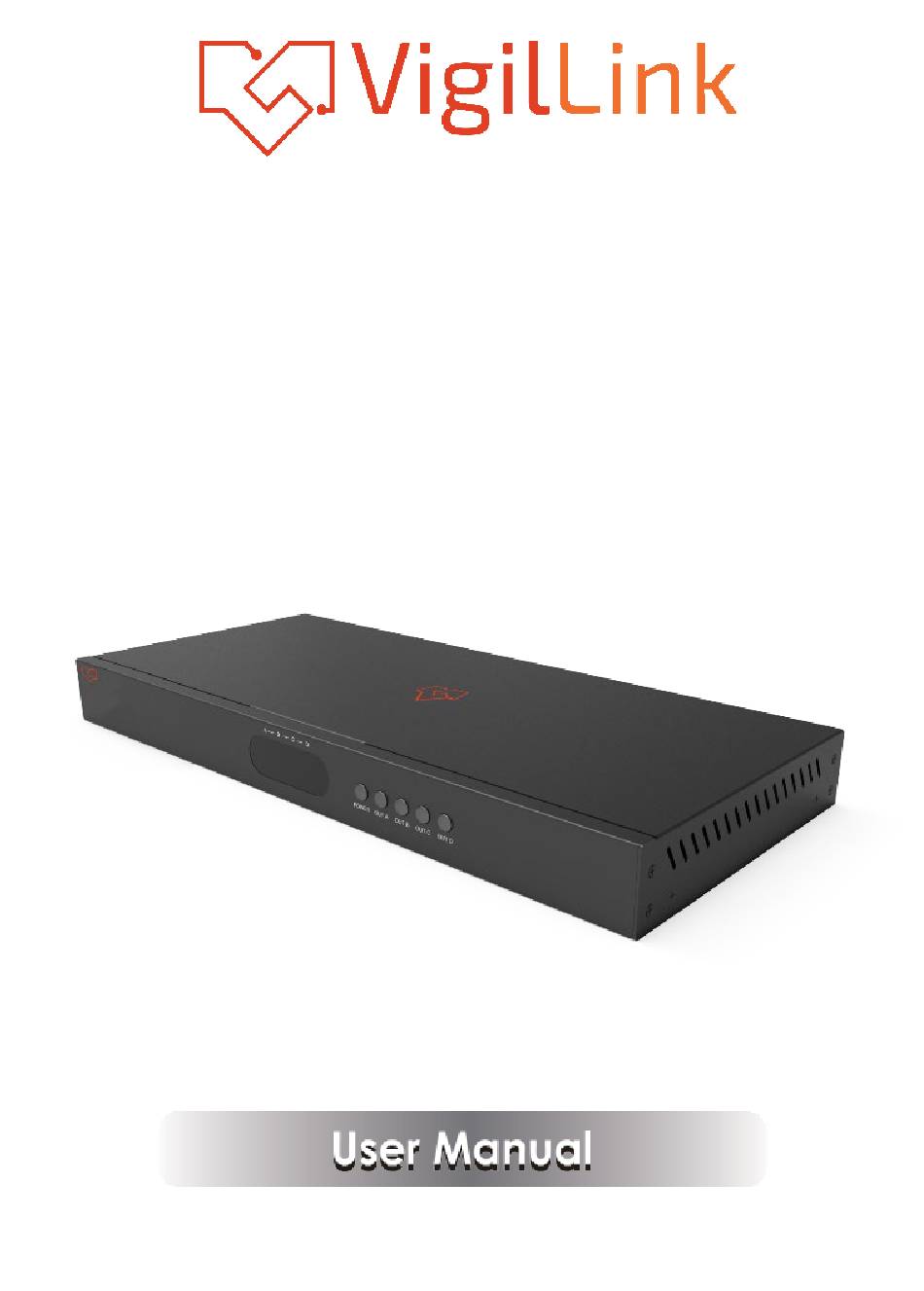

- Page 1 VLMX-431HT70 4x3+1 HDMI 2.0 Matrix over HDBaseT 70m 18Gbps VER 1.02...
-
Page 2: Table Of Contents
Thank you for purchasing this product Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device recommended This product contains sensitive electrical components that electrical spikes may damage, surges, electric shocks, lightning strikes, etc. -
Page 3: Introduction
1. Introduction The 4x3+1 HDBaseT Matrix supports video transmission (up to 4K2K@ 60Hz, 18Gbps, HDCP 2.2) and multi-channel digital audio from 4 HDMI sources to 3 HDBaseT-Lite outputs and 1 independent HDMI 2.0 output. It supports audio de-embedding from any one of 4 outputs (configurable). Any source can be selected via an on-panel button, IR remote control, RS-232, LAN, or Web GUI. -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth Up to 18Gbps Up to 4K2K@50/60Hz(YUV4:4:4), 4K2K@30Hz, Video Resolution 1080P@120Hz and 1080P 3D@60Hz Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 10-bit, 12-bit LPCM2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby HDMI Audio Formats Digital+, Dolby TrueHD, DTS-HD Master Audio,... -
Page 5: Operation Controls And Functions
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (Non-Condensation) 5. Operation Controls and Functions 5.1 Front panel Name Number Function description When a device is in standby mode, the LED light is red. - Page 6 OPTICAL Digital audio de-embedding output. AUDIO OUTPUT Analog L/R audio de-embedding output. If the front IR sensor of the unit is obstructed or installed in a closed area out of the infrared line of sight, the IR receiver included can be inserted into IR EXT the IR EXT port at the rear to extend the IR sensor range and enable local of the Matrix.
-
Page 7: Hdbaset Receiver Panel
4K2K60_420, HD Audio 7.1 4K2K60_444,Stereo Audio 2.0 4K2K60_444,Dolby/DTS 5.1 4K2K60_444, HD Audio 7.1 6. HDBaseT Receiver Panel Number Name Function description This LED illuminates when the device is POWER connected to the power supply. Plug the 24V DC power supply into the unit. DC 24V (If the device connects to the Matrix, the receiver doesn't need a local power supply due to PoC from the... -
Page 8: Ir Control System
※Illuminate: The Transmitter and Receiver are in good connection status. ※Flashing: The Transmitter and Receiver are Connection Signal in poor connection status. Indicator Lamp ※Dark: The Transmitter and Receiver are not connected. ※Illuminate: The HDMI signal with HDCP. Data Signal ※Flashing: The HDMI signal without HDCP. - Page 9 IR control is divided into two kinds of control ways as below. Insert the 3.5mm IR receiver cable into the IR INPUT ports at the rear of the Matrix. At the same time, insert the 3.5mm IR blaster cable into the IR OUTPUT ports at the back of the Matrix.
-
Page 10: Remote Control
IR Pin Definition IR Receiver and Blaster pin's definition as below: IR RECEIVER IR BLASTER 8. Remote control ① Press this button to open the power of the Matrix or set it as a standby status. ② Press these keys to select the output A, output B, output C, or output D for output corresponding 1, 2, 3, or 4 input sources. -
Page 11: Web Gui User Guide
9. Web GUI User Guide The Matrix can be controlled via Web GUI through LAN port. You must know t h e current Matrix IP address. The static IP address is 192.168.1.100. You can connect PC Web GUI through a dynamic IP address. You can get the IP address in this unit via the PC Controller. - Page 12 General page ① Display currently the Matrix input and output port status. The "yes" have a connected input or output source, and the "no" represents no connection. ② Power switch. The Matrix will work when opening this switch; otherwise, the Matrix will stand by. ③...
- Page 13 EDID page ① Set EDID mode to the input source, then click the "Set" button. ② Copy EDID from the HDMI output port to the input source, then click the "Set" button. ③ Open the EDID file to the input source, then click the "Set" button. ④...
- Page 14 ◆ In DHCP close status: HDCP switch: If the DHCP switch has been closed, the user can set IP, Subnet, and Gate address. At this moment, click the "Save Change" button to save current status information. (Attention: If the user has set the IP address, click the "Save Change"...
-
Page 15: Application Example
10. Application Example 13/13...
