VigilLink VLMX-44HT2 User Manual

4x4 hdmi 2.0 matrix over hdbaset 150m 18gbps

Advertisement

Quick Links

VLMX-44HT2
4x4 HDMI 2.0 Matrix over HDBaseT 150m 18Gbps
VER 1.02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VLMX-44HT2 and is the answer not in the manual?

Questions and answers

Summary of Contents for VigilLink VLMX-44HT2

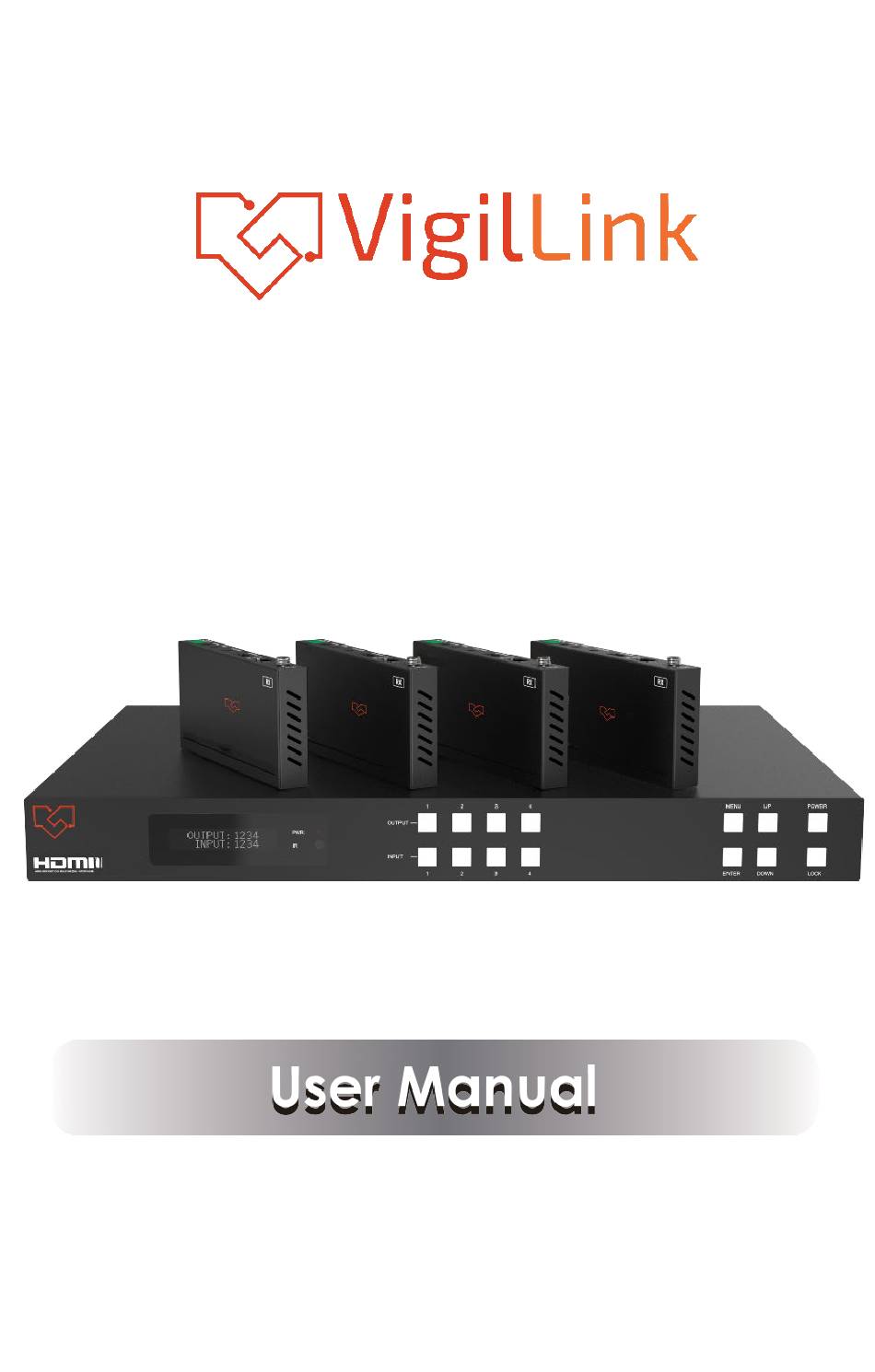

  • Page 1 VLMX-44HT2 4x4 HDMI 2.0 Matrix over HDBaseT 150m 18Gbps VER 1.02...
  • Page 2: Table Of Contents

    Thank you for purchasing this product Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device recommended This product contains sensitive electrical components that electrical spikes may damage, surges, electric shocks, lightning strikes, etc.
  • Page 3: Introduction

    1. Introduction The 18Gbps 4x4 HDBaseT(150M) Matrix can connect four HDMI sources to eight displays. It features four HDMI outputs, and each HDMI output is mirrored to provide a Cat-Cable output that runs simultaneously. HDBaseT output can extend video transmission distance up to 492ft / 150m via a single Cat 5e/6/7 cable, and the resolution is up to 4K2K@60Hz 4:4:4.
  • Page 4: Package Contents

    3. Package Contents ① 1 x 18Gbps 4x4 HDBaseT(150M) Matrix ② 4 x HDBaseT Receiver ③ 1 x Matrix IR Remote ④ 1 x 100~240V AC 50/60Hz Power cable ⑤ 1 x RS-232 serial cable (1.5 meters, male to female head) ⑥...
  • Page 5 Connection Inputs: 4 x HDMI Type A [19-pin female] Outputs: 4 x HDMI Type A [19-pin female] 4 × HDBaseT port [RJ45] 4 × Coaxial audio [3.5mm Stereo Mini-jack] 4 × balanced analog audio [5-pin Phoenix Matrix connector] Controls: 5 x IR IN [3.5mm Stereo Mini-jack] 5 x IR OUT [3.5mm Stereo Mini-jack] 1 ×...
  • Page 6: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Matrix Panel Front Panel Name Function Description Display matrix switching status, input/output port, EDID, OLED screen Baud rate, IP Address. The LED will illuminate in green when the product is usually Power LED working and red when the product is on standby. You need to press an output button (1~4) firstly and then OUTPUT / press an input button (1~4) to select the corresponding...
  • Page 7 Rear Panel Name Function Description IR IN (1/2/3/4/ Connect to the IR receiver cable; the IR receive signal will ALL) ports emit to the "IR OUT" port of the HDBaseT Receiver. IR OUT (1/2/3/4/ Connect to the IR blaster cable; the IR emit signal is from the "IR IN"...
  • Page 8: Hdbaset Receiver Panel

    5.2 HDBaseT Receiver Panel Name Function Description Power LED Red LED will be on when the receiver is powered on. SERVICE port Firmware update port. DC 24V/1A power supply input port. Note: The Matrix supports the PoC function, which means that DC 24V a 24V/1A power adapter powers on either transmitter or receiver, and the other doesn't need a power supply.
  • Page 9: Ir Remote

    6. IR Remote ① Power on or Standby: Power on the Matrix or set it to standby mode. ② Output 1: Press the 1\2\3\4 button to select the input source to HDMI OUTPUT 1. ③ Output 2: Press the 1\2\3\4 button to select the input source to HDMI OUTPUT 2.
  • Page 10: Ir Control System

    7. IR Control System The product is not only a matrix switch but also an extender. It supports bi-directional IR control. When Matrix is connected to HDBaseT Receiver through Cat 5e/6/7 cable, you can control the remote display device (HDBaseT) or input source device (Matrix) through IR signal transmission.
  • Page 11 At HDBaseT receiver (Remote end): IR signal follows video switch to change. For example, the HDMI output signal on the HDBaseT Receiver 1 is from the HDMI INPUT 2 port, so the IR input signal of the HDBaseT Receiver 1 will emit the IR OUT 2 port of the Matrix. The HDMI output signal on the HDBaseT Receiver 3 is from the HDMI INPUT 4 port.
  • Page 12: Ir Cable Pin Assignment

    8. IR Cable Pin Assignment 9. EDID Management This Matrix has 21 factories defined EDID settings, 2 user-defined EDID modes, and 8 copy EDID modes. You can select the defined EDID mode or copy EDID mode to the input port through the on-panel button, RS-232, control, or Web GUI.
  • Page 13 The defined EDID setting list of the product is shown below: EDID Mode EDID Description 1080p, Stereo Audio 2.0 1080p, Dolby/DTS 5.1 1080p, HD Audio 7.1 1080i, Stereo Audio 2.0 1080i, Dolby/DTS 5.1 1080i, HD Audio 7.1 3D, Stereo Audio 2.0 3D, Dolby/DTS 5.1 3D, HD Audio 7.1 4K2K30_444, Stereo Audio 2.0...
  • Page 14: Web Gui User Guide

    10. Web GUI User Guide Web GUI can control the Matrix. The operation method is shown below: Step 1: Get the current IP Address. The default IP address is 192.168.1.100. You can get the current Matrix IP address in two ways: The first is to get the IP address via panel buttons.
  • Page 15 After entering the Web GUI page, there will be a Login page, as shown below: Select the Username from the list and enter the password. The default passwords are: Username User Admin Password user admin After entering the password, click the "Log in" button, and the following Status page will appear.
  • Page 16 ■ Video Page You can do the following operations on the Video page: ① Output: The current device's OUTPUT port. You can select the signal source for it. ② Input: You can click the drop-down menu to select the signal source for the corresponding OUTPUT port.
  • Page 17 Set EDID for the User Click the "Browse" button, then select the bin file. If you choose the wrong EDID file, there will be a prompt, as shown in the following figure: Make sure to select the correct file; then, you can check the selected file's name. Select "User 1"...
  • Page 18 ■ CEC Page You can perform CEC management on this page: ① Input Control: You can control the operation of each input source by pressing the icons on the page. (You can control multiple inputs simultaneously.) ② Output Control: You can control the operation of each display, such as power on/off, volume +/-, and active source switching.
  • Page 19 Click "OK" to search the IP Address again, as shown in the following figure: After searching is completed, it will switch to the login page, the default network setting is completed. Modify User Password Click the "User" button, enter the correct Old Password, New Password, and Confirm Password, then click "Save."...
  • Page 20 ■ System Page ① Panel Lock: Click to lock/unlock panel buttons. "On" indicates that panel buttons are unavailable; "Off" indicates panel buttons are available. ② Beep: Click to turn on/off the beep. ③ LCD: You can turn on/off the LCD and set the turn-on time (15s/30s/60s). ④...
  • Page 21: Rs-232 Control Command

    11. RS-232 Control Command The product also supports RS-232 control. You need a serial cable with an RS-232 male head and a DB9 transfer USB male head. The RS-232 head of the serial cable is connected to the RS- 232 control port with DB 9 at the rear of the Matrix, and the USB head of the serial cable is connected to a PC.
  • Page 22 Example Function Description Feedback Command Code Default Setting Get the connection status of the r link in x! r link in 1! HDMI input 1: connect x input port,x=0~4(0=all) Get the connection status of the HDMI output 1: r link out y! r link out 1! y output port,y=0~4(0=all) connect HDBT output...
  • Page 23 Get HDMI output y stream r HDMI 1 stream! enable HDMI output r HDMI y stream! status, y=0~4(0=all) 1 stream - 21 / 25 -...
  • Page 24 Example Function Description Feedback Command Code Default Setting enable HDBT output 1 stream disable HDBT output Set HDBT output y stream on/off, s HDBT 1 stream 1 stream s HDBT y stream y=0~4(0=all) enable z=0~1(0:disable,1:enable) enable HDBT all s HDBT 0 stream outputs stream disable HDBT all outputs...
  • Page 25 Example Function Description Feedback Command Code Default Setting Get the EDID data of the EDID: 00 FF FF FF FF r EDID data HDMI r EDID data HDMI HDMI output y port,y=1~4 FF FF 00 ……… Get the EDID data of the EDID: 00 FF FF FF FF r EDID data HDBT r EDID data HDBT...
  • Page 26 s CEC HDBT out y set HDBT output y volume up s CEC HDBT out HDBT output 1 volume up vol+! by CEC, y=0~4(0=all HDBT 1 vol+! output) s CEC HDMI set HDMI output y active source s CEC HDMI out HDMI output 1 out y active! by CEC, y=0~4(0=all HDMI...
  • Page 27 Example Function Description Feedback Command Code Default Setting Network Setting IP Mode: Static IP: 192.168.1.72 Subnet Mask: 255.255.255.0 r ipconfig! Get the Current IP Configuration r ipconfig! Gateway: 192.168.1.1 TCP/IP port=8000 Telnet port=10 Mac address: 00:1C:91:03:80:01 Mac address: r mac addr! Get the network MAC address r mac addr! 00:1C:91:03:80:01...
  • Page 28 Example Function Description Feedback Command Code Default Setting Network reboot… IP Mode: Static IP: 192.168.1.72 Subnet Mask: 255.255.255.0 s net reboot! Reboot network modules s net reboot! Gateway: 192.168.1.1 TCP/IP port=8000 Telnet port=10 Mac address: 00:1C:91:03:80:01 Set the data length of x HDBT HDBT uart1 data len s uart x datalen y! s uart 1 datalen 1!
  • Page 29: Application Example

    12. Application Example HDMI and HDMI High-Definition Multimedia Interface and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. - 27 / 25 -...
