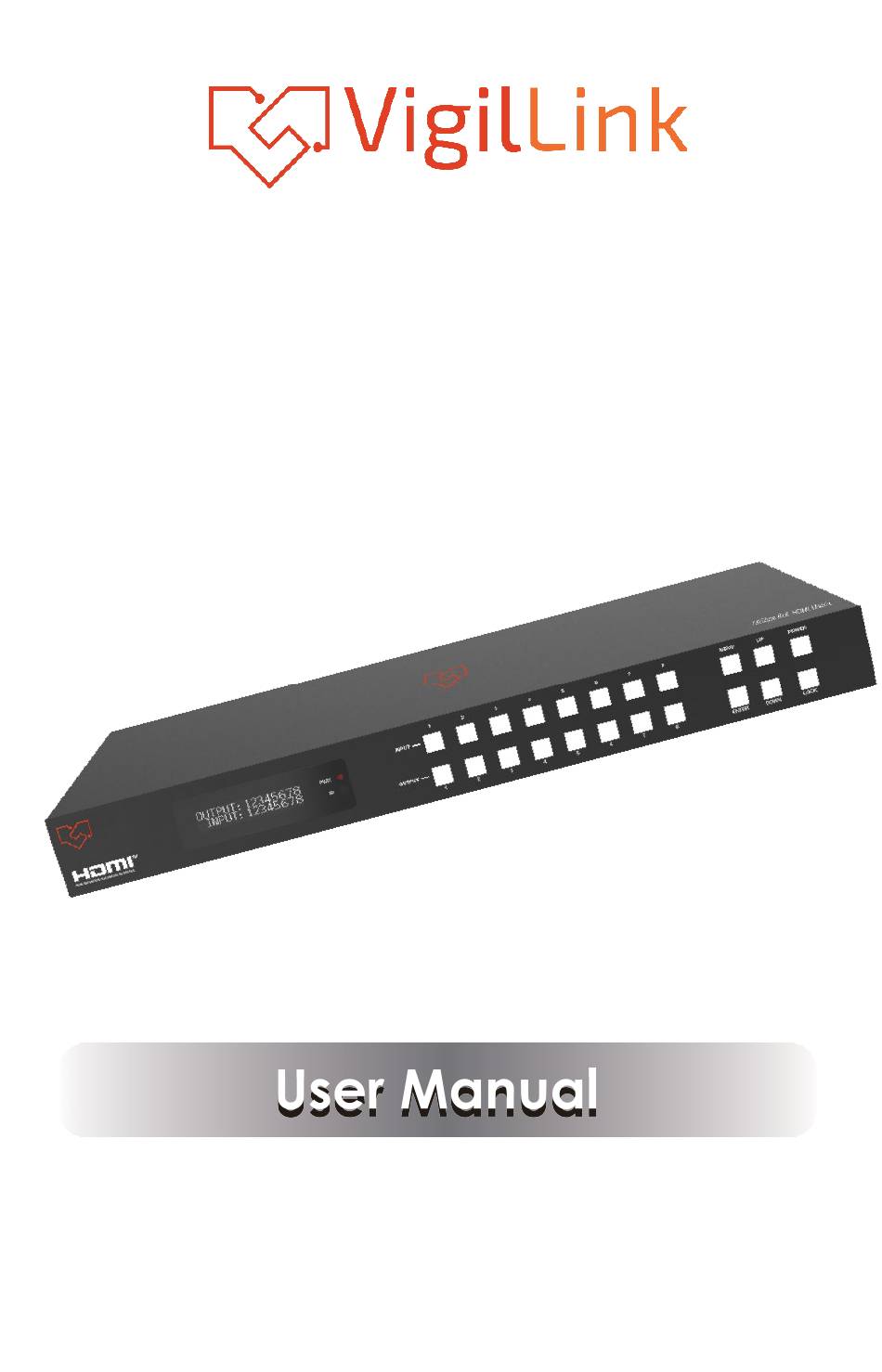

VigilLink VL-MX88-1 User Manual

8x8 hdmi 2.0 matrix 18gbps
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VL-MX88-1
8x8 HDMI 2.0 Matrix 18Gbps
VER 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VL-MX88-1 and is the answer not in the manual?

Questions and answers

Related Manuals for VigilLink VL-MX88-1

Summary of Contents for VigilLink VL-MX88-1

  • Page 1 VL-MX88-1 8x8 HDMI 2.0 Matrix 18Gbps VER 1.1...

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating, or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shocks, lightning strikes, etc.

  • Page 3: Introduction

    1. Introduction The 18Gbps 8x8 HDMI Matrix supports the transmission of video (up to 4K2K@60Hz YUV 4:4:4) and multi-channel high-resolution digital audio from eight (8) HDMI sources to eight (8) HDMI displays. Audio de-embedded to analog and coaxial audio is supported from eight (8) HDMI output ports.

  • Page 4: Specifications

    4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18Gbps Up to 4K2K@50/60Hz (4:4:4) Video Resolution Color Space RGB, YCbCr 4:4:4/4:2:2/4:2:0 Color Depth 8-bit, 10-bit, 12-bit HDMI Audio Formats LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, (Pass-through) Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X Coax Audio Formats...

  • Page 5: Operation Controls And Functions

    5. Operation Controls and Functions Front Panel Name Function Description Display matrix switching status, input/output port, EDID, OLED screen Baud rate, IP Address. The LED will illuminate in green when the product is connected Power LED to the power supply, and red when the product is on standby.
  • Page 6 Rear Panel Name Function Description If the IR receiver window of the unit is blocked or the unit is installed in a closed area out of the infrared line of sight, IR EXT the IR receiver cable can be inserted into the “IR EXT” port to receive the IR remote signal.

  • Page 7: Ir Remote

    6. IR Remote ① Power on or Standby: Power on the Matrix or set it to standby mode. ② Input 1/2/3/4/5/6/7/8: Select the input source button. : Select the last or next input source button. ③ Output 1/2/3/4/5/6/7/8: Select the output source button. All: Select all output sources simultaneously.

  • Page 8: Ir Cable Pin Assignment

    remote is 7 meters and the IR remote is directly faced to the IR receiver head. The diagram is shown below. 7. IR Cable Pin Assignment - 6 / 20 -...

  • Page 9: Edid Management

    8. EDID Management This Matrix has 21 factories defined EDID settings, 2 user-defined EDID modes, and 8 copy EDID modes. You can select defined EDID mode or copy EDID mode to input port through front panel buttons, RS-232 control, or Web GUI. On-panel button operation: On the initial OLED display screen, press the “MENU”...
  • Page 10 The defined EDID setting list of the product is shown below: EDID Mode EDID Description 1080p, Stereo Audio 2.0 1080p, Dolby/DTS 5.1 1080p, HD Audio 7.1 1080i, Stereo Audio 2.0 1080i, Dolby/DTS 5.1 1080i, HD Audio 7.1 3D, Stereo Audio 2.0 3D, Dolby/DTS 5.1 3D, HD Audio 7.1 4K2K30_444, Stereo Audio 2.0...
  • Page 11 9. Web GUI User Guide The Matrix can be controlled by Web GUI. The operation method is shown below: Step 1: Get the current IP Address. The default IP address is 192.168.1.100. You can get the current Matrix IP address in two ways: The first way: You can get the IP address via panel buttons.
  • Page 12 user admin Password - 10 / 20 -...
  • Page 13 After entering the password, click the “LOGIN” button and the following Status page will appear. ■ Status Page The Status page provides basic information about the Model, the installed firmware version, and the network settings of the device. ■ Video Page You can do the following operations on the Video page: ①...
  • Page 14 ■ Input Page You can do the following operations on the Input page: ① Inputs: Input channel of the device. ② Active: It indicates whether the channel is connected to a signal source. ③ Name: The input channel’s name. You can modify it by entering the corresponding name (max length: 12 characters) in the input box.
  • Page 15 ■ Output Page You can do the following operations on the Output page: ① Outputs: Output channel of the device. ② Name: The current output channel’s name. You can modify it by entering the corresponding name (max length: 12 characters) in the input box. ③...
  • Page 16 ■ Network Page Set the Default Network Click “Set Network Defaults”, and there will be a prompt, as shown in the following figure: Click “OK” to search the IP Address again, as shown in the following figure: After searching is completed, it will switch to the login page, the default network setting is completed.
  • Page 17 Modify Username Click the “User” button, enter the correct Old Password, New Password, and Confirm Password, then click “Save”. After successful modification, there will be a prompt, as shown in the following figure: Note: Input rules for changing passwords: (1) The password can’t be empty. (2) New Password can’t be the same as the Old Password.

  • Page 18: Rs-232 Control Command

    ① Panel Lock: Click “Panel Lock” to lock/unlock panel buttons. “On” indicates that panel buttons are unavailable; “Off” indicates panel buttons are available. ② Beep: Click “Beep” to turn on/off the beep. ③ LCD: You can turn on/off the LCD, and set the turn-on time (15s/30s/60s). ④...
  • Page 19 Example Function Description Feedback Command Code Default Setting Get the unit all status: power, beep, lock, in/ out connection, video/ r status! Get the device’s current status r status! audio crosspoint, EDID, scaler, network status MCU BOOT: Vx.xx.xx r fw version! Get Firmware version r fw version! MCU APP: Vx.xx.xx...
  • Page 20 Example Command Code Function Description Feedback Default Setting Enable HDMI output 1 stream Disable HDMI output s HDMI 1 stream Set output y stream on/off, y=0~8 1 stream s HDMI y stream enable (0=all) z=0~1(0:disable,1:enable) Enable HDMI all outputs stream s HDMI 0 stream Disable HDMI all outputs stream...
  • Page 21 Example Function Description Feedback Command Code Default Setting CEC Setting set input x power on by CEC, input 1 power on s CEC in x on! s CEC in 1 on! x=0~8(0=all input) set input x power off by CEC, s CEC in x off! s CEC in 1 off! input 1 power off...
  • Page 22 Example Function Description Feedback Command Code Default Setting Network Setting IP Mode: Static IP: 192.168.1.72 Subnet Mask: 255.255.255.0 r ipconfig! Get the Current IP Configuration r ipconfig! Gateway: 192.168.1.1 TCP/IP port=8000 Telnet port=10 Mac address: 00:1C:91:03:80:01 Mac address: r mac addr! Get the network MAC address r mac addr! 00:1C:91:03:80:01...

  • Page 23: Application Example

    Example Command Code Function Description Feedback Default Setting Network reboot… IP Mode: Static IP: 192.168.1.72 Subnet Mask: 255.255.255.0 s net reboot! Reboot network modules s network reboot! Gateway: 192.168.1.1 TCP/IP port=8000 Telnet port=10 Mac address: 00:1C:91:03:80:01 11. Application Example The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
  • Page 24 - 22 / 20 -...
