VigilLink VLMX-1616E User Manual

16x16 hdmi 2.0 matrix 18gbps
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VLMX-1616E
16x16 HDMI 2.0 Matrix 18Gbps
VER 1.02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VLMX-1616E and is the answer not in the manual?

Questions and answers

Related Manuals for VigilLink VLMX-1616E

Summary of Contents for VigilLink VLMX-1616E

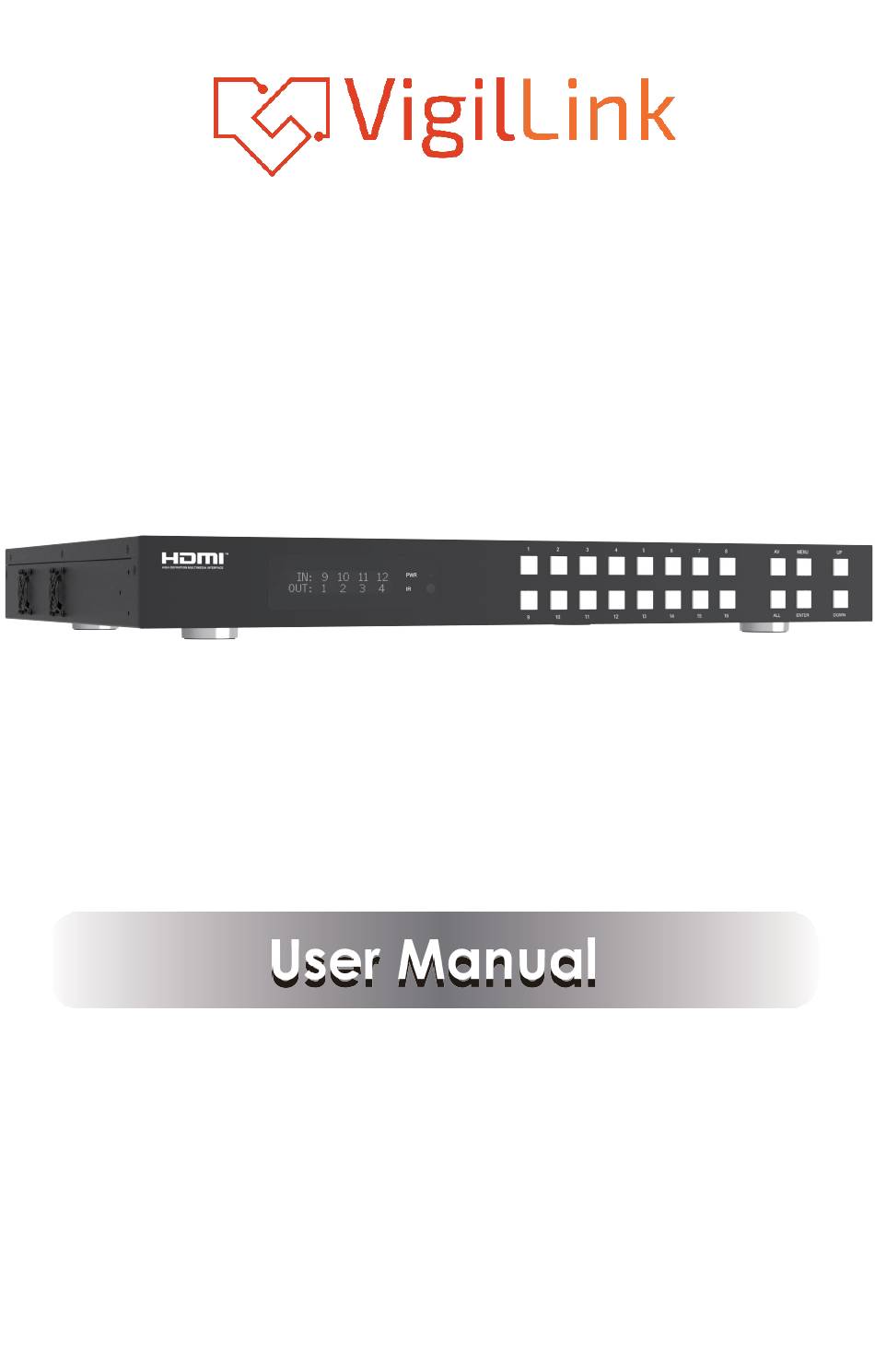

  • Page 1 VLMX-1616E 16x16 HDMI 2.0 Matrix 18Gbps VER 1.02...

  • Page 2: Table Of Contents

    Thank you for purchasing this product Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device recommended This product contains sensitive electrical components that electrical spikes may damage, surges, electric shocks, lightning strikes, etc.

  • Page 3: Introduction

    1. Introduction The 18Gbps 16x16 HDMI Matrix supports the transmission of video (resolution up to 4K2K@ 60Hz YUV 4:4:4) and multi-channel high-resolution digital audio from 16 HDMI sources to 16 HDMI displays. Audio de-embedded to coaxial audio is supported from 16 HDMI output ports. While the HDMI output ARC function is enabled, the ARC audio from HDMI display devices will be extracted to coaxial audio output.

  • Page 4: Specifications

    4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2/1.x Video Bandwidth 18Gbps Up to 4K2K@60Hz (4:4:4) Video Resolution Color Space RGB, YCbCr 4:4:4/4:2:2/4:2:0 Color Depth 8-bit, 10-bit, 12-bit HDMI Audio Formats LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, (Pass-through) Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X Coax Audio Formats...

  • Page 5: Operation Controls And Functions

    5. Operation Controls and Functions Front Panel Name Function Description Display matrix switching status, input/output port, EDID, OLED screen Baud rate, IP Address. The LED will illuminate in green when the product is connected Power LED to the power supply and red when the product is on standby.

  • Page 6: Ir Remote

    Rear Panel Name Function Description The TCP/IP control port connects to the PC or router with TCP/IP port an RJ45 cable. Connect to a PC or control system by D-Sub 9-pin cable to RS-232 port transmit the RS-232 command. AUDIO OUT Coaxial audio output port, connect to the audio output (1-16) device such as an audio amplifier via a coaxial cable.

  • Page 7: Edid Management

    7. EDID Management This Matrix has 21 factory-defined EDID settings, 2 user-defined EDID modes, and 16 copy EDID modes. You can select defined EDID mode or copy EDID mode to input port through front panel buttons, RS-232 control, or Web GUI. On-panel button operation: On the initial OLED display screen, press the "MENU"...
  • Page 8 The defined EDID setting list of the product is shown as below: EDID Mode EDID Description 1080p, Stereo Audio 2.0 1080p, Dolby/DTS 5.1 1080p, HD Audio 7.1 1080i, Stereo Audio 2.0 1080i, Dolby/DTS 5.1 1080i, HD Audio 7.1 3D, Stereo Audio 2.0 3D, Dolby/DTS 5.1 3D, HD Audio 7.1 4K2K30_444, Stereo Audio 2.0...

  • Page 9: Web Gui User Guide

    8. Web GUI User Guide Web GUI can control the Matrix. The operation method is shown below: Step 1: Get the current IP Address. The default IP address is 192.168.1.100. You can get the current Matrix IP address in two ways: The first way: You can get the IP address via panel buttons.
  • Page 10 After entering the password, click the "Log in" button, and the following Status page will appear. ■ Status Page The Status page provides basic information about the Model, the installed firmware version, and the device's network settings. ■ Video Page You can do the following operations on the Video page: ①...
  • Page 11 ⑦ Presets Clear: You can clear the saved audio-video matrix switching relationship. - 9 / 19...
  • Page 12 ■ Input Page You can do the following operations on the Input page: ① Inputs: Input channel of the device. ② Active: It indicates whether the channel is connected to a signal source. ③ Name: The input channel's name. You can modify it by entering the corresponding name (max length: 12 characters) in the input box (the Chinese name is unsupported).
  • Page 13 ■ Output Page You can do the following operations on the Output page: ① Outputs: Output channel of the device. ② Cable: It indicates the connection status of output ports. When the output port is connected to the display, it shows green; otherwise, it shows gray. ③...
  • Page 14 ■ Network Page Set the Default Network Click "Set Network Defaults," and there will be a prompt, as shown in the following figure: Click "OK" to search the IP Address again, as shown in the following figure: After searching, it will switch to the login page; the default network setting is completed. - 12 / 19...
  • Page 15 Modify Username Click the "User" button, enter the correct Old Password, New Password, and Confirm Password, then click "Save." After successful modification, there will be a prompt, as shown in the following figure: Note: Input rules for changing passwords: (1) The password can't be empty. (2) New Password can't be the same as the Old Password.

  • Page 16: Rs-232 Control Command

    ① Panel Lock: Click "Panel Lock" to lock/unlock panel buttons. "On" indicates that panel buttons are unavailable; "Off" indicates panel buttons are available. ② Beep: Click "Beep" to turn on/off the beep. ③ LCD: You can turn on/off the LCD and set the turn-on time (15s/30s/60s). ④...
  • Page 17 Example Function Description Feedback Command Code Default Setting Get the unit all status: power, beep, lock, in/ out connection, video/ r status! Get device current status r status! audio crosspoint, edid, scaler, network status MCU BOOT: Vx.xx.xx r fw version! Get Firmware version r fw version! MCU APP: Vx.xx.xx...
  • Page 18 Example Command Code Function Description Feedback Default Setting Get hdmi output y port output hdmi output 1 set to r hdmi y scaler! r hdmi 1 scaler ! mode y=0~16(0=all) bypass mode EDID Setting Set input x EDID from default EDID z, x=0~16 (0=all),z=1~39 1, 1080p,Stereo Audio 2.0...
  • Page 19 Example Command Code Function Description Feedback Default Setting CEC Setting set input x power on by CEC, input 1 power on s cec in x on! s cec in 1 on! x=0~16(0=all input) set input x power off by CEC, input 1 power off s cec in x off! s cec in 1 off!
  • Page 20 Example Function Description Feedback Command Code Default Setting Network Setting IP Mode: Static IP: 192.168.1.72 Subnet Mask: 255.255.255.0 r ipconfig! Get the Current IP Configuration r ipconfig! Gateway: 192.168.1.1 TCP/IP port=8000 Telnet port=10 Mac address: 00:1C:91:03:80:01 Mac address: r mac addr! Get network MAC address r mac addr! 00:1C:91:03:80:01...

  • Page 21: Application Example

    Example Function Description Feedback Command Code Default Setting Network reboot… IP Mode: Static IP: 192.168.1.72 Subnet Mask: 255.255.255.0 s net reboot! Reboot network modules s network reboot! Gateway: 192.168.1.1 TCP/IP port=8000 Telnet port=10 Mac address: 00:1C:91:03:80:01 11. Application Example - 19 / 19...
