VigilLink VLMX-862HT70 User Manual

8x6+2 hdmi 2.0 matrix over hdbaset 70m 18gbps
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VLMX-862HT70
8x6+2 HDMI 2.0 Matrix over HDBaseT 70m 18Gbps
VER 1.02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VLMX-862HT70 and is the answer not in the manual?

Questions and answers

Related Manuals for VigilLink VLMX-862HT70

Summary of Contents for VigilLink VLMX-862HT70

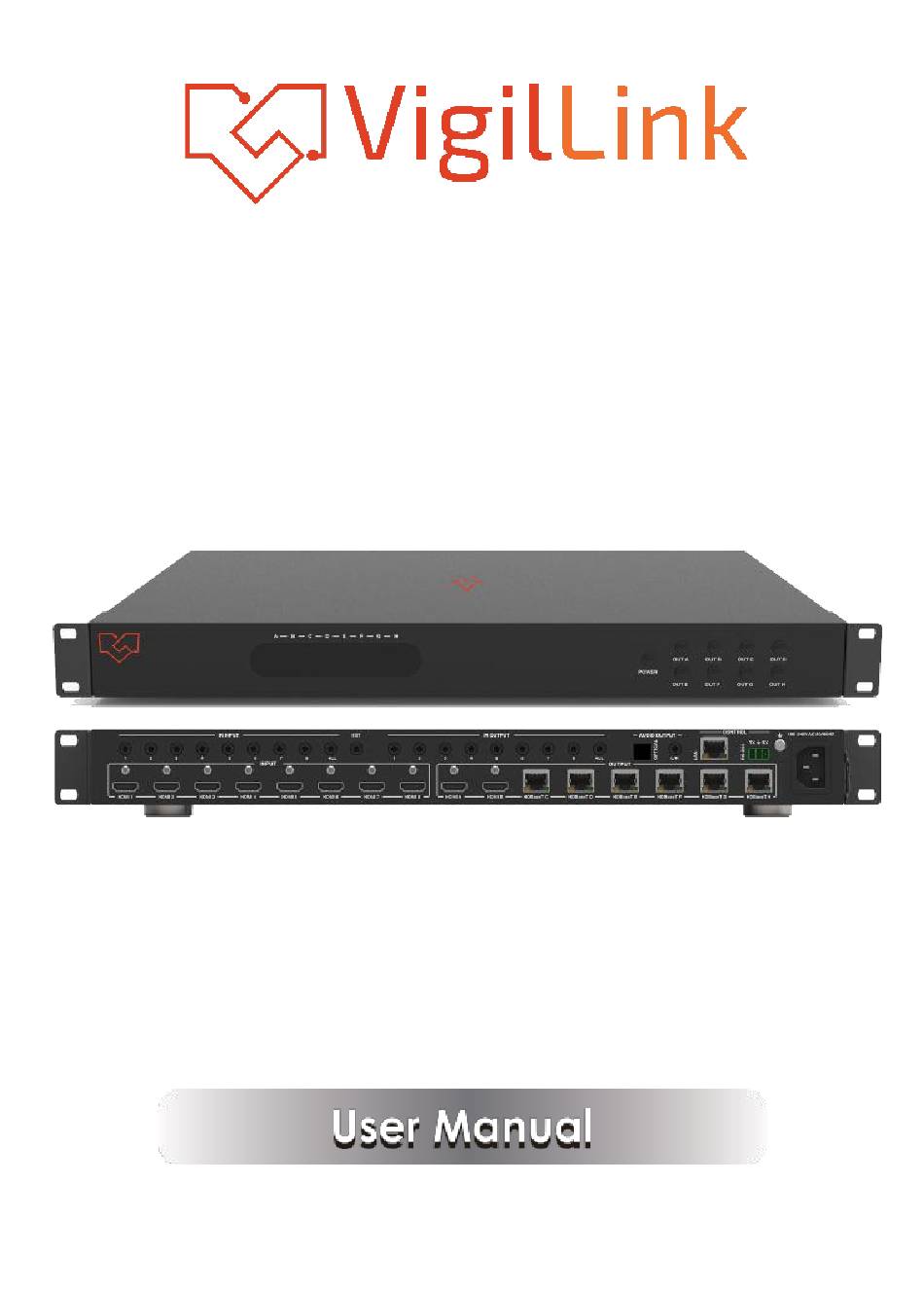

  • Page 1 VLMX-862HT70 8x6+2 HDMI 2.0 Matrix over HDBaseT 70m 18Gbps VER 1.02...

  • Page 2: Table Of Contents

    Thank you for purchasing this product Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device recommended This product contains sensitive electrical components that electrical spikes may damage, surges, electric shook, lightning strikes, etc.

  • Page 3: Introduction

    1. Introduction The HDBaseT™ 8x8 Matrix Switcher supports the transmission of video (up to 4K2K@60Hz YUV4:4:4, 8-bit, 18Gbps, HDCP 2.2) and multi-channel digital audio such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master audio from 8 HDMI sources to 6 HDBaseT™ outputs and 2 independent HDMI outputs.

  • Page 4: Specifications

    4. Specifications Technical Video Bandwidth 600MHz[18Gbps] 480i, 576i, 480p, 576p, 720p, 1080i, 1080p24/30/ Video Resolution 50/60, 4Kx2K@30, 4Kx2K@60 (4:4:4) Input Ports: 8×HDMI Type A [19-pin female] 9×IR input [3.5mm Stereo Mini-jack] 1×RS-232 [Phoenix connector] 1×LAN [RJ45 connector] Output Ports: 2×HDMI Type A [19-pin female] 6×HDBaseT Out [RJ45] Matrix 9×IR output [3.5mm Stereo Mini-jack]...

  • Page 5: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Front panel Name Number Function description Standby indicator light. The LED will illuminate red Standby LED when the unit is on standby status. If the unit is working, the LED light will not shine. IR receiver window.

  • Page 6: Remote Controller

    De-embedded audio output ports. By default, it outputs HDMI out A audio. But the user can select other output ports audio via Web GUI. Audio NOTE: Optical port can support PCM and compressed audio formats, but the L/R port only supports PCM OUTPUT audio.

  • Page 7: Ir Control System

    7. IR Control system (IR Call-back of Matrix and Source Devices) The matrix is not only a switcher and extender of multiple HDMI signals to multiple HDMI receivers located remotely, but it also passes IR control signals through the IR call-back system to the matrix and HDMI sources for full, independent control of all connected inputs from output locations.
  • Page 8 corresponding input source. Attention: The matrix has two location HDMI outputs. If the HDMI input source is switched to the two location HDMI outputs, the IR control will have no function. ② At display end: The matrix has two location HDMI outputs and six HDBT outputs.

  • Page 9: Web Gui User Guide

    8. Web GUI User Guide The Matrix can be controlled via Web GUI through LAN port. You must know the current Matrix IP address. The static IP address is 192.168.1.100. You can connect PC Web GUI through a dynamic IP address. You can get the IP address in this unit via the PC Controller.
  • Page 10 General page ① Display currently the Matrix input and output port status. The "yes" has a connected input or output source, and the "no" represents no connection. ② Power switch. The Matrix will work when opening this switch; otherwise, the Matrix will stand by. ③...
  • Page 11 EDID page ① Set EDID mode to the input source, then click the "Set" button. ② Copy EDID from the HDMI output port to the input source, then click the "Set" button. ③ Open the EDID file to the input source, then click the "Set" button. ④...
  • Page 12 ◆ In DHCP close status: HDCP switch: If the DHCP switch has been closed, the user can set IP, Subnet , and Gate address. At this moment, click the "Save Change" button to save current status information. (Attention: If the user has set the IP address, click the "Save Change"...

  • Page 13: Hdbt Receiver

    9. HDBT Receiver Number Name Function description This LED illuminates when the device is POWER connected to a power supply. Plug the 24V DC power supply into the unit. the device connects to the matrix, the receiver doesn't DC 24V need a local power supply due to PoC from the matrix.) Standard HDBaseT signal input port.

  • Page 14: Application Example

    10. Application Example 12/12...
