Summary of Contents for RedBack Lasers DrainRight100
- Page 2 Repairs and service perform any internal servicing. Repairs and service should be performed only authorised service should be performed only authorised service centres of Redback Lasers. centres of Redback Lasers. • • This instrument complies with the safety This instrument complies with the safety Classification standards of laser radiation.

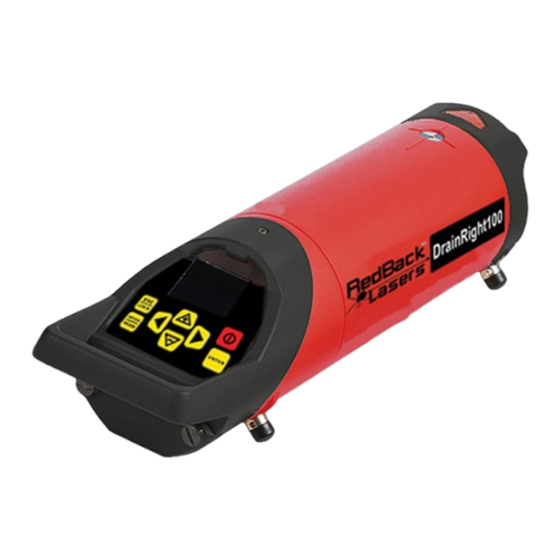

- Page 3 (IP68). The DrainRight100 has been designed and built specifically for plumbers and drainage contractors for levelling and grading pipes. The DR100 has fully automatic digital grade setting to 3 decimal places -20.000% to +30.000% range.
- Page 4 DrainRight100 DIAGRAMS DR100/G Laser Unit 1. Alignment Guide Plumb Ref LED 2. Tripod 5/8” Mount (Optional) 3. Control Panel 4. Interchangeable Feet 5. Laser Dot Output 6. Battery Li-ion/ Box Laser Target Lock Pipe Size Target Holder Bubble Vial...
-
Page 5: Control Panel
Control Panel % Grade to 3 Decimal Places Grade Direction Remote Sensor Level Laser Dot Indicator Position Left to Left to Right Right Battery Level Leave Grade Indicator Mode/ Standby (long Power Button press) Move Laser Dot Move Left Laser Dot Right Enter Grade Setting Mode/... -
Page 6: Battery Instructions
DR100/G OPERATING INSTRUCTIONS Battery Instructions The DrainRight100 has two battery options either 4 x standard “C” cell size Alkaline cells or the Li-ion rechargeable pack. For standard 4 x “C” alkaline operation simply insert into the battery holder in the direction indicated, insert into laser and tighten the locking screws. - Page 7 Turning Laser On Press Power button on the laser keypad to turn on the DR100/G. Note the power button on the remote will not operate until the laser has been powered up from the keypad direct, the power button on the remote then acts as a standby button.
- Page 8 DR100 OPERATING INSTRUCTIONS cont. Grade Setting using alternate method Power up and let level as normal then press and hold (2 seconds) either the “UP” + or “DOWN” - button. This will change the grade value incrementally from the currently displayed value. To quickly reset the grade value back to 00.000 press the “UP”...
-
Page 9: Manual Mode
Manual Mode The DR100 continually self levels or continually retains the set grade during normal operation. The laser has a manual mode which disengages the self levelling mechanism. This mode can be useful when wanting to match a particular grade without knowing it numerically. To enter manual mode press and hold the “MODE/MAN”... - Page 10 DR100/G OPERATING INSTRUCTIONS cont. Using the Feet for Different Diameter Pipes The DR100 has a number of sets of legs of differing lengths and each set has a size printed on them which refers to the diameter size of the pipe you wish to use the laser inside of.
-
Page 11: Lock Keypad
Lock Keypad The DR100 features a keypack lock function which when activated prevents unwanted button presses. To activate this press the “ESC/LOCK” button and either of the “LEFT” or “RIGHT” buttons within one second to lock the arrow buttons. The LCD will display the following symbol. To unlock press the same sequence of buttons. - Page 12 GRADE CONVERSION CHART www.redbacklasers.com.au...
-
Page 13: Technical Specifications
Weight Calibration & Self Check All Redback Lasers have been checked for calibration and certified by one of our technicians here in Australia prior to despatch and should under normal conditions not go out of calibration. A calibration certified sticker with the date and name of technician is located on the laser itself. -
Page 14: Care And Maintenance
The DR100 is a precision instrument and should not be subjected to excessive knocks, drops or vibrations. • Self check calibration from time to time. See page 13 For service contact Redback Lasers. www.redbacklasers.com.au • Trouble Shooting - FAQ I have difficulty using the remote control! - Page 15 Notes www.redbacklasers.com.au...
- Page 16 Park, Victoria 3215 ph 1800 769 858 “You” or “Consumer” refers to the initial purchaser of the product. “Product” refers to goods manufactured by or for CMI Industries Pty Ltd under the brands of RedBack Lasers, Level1Laser and CMI Lasers.
