RedBack Lasers DA530L Instruction Manual

Red
Lasers
The DA530L is a dual use Digital Level and Digital Angle Measure, the DA530L also features a laser dot useful in inter-
nal fit out and levelling.
The DA530L can measure surface angles and indicate level on the left hand LCD display. On the right LCD display is
indicated the internal angle between the Angle Arm and base of the unit.
NOTE: "AA" and Button Cell Battery will need installing and then follow self-calibration methods over page.
Insert Batteries as indicated.

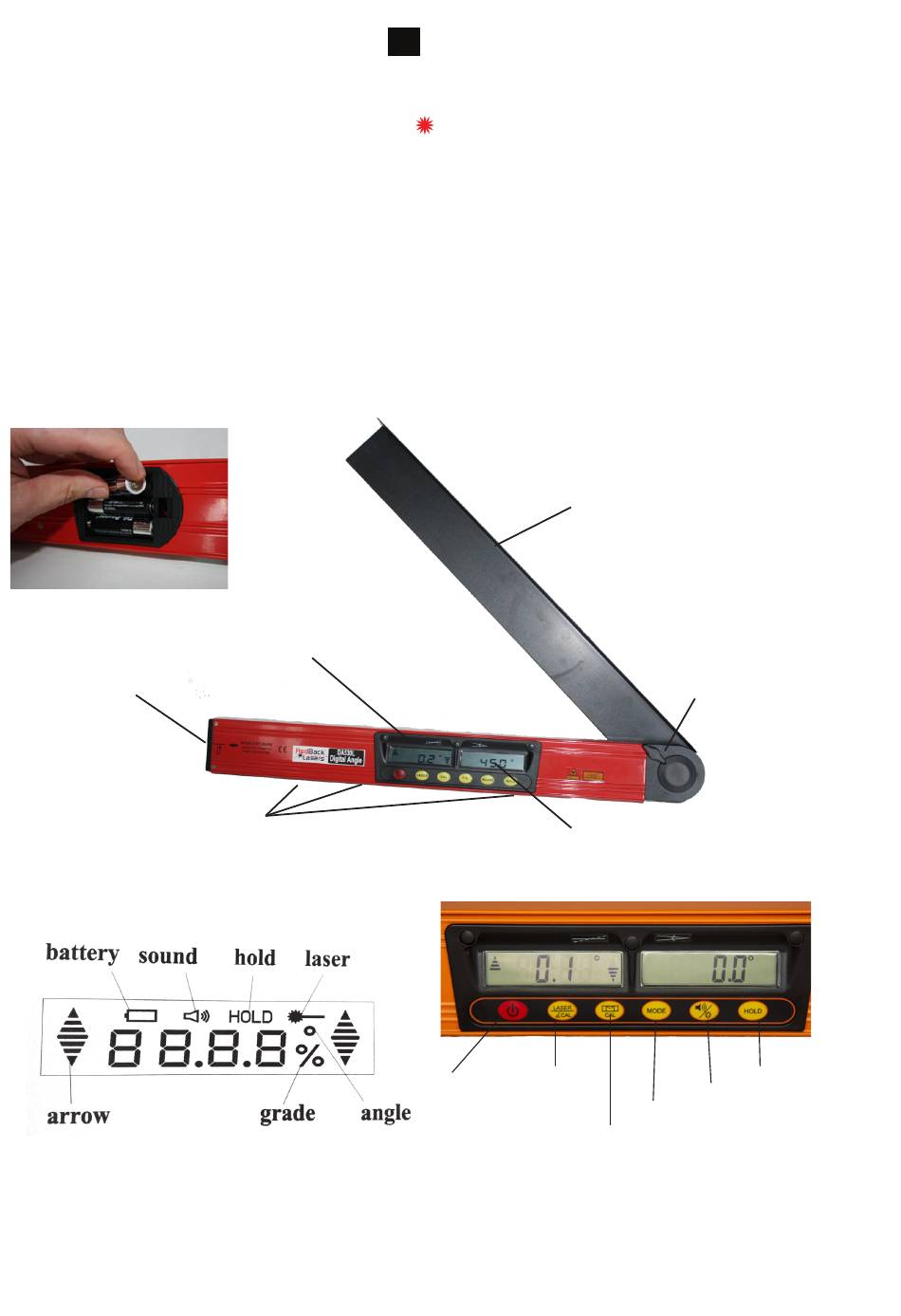

Laser Dot Output
Magnetic and Camera
Tripod Mount
Digital Level Display (left)
Power up the DA530L with the red On/Off button, the left LCD display will show the angle of a surface when placed
on it, 0.0, all four arrows and a sound will indicate level. When not level the arrows will indicate which direction the
unit needs moving to reach level.
The "Laser" button (short press) turns on and off the laser dot which runs parallel to the flat surfaces of the unit, this
can be used for levelling and other alignment needs. A long Press enables internal angle calibration (see reverse)
www.redbacklasers.com.au
Back
Instruction Manual
Digital Level LCD Display
DA530L
TM
Digital Angle
Internal Angle LCD Display
Laser On/Off /
Power On/Off
Angle Self Calibration
Level Self Calibration
Internal Angle Arm
Angle Arm Locking Screw
Sound On/Off
Degrees or % Display / Back Light
Measurement Hold
