RedBack Lasers XLG44 Instructions

Back
Red
Lasers

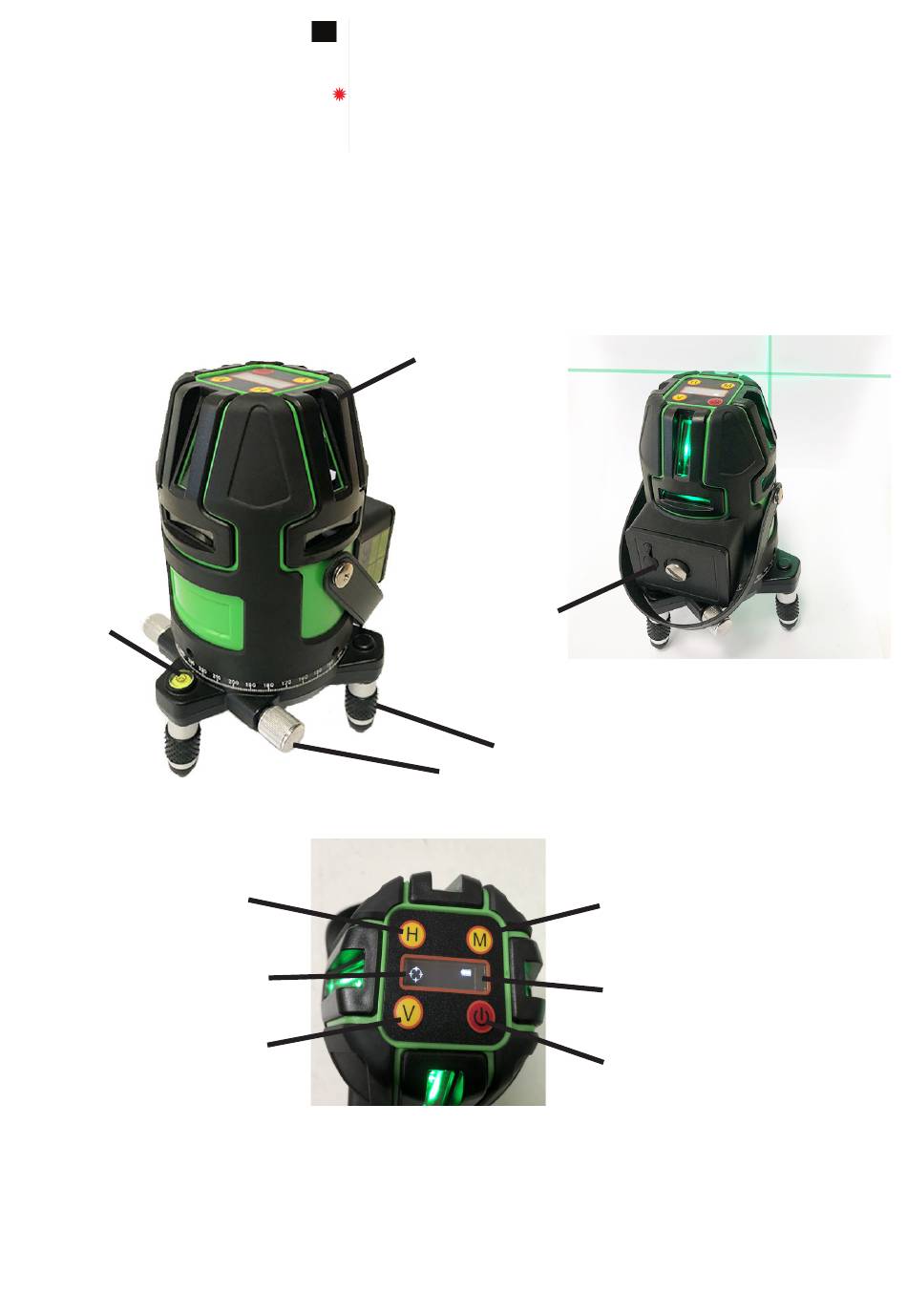

The XLG44 is an electronic self levelling multi cross line laser with green laser output. It features
4 vertical line and 4 horizontal lines plus a plumb dot down and additional in line dots for extra
visibility on the front vertical and horizontal lines. The XLG44 operates off a Li-ion rechargeable
battery or standard "AA" batteries and can be used with a OPTIONAL line receiver LLR705G.
Rough Levelling
Vial
LED Display & Control Panel
Horizontal
(each press toggles
through each of the 4 horizontal lines)
Display indicating which lines
are powered on
Vertical
(each press toggles through
each of the 4 vertical lines)
To operate first place either the Li-ion battery or "AA" battery holder complete with "AA" batteries
into the battery compartment and lightly tighten the screw.
Place the XLG44 laser on a surface and roughly level the unit using the adjustment feet and
bubble vial. This gets the laser into electronic self levelling range, you do not need to have the
bubble perfectly central for the laser to accurately self level.
DA530L
XLG44
TM
Digital Angle
Instructions
Rubberised Casing
Charging Port on Li-ion
Battery
Fine Adjustment for Vertical Alignment
Adjustable Levelling Feet
Pulse / Dim Mode
toggles through; Pulse for OPTIONAL
receiver, Dim for dull conditions and
back to normal visible mode)
Display also indicates Battery
power and Pulse/Dim Mode
Power Button
(each press
