RedBack Lasers DA530L Instruction Manual

Red
Lasers

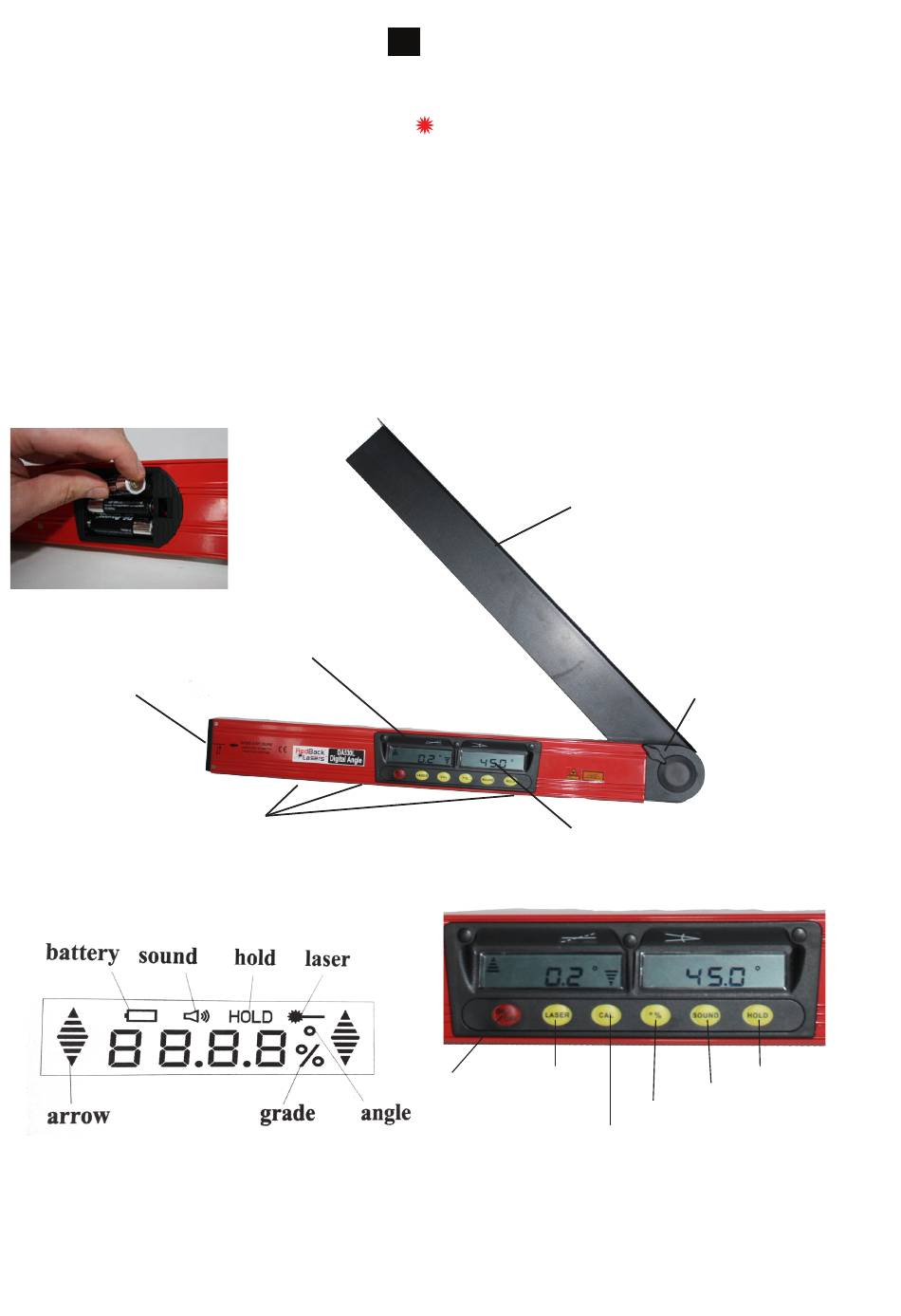

The DA530L is a dual use Digital Level and Digital Angle Measure, the DA530L also features a
laser dot useful in internal fit out and levelling.
The DA530L can measure surface angles and indicate level on the left hand LCD display. On the
right LCD display is indicated the internal angle between the Angle Arm and base of the unit.
Insert Batteries as indicated.

Laser Dot Output

Magnetic and Camera
Tripod Mount
Digital Level Display (left)
Power up the DA530L with the red On/Off button, the left LCD display will show the angle of a surface when placed
on it, 0.0, all four arrows and a sound will indicate level. When not level the arrows will indicate which direction the
unit needs moving to reach level.
The "Laser" button turns on and off the laser dot which runs parallel to the flat top and bottom surfaces of the unit,
this can be used for levelling and other alignment needs.
www.redbacklasers.com.au
Back
Instruction Manual
Digital Level LCD Display
DA530L
TM
Digital Angle
Internal Angle LCD Display
Laser On/Off
Power On/Off
Self Calibration

Internal Angle Arm

Angle Arm Locking Screw
Sound On/Off
Degrees or % Display
Measurement Hold
