Car-Interface CI-HDV-UCON10 Manual

CI-HDV-UCON10 / CI-HDA-UCON10

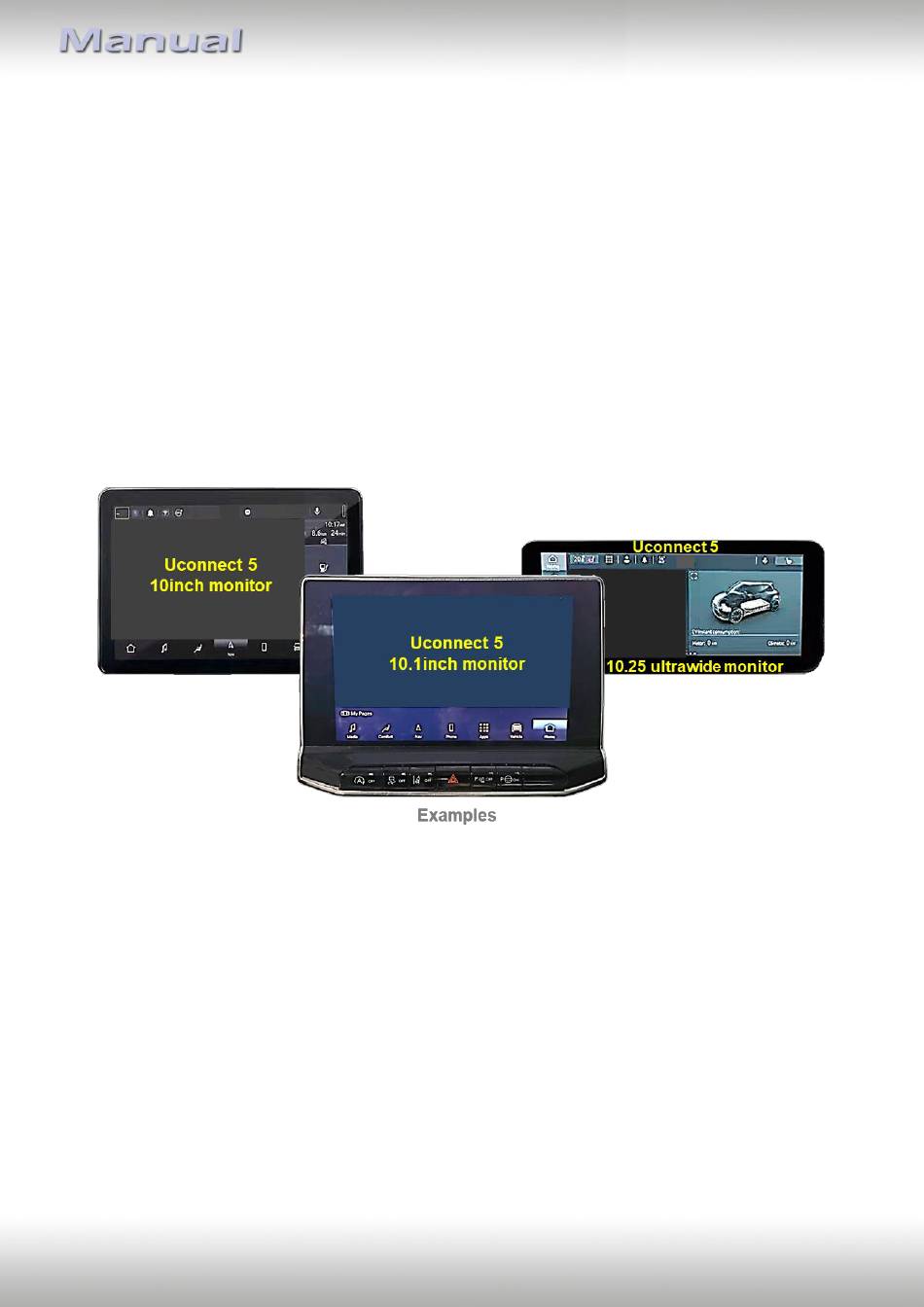

Fiat vehicles with Uconnect 5 infotainment
with 10inch or 10.25inch ultrawide monior
Jeep vehicles with Uconnect 5 infotainment
Alfa Romeo
Product features
 1 x CVBS/AHD-input for rear-view camera
 1 x CVBS/AHD-input for front camera
 2 x CVBS/AHD-input for side-cameras or additional after-market video-sources
(e.g., USB-device, DVB-T2 Tuner, etc.)
 All inputs NTSC and PAL compatible
Supported AHD resolutions 720p NTSC (30Hz), 720p PAL (25Hz), 960p NTSC (30Hz),
960p PAL (25Hz), 1080p NTSC (30Hz), 1080p PAL (25Hz)

HDV-UCON10 only:
(e.g., IOS/Android, laptop, streaming stick, DVD-Player, DVB-T2 Tuner, etc.)
Supported HDMI resolutions 720p NTSC (60Hz), 720p PAL (50Hz),
1080p NTSC (60Hz), 1080p PAL (50Hz)
 Automatic switching to rear-view camera input while reverse gear is engaged
 Automatic front camera switching after reverse gear for 5, 10, 15 or 20 seconds
 Adjustable guide lines (fixed or movable) can be activated for rear-view camera
(movable guide lines not available for all vehicles)
 Picture free during the car ride (only for inserted video-sources)
Version 25.07.2024
Video inserter
Compatible with
with 10.1inch monitor
vehicles with Connect infotainment
with 10.25inch monitor
1 HDMI-input for HD rear-view camera or additional HDMI-sources
from SW: GD V2.0/GW256 V1.0
Attention!
Video signal type of each video source
must be set in the OSD menu of the
corresponding video input,
if Auto Detection has no function.
CI-HDV-UCON10/CI-HDA-UCON10
