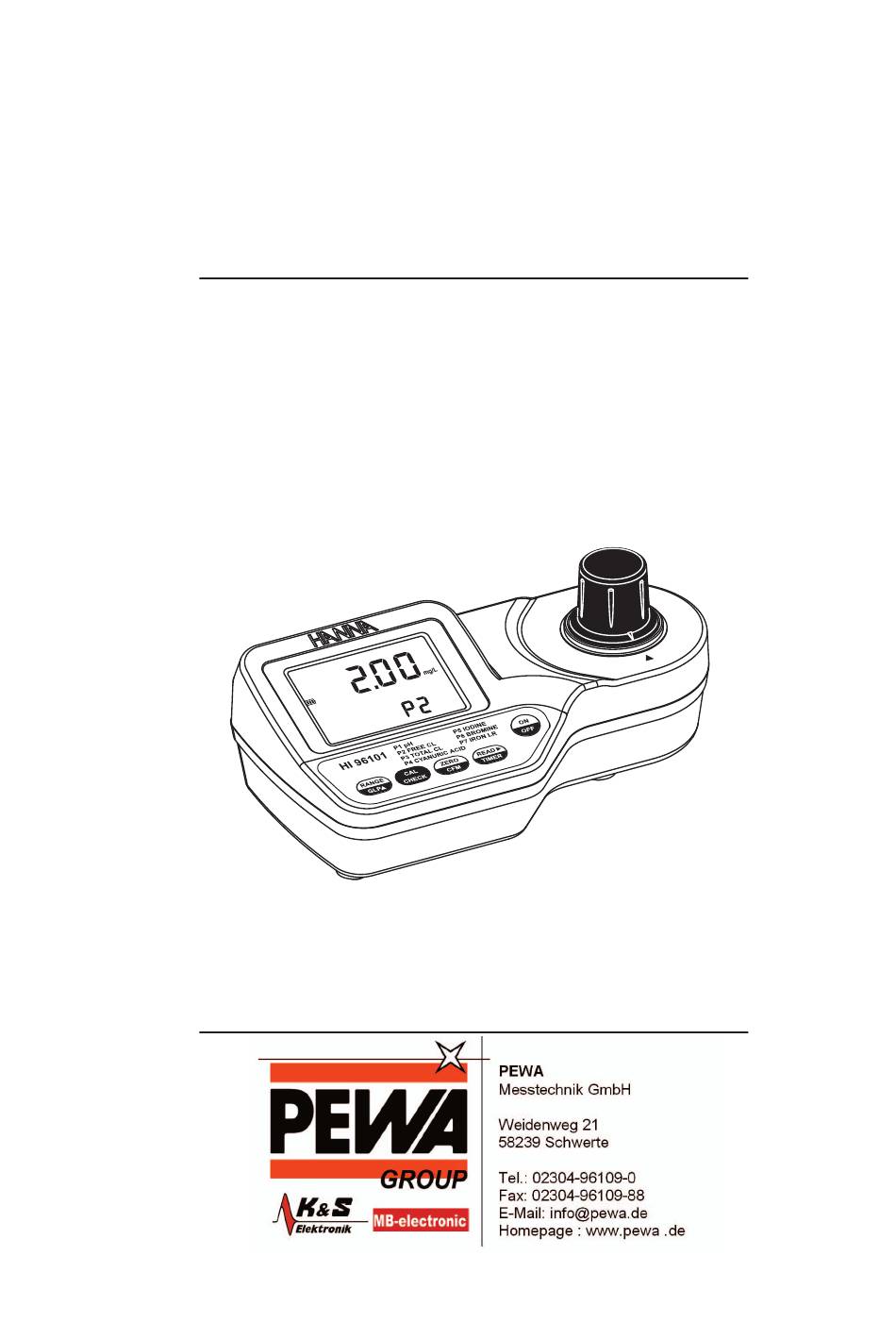

- Page 1 Instruction Manual HI 96101C pH, Chlorine, Cyanuric Acid, Iodine, Bromine, Iron LR w w w . h a n n a i n s t . c o m...
-
Page 2: Table Of Contents
Dear Customer, Thank you for choosing a Hanna product. This manual will provide you with the necessary information for the correct use of the instrument. Please read it carefully before using the meter. If you need additional technical information, do not hesitate to e-mail us at tech@hannainst.com. TABLE OF CONTENTS PRELIMINARY EXAMINATION .................... -
Page 3: Preliminary Examination
PRELIMINARY EXAMINATION Please examine this product carefully. Make sure that the instrument is not damaged. If any damage occurred during shipment, please notify your Dealer. Each HI 96101 Ion Selective Meter is supplied complete with: • Two Sample Cuvettes and Caps •... -
Page 4: General Description

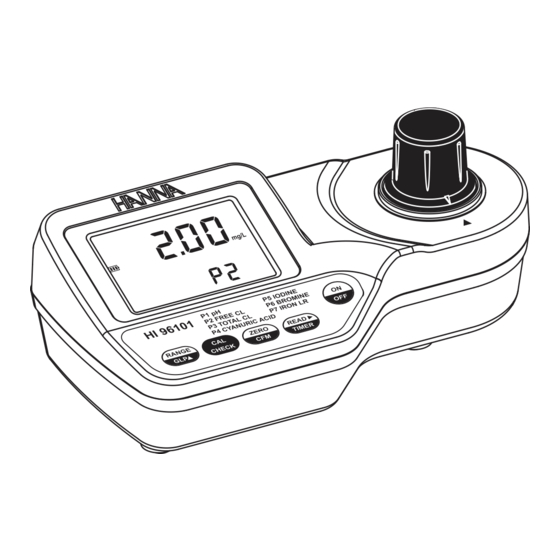

GENERAL DESCRIPTION The HI 96101 is an auto diagnostic portable microprocessor meter that benefits from Hanna’s years of experience as a manufacturer of analytical instruments. It has the advanced optical system based on a special tungsten lamp and a narrow band interference filter that allows most accurate and repeatable readings. -
Page 5: Abbreviations
ABBREVIATIONS °C: degree Celsius degree Fahrenheit °F: mg/L: milligrams per liter. mg/L is equivalent to ppm (parts per million) milliliter millivolts USEPA: US Environmental Protection Agency SPECIFICATIONS Range 6.5 to 8.5 pH Free Chlorine 0.00 to 5.00 mg/L Total Chlorine 0.00 to 5.00 mg/L Cyanuric Acid 0 to 80 mg/L... -
Page 6: Required Reagents
Light Source Tungsten lamp Light Detector Silicon Photocell with narrow band interference filter @ 525 nm For pH: Phenol red method. The reaction with reagents causes a red Methods tint in the sample. For Chlorine: Adaptation of the USEPA method and Standard Method 4500-Cl G. -
Page 7: Precision And Accuracy
PRECISION AND ACCURACY Precision is how closely repeated measurements agree with each other. Precision is usually expressed as standard deviation (SD). Accuracy is defined as the nearness of a test result to the true value. Although good precision suggests good accuracy, precise results can be inaccurate. -
Page 8: Principle Of Operation
PRINCIPLE OF OPERATION Absorption of Light is a typical phenomenon of interaction between electromagnetic radiation and matter. When a light beam crosses a substance, some of the radiation may be absorbed by atoms, molecules or crystal lattices. If pure absorption occurs, the fraction of light absorbed depends both on the optical path length through the matter and on the physical-chemical characteristics of the substance according to the Lambert-Beer Law: = ε... - Page 9 The photoelectric cell collects the radiation I that is not absorbed by the sample and converts it into an electric current, producing a potential in the mV range. The microprocessor uses this potential to convert the incoming value into the desired measuring unit and to display it on the LCD.
-
Page 10: Functional Description
FUNCTIONAL DESCRIPTION INSTRUMENT DESCRIPTION 1) RANGE/GLP/ 2) CAL CHECK key 3) ZERO/CFM key 4) READ/ /TIMER key 5) ON/OFF key 6) Liquid Crystal Display (LCD) 7) Cuvette alignment indicator 8) Cuvette holder KEYPAD DESCRIPTION • ON/OFF: to turn the meter on and off. •... - Page 11 DISPLAY ELEMENTS DESCRIPTION 1) The measuring scheme (lamp, cuvette, detector), appears during different phases of zero or reading measurement 2) Error messages and warnings 3) The battery icon indicates the charge state of the battery 4) The hourglass appears when an internal check is in progress 5) Status messages 6) The chronometer appears when the reaction timer is running 7) The month, day and date icons appear when a date is displayed...
-
Page 12: Errors And Warnings
ERRORS AND WARNINGS The instrument shows clear messages when erroneous condition appears. Messages are also displayed when the obtained values are outside expected range. The beeper is playing a beep on errors. a) on zero reading Light High: There is too much light to perform a measurement. Please check the preparation of the zero cuvette. - Page 13 Over Range: A flashing value of the maximum concentration indicates an over range condition. The concentration of the sample is beyond the programmed range: dilute the sample and re-run the test. c) during calibration procedure Standard Low: The standard reading is less than expected. Standard High: The standard reading is higher than expected.
-
Page 14: General Tips For An Accurate Measurement
GENERAL TIPS FOR AN ACCURATE MEASUREMENT The instructions listed below should be carefully followed during testing to ensure best accuracy. • Color or suspended matter in large amounts may cause interference, therefore these should be removed by treatment with active carbon and by prior filtration. •... -
Page 15: Startup
• It is important that the sample does not contain any debris. This would corrupt the reading. • Each time the cuvette is used, the cap must be tightened to the same degree. • Whenever the cuvette is placed into the measurement cell, it must be dry outside, and completely free of fingerprints, oil or dirt. -
Page 16: Range Selection
RANGE SELECTION The HI 96101 can measure pH when range P1 is selected, Free Chlorine when range P2 is selected, Total Chlorine when range P3, Cyanuric Acid when range P4, Iodine when range P5, Bromine when range P6, Iron LR when range P7 are selected. To change the active range follow the procedure: •... - Page 17 • When the beeper sounds briefly and the LCD displays dashes, the meter is ready. The blinking “ZERO” indicates that the instrument needs to be zeroed first. Note: Pay attention that the selected range is the one desired to run measurements. If not, change the range following the instructions from Range Selection.
-
Page 18: Free Chlorine Measurement
• Press READ/ /TIMER. The lamp, cuvette and detector icons will appear on the display, depending on the measurement phase. • The instrument directly displays the measured pH value on the Liquid Crystal Display. FREE CHLORINE MEASUREMENT • Fill the cuvette up to the mark with 10 mL of unreacted sample and replace the cap. - Page 19 • Replace the cuvette into the cuvette holder and ensure that the notch on the cap is positioned securely into the groove. Press and hold READ/ /TIMER for three • seconds. The display will show the countdown prior to measurement. An audible “beep”...
-
Page 20: Total Chlorine Measurement
TOTAL CHLORINE MEASUREMENT • Fill the cuvette up to the mark with 10 mL of unreacted sample and replace the cap. • Place the cuvette into the holder and en- sure that the notch on the cap is positioned securely into the groove. •... -
Page 21: Cyanuric Acid Measurement
• Alternatively, wait for 2 minutes and 30 seconds and just press READ/ /TIMER. In both cases, the lamp, cuvette and detector icons will appear on the display, depending on the measurement phase. • The instrument directly displays concentration in mg/L of total chlorine on the Liquid Crystal Display. - Page 22 • Fill a beaker up to the 25 mL mark with the sample, add the content of one packet of HI 93722-0 reagent and swirl gently to mix. This is the reacted sample. • Fill a second cuvette with 10 mL of the reacted sample, up to the mark, and replace the cap.
-
Page 23: Iodine Measurement
IODINE MEASUREMENT • Fill the cuvette with 10 mL of unreacted sample, up to the mark, and replace the cap. • Place the cuvette into the cuvette holder and ensure that the notch on the cap is positioned securely into the groove. •... -
Page 24: Bromine Measurement
• Alternatively, wait for 2 minutes and 30 seconds then just press READ/ /TIMER. In both cases, the lamp, cuvette and detector icons will appear on the display, depending on the measurement phase. • At the end of measurement, the instrument directly displays concentration in mg/L of iodine on the LCD. - Page 25 • Remove the cuvette. • Add the content of one packet of HI 93716-0 Bromine reagent. Replace the cap and shake gently for about 20 seconds to dissolve most of the reagent. • Replace the cuvette into the cuvette holder and ensure that the notch on the cap is positioned securely into the groove.
- Page 26 IRON LR MEASUREMENT 30" • Fill one graduating mixing cylinder up to the 25 mL mark with deionized water. 2 5 m L 2 5 m L 2 5 m L 2 5 m L 2 5 m L • Add the content of one packet of HI 93746-0 TPTZ reagent, close the cylinder and shake vigorously for 30 seconds.
- Page 27 • Place the cuvette into the cuvette holder and ensure that the notch on the cap is positioned securely into the groove. • Press and hold READ/ /TIMER for three seconds. The display will show the countdown prior to measurement. An audible “beep” indicates the end of the countdown period.
-
Page 28: Validation Procedure
VALIDATION PROCEDURE Use the validation procedure to ensure that the instrument is properly calibrated. Warning: Do not validate the instrument with any standard solutions other than the Hanna CAL CHECK Standards, otherwise erroneous results will be obtained. Note: The validation is performed only for the selected parameter. For full validation of the instrument, the following procedure must be performed for each parameter. -
Page 29: Calibration Procedure
The reading should be within specifications as reported in the CAL CHECK Standard Certificate. If the value is found out of the specifications, please check that the cuvettes are free of fingerprints, oil or dirt and repeat validation. If results are still found out of specifications, then recalibrate the instrument. -
Page 30: Date Input
• Place the corresponding CAL CHECK Standard Cuvette B into the cuvette holder: pH: B, HI 96710-11 Free Chlorine: B, HI 96701-11 Total Chlorine: B, HI 96711-11 Cyanuric Acid: B, HI 96722-11 Iodine: B, HI 96718-11 Bromine: B, HI 96716-11 Iron LR: B, HI 96746-11 Ensure that the notch on the cap is positioned securely into the groove. - Page 31 • Press RANGE/GLP/ to edit the desired month (01-12). If the key is kept pressed, the month number is automatically increased. • When the correct month has been set, press ZERO/CFM or READ/ /TIMER to confirm. Now the display will show the day blinking. •...
-
Page 32: Glp
In the GLP mode, the last user calibration date can be verified and the factory calibration can be restored. LAST CALIBRATION DATE To display the calibration date: • Press and hold for three seconds RANGE/GLP/ to enter GLP mode . For the selected range the calibration month and day will appear on the main display and the year on the secondary display. -
Page 33: Battery Management
BATTERY MANAGEMENT To save battery, the instrument shuts down after 10 minutes of non-use in measurement mode and after 1 hour of non-use in calibration mode. If a valid measurement was displayed before auto-shut off, the value is displayed when the instrument is switched on. -
Page 34: Accessories
ACCESORIES REAGENT SET HI 93701-01 Reagents for 100 free chlorine tests HI 93701-03 Reagents for 300 free chlorine tests HI 93710-01 Reagents for 100 pH tests HI 93710-03 Reagents for 300 pH tests Reagents for 100 total chlorine tests HI 93711-01 HI 93711-03 Reagents for 300 total chlorine tests HI 93716-01... -
Page 35: Warranty
WARRANTY HI 96101 is warranted for two years against defects in workmanship and materials when used for its intended purpose and maintained according to the instructions. This warranty is limited to repair or replacement free of charge. Damages due to accident, misuse, tampering or lack of prescribed maintenance are not covered. If service is required, contact your dealer.
