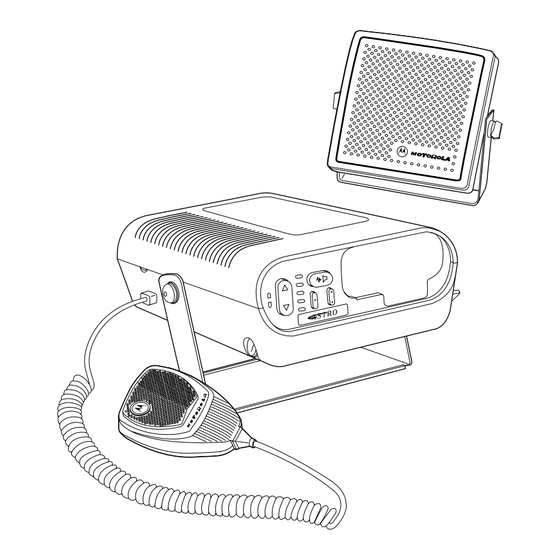

Motorola ASTRO SABER VEHICULAR ADAPTER Maintenance Manual

Motorola ASTRO SABER VEHICULAR ADAPTER Maintenance Manual

Service and theory

Advertisement

Quick Links

*6881078C25*
Motorola Inc.
Radio Products Group
8000 W. Sunrise Blvd.
Ft. Lauderdale, FL 33322-9934
68P81078C25-O
TM
ASTRO /SABER
Vehicular Adapter
Service and Theory/Maintenance Manual
TM

Advertisement

loading
Need help?

Need help?

Do you have a question about the ASTRO SABER VEHICULAR ADAPTER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Motorola ASTRO SABER VEHICULAR ADAPTER

  • Page 1 ASTRO /SABER Vehicular Adapter Service and Theory/Maintenance Manual *6881078C25* Motorola Inc. Radio Products Group 8000 W. Sunrise Blvd. Ft. Lauderdale, FL 33322-9934 68P81078C25-O...
  • Page 2: Table Of Contents

    AVA User’s Guide ............................68P81078C15 12-Watt Speaker ...............................68P81108C39 Reducing Noise Interference in Mobile Radios ....................68P81109E33 , Motorola, ASTRO, SABER, Systems SABER, SECURENET, Handie-Talkie, Private-Line, and Digital Private-Line are trademarks of Motorola Inc. © 1995 by Motorola Inc. Service and Theory/Maintenance Manual Radio Products Group 8000 W.
  • Page 3: Specifications

    SPECIFICATIONS UNIT CAPACITY: One ASTRO Digital SABER Portable Radio (manufactured on or after September 1, 1994); or One SABER I, II, or III Portable Radio (manufactured on or after September 1, 1994); or One Systems SABER I or III Portable Radio (manufactured on or after September 1, 1994) DIMENSIONS (L x H x W): 9.85"...
  • Page 4: Description

    DESCRIPTION GENERAL 2. CONSOLE The Motorola ASTRO/SABER Vehicular Adapter (AVA) is The NTN7227A Console is the vehicular adapter’s central an accessory designed to adapt one of the following portable unit. The console includes an illuminated front control radios for mobile operation:...
  • Page 5: Installation Planning

    INSTALLATION 1. INSTALLATION PLANNING WARNING a. General For vehicles with electronic anti-skid braking systems, refer to Before starting the installation, determine the location of the the “Anti-Skid Braking Precautions” section of this manual. console, microphone, and 12-watt speaker. Also, check the mounting penetrations required.
  • Page 6: Console Installation

    CONSOLE INSTALLATION 3. MICROPHONE BRACKET INSTALLATION Referring to Figure 1, install the console using the following Referring to Figure 2, use the microphone mounting bracket procedure, or modify the procedure as necessary to conform as a template and drill two 1/8-inch holes. Attach the micro- to the vehicle type: phone bracket to the mounting surface with the two self-tap- ping screws provided.
  • Page 7: Antenna Installation

    The RF connector (J3) on the AVA console is a mini- CAUTION UHF jack, and must be mated with either a mini-UHF plug (P3) or a UHF-to-mini-UHF adapter (Motorola It is not good practice to connect the black lead to the part number 5880367B22).
  • Page 8: Anti-Skid Braking Precautions

    TECHNICAL PUBLICATIONS DEPT. DESCRIPTION DWG. NO. AVA CONSOLE MAEPF-24630 INTERCABLING DETAIL ILLUSTRATOR DATE ENGINEER DATE PROGRAM DISK CHECK 4/28/94 Illustrator 4/26/94 O.K. AS IS EDITOR DATE CHECKER DATE CORRECTED O.K. AS MARKED 4/29/94 GREEN MARKED TO HEADLIGHTS ISS. REVISION RLSE. RLSE.
  • Page 9: Installation Checkout

    Check for proper operation of the console, microphone, is stationary. Press your foot on the brake pedal speaker, and radio as described in the user’s guide, Motorola with just enough pressure to keep the vehicle from publication 68P81078C15. Before placing the radio in the moving.
  • Page 10: Theory Of Operation

    RF connectors. This makes control of all the basic radio functions available to the AVA. The hand- The Motorola ASTRO/SABER Vehicular Adapter (AVA) is held microphone, external speaker, and rooftop antenna are designed to work in conjunction with only an ASTRO...
  • Page 11 Battery Charger Circuitry The microcomputer compensates for current consumed by the radio while the radio is in standby or receive modes. Operating A+ for the console is obtained from a 13.8-volt When the microcomputer senses the presence of a radio in source, such as a car battery.
  • Page 12: Maintenance

    MAINTENANCE PREVENTIVE MAINTENANCE (2) Referring to the “Disassembly/Reassembly Procedures” (paragraph d) in the “CORRECTIVE MAINTE- Periodic Inspections NANCE” section of this manual, disassemble the unit Slow degradation of equipment performance, if left uncor- for cleaning. rected, can lead to costly equipment downtime and repair. (3) Clean the external surfaces of the console using the rec- Preventive maintenance (PM) differs from corrective main- ommended cleaning agent.
  • Page 13: Corrective Maintenance

    This MAV-PACK is strongly recommended for technicians general problem area of the AVA is identified, careful use of who intend to service this and other Motorola products a dc voltmeter, ohmmeter, and/or oscilloscope should help using leadless components. This VHS videotape is in stan- isolate the problem to a defective component.
  • Page 14 d. Disassembly/Reassembly Procedures Refer to the exploded view, exploded view parts list, and Figure 8 for steps f through j. (1) Disassembly Procedure (e) Locate the two ribbon cables (one originates at the front Disassemble the console by performing the following proce- housing assembly, and the other originates at the uni- dure: versal connector assembly), and follow them to their...
  • Page 15 Refer to the exploded view and exploded view (2) Reassembly Procedure parts list for the remaining disassembly steps. Reassemble the console by reversing the disassembly proce- (j) Remove the transistor clip by sliding the bottom of the dure. Pay particular attention to the reassembly information clip toward the heat fins and lifting upward on the clip.
  • Page 16 The AVA uses bonded multi-layer printed circuit boards. parts lists for the correct Motorola part number. Order the Since the inner layers are not accessible, some special con- part from the nearest Motorola Communications Parts office siderations are required when soldering and unsoldering as listed under "Replacement Parts Ordering"...
  • Page 17 NOTES...
  • Page 18: Exploded View And Parts List

    Exploded View Parts List TPLF-4215-O ITEM MOTOROLA PART NO. DESCRIPTION 3305183R19 LABEL 1505159T01 HOUSING, Top 1505157T01 HOOD, AVA 0105951T05 ASSEMBLY, Front Housing 3305409X09 LABEL 0105951T22 ASSEMBLY, RF Connector (part of item 8) 0905925S03 FLEX (part of item 8) 0105951T01 ASSEMBLY, Universal Connector...
  • Page 19: Replacement Parts Ordering

    MAIL ORDERS Send written orders to the following addresses: International Orders: Replacement Parts/ Federal Government Orders: Test Equipment/Manuals Motorola Inc. Crystal Service Items: Motorola Inc. Americas Parts Division Americas Parts Division Motorola Inc. Attention: International Order Processing...
