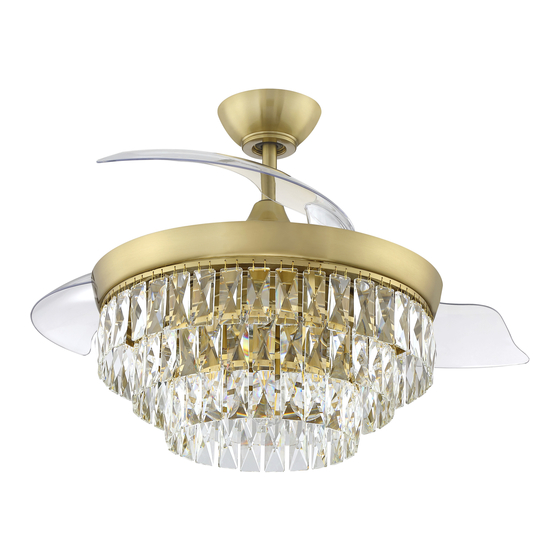

Sofia

Installation Guide

For Model:

SOF42

Remote control

and receiver are

pre-programmed.

net weight of fan: 28.66 lb (13 kg)

Need help?

Do you have a question about the Sofia SOF42 and is the answer not in the manual?

Questions and answers

Summary of Contents for Craftsman Sofia SOF42

Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Sofia Installation Guide For Model: Table of Contents: SOF42 Safety Tips. pg. 3 Unpacking Your Fan. pg. 4 Parts Inventory. pg. 4 Installation Preparation. pg. 5 Remote control Hanging Bracket Installation. pg. 5 and receiver are Fan Assembly.
Page 2 Activating Your New Smart Fan; Downloading the Bond Home App • Using your smart device, navigate to the application store (Apple App store or Google Play), download the free Bond Home app and create account. • Ensure the fan and receiver are receiving power from the house supply using the remote control to turn the fan and light ON and OFF.
Page 3: Safety Tips
SAFETY TIPS. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS. WARNING • To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin fan installation or before servicing the fan or installing accessories.
Page 4: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor assembly and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs. Check against parts inventory that all parts have been included.
Page 5: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, ensure that inches the hanging location allows the blades a clearance of 7 feet (76 cm) 7 feet (2.13m) from the floor and 30in. (76 cm) from (2.13 m) the outer edge of the fan and any wall or obstruction.
Page 6: Fan Assembly. Pgs
5. Fan Assembly. set screw stop pin Remove hanging ball from downrod provided by loosening set screw on hanging ball. Remove pin and clip. Lower hanging ball and remove stop pin. hanging ball Then slide hanging ball off downrod. [Refer to diagram 1.] Remove vice from safety cable by loosening the diagram 1...
Page 7 5. Fan Assembly. (cont.) safety cable loop With the hanging bracket secured to the wood outlet box and able to support the fan, ceiling you are now ready to hang your fan. joist Grab the fan firmly with two hands. wood screw and washer Slide downrod through opening in...
Page 8: Wiring
6. Wiring. WARNING: Turn off circuit breakers to current fixture from breaker panel and be white supply wire sure switch is turned to the OFF position. ground (green black supply wire or bare) CAUTION: Be sure outlet box is properly grounded and that a ground wire (GREEN or ground (green/bare) Bare) is present.
Page 9: Canopy Assembly
7. Canopy Assembly. antenna Locate 2 screws on underside of hanging bracket and remove screw closest to the open hanging bracket end of the hanging bracket. Partially loosen the other screw. Lift canopy to hanging bracket. Place rounded part of slotted hole in screw canopy over loosened screw in hanging bracket and push up.
Page 10: Automated Learning Process./Activating Code
9. Automated Learning Process./Activating Code. CAUTION: The remote control can be programmed to multiple receivers or fans. If this is not desired, turn wall switch off to any other programmable receiver or fan. LEARN button Remove battery cover on back side of remote control transmitter.
Page 11: Remote Control Operation
10. Remote Control Operation. REMOTE CONTROL Fan POWER button--1: Use to turn the fan off Fan SPEED buttons--2: Use to control ceiling fan speeds 1-6 Fan BREEZE button--3: Use to automatically cycle fan between all speeds Fan TIMER button--4: Use to turn the fan timer to one, three or six hours REVERSE function button--5: Use to control fan direction...
Page 12: Testing Your Fan
11. Activating Your Ceiling Fan Smart Features. (cont.) 9. Specify information about your fan: -Select “Location” and choose from one of the predefined entries or add your own by selecting “OTHER”. When finished, select “Save”. - Select device name and enter the name for your device. When finished, select “OK” to save. PLEASE NOTE: The name you inform will be used by voice assistants (such as Google Assistant, Amazon Alexa, and others) so a simple, easy-to-remember name is optimal.
Page 13: Troubleshooting
Troubleshooting. Warranty. WARNING: Failure to disconnect power supply prior to CRAFTMADE LIMITED LIFETIME WARRANTY: troubleshooting any wiring issues may result in serious CRAFTMADE warrants this fan for use as intended injury. under the following provision: CRAFTMADE will replace any fan which has faulty performance due to a Problem: Fan fails to operate.
