Software and documents related to this product can be viewed on the following
website.
You must read the Usage and Safety Precautions before use.
© 2024 ZOOM CORPORATION
Copying or reprinting this manual in part or in whole without permission is prohibited.
You might need this manual in the future. Always keep it in a place where you can access it easily.
The contents of this manual and the specifications of the product could be changed without notice.
Proper display is not possible on grayscale devices.

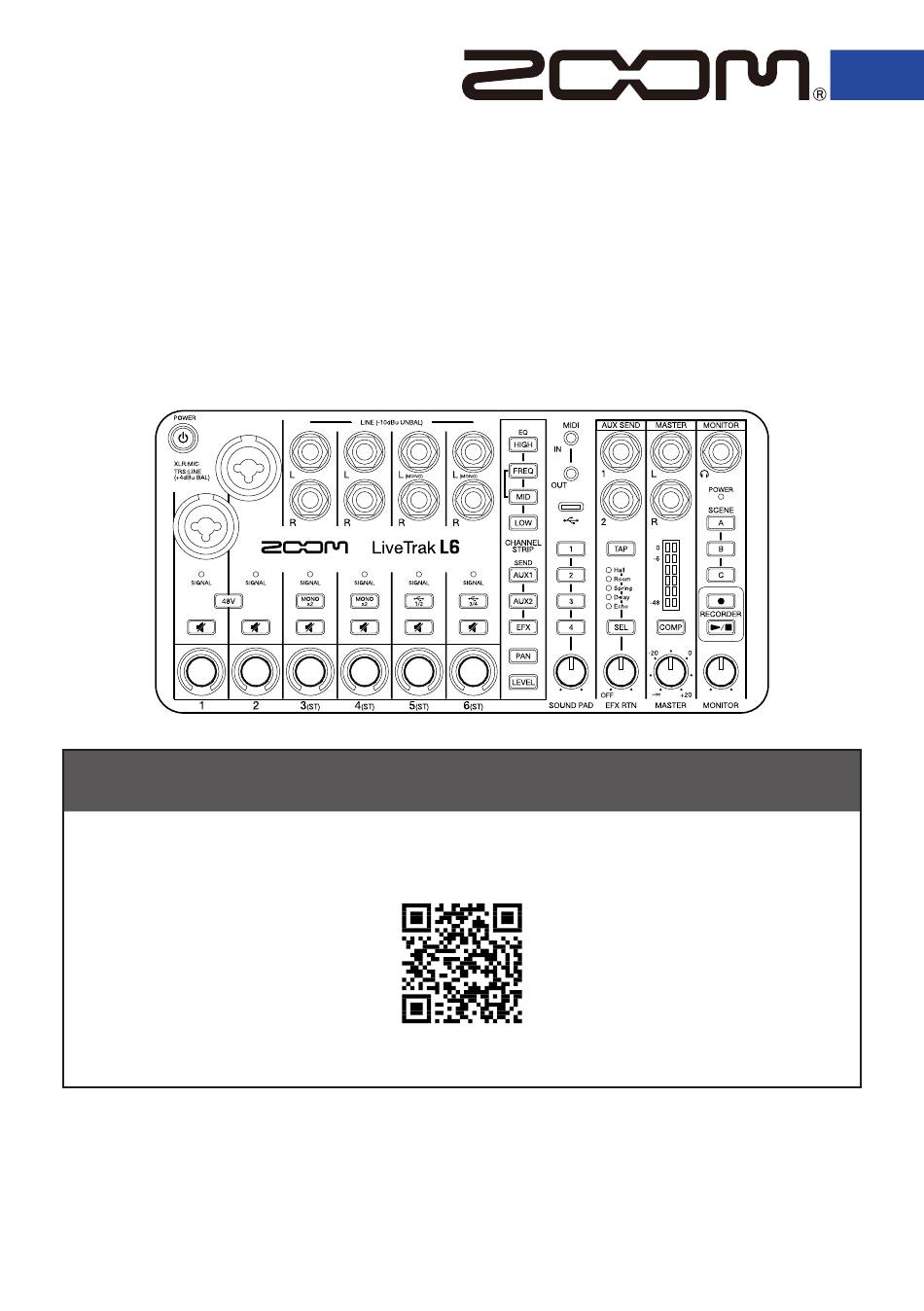

L6
LiveTrak
Quick Tour
zoomcorp.com/help/l6

Advertisement

loading
Need help?

Need help?

Do you have a question about the LiveTrak L6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zoom LiveTrak L6

Summary of Contents for Zoom LiveTrak L6

  • Page 1 You must read the Usage and Safety Precautions before use. © 2024 ZOOM CORPORATION Copying or reprinting this manual in part or in whole without permission is prohibited. You might need this manual in the future. Always keep it in a place where you can access it easily.

  • Page 2: Inserting Microsd Cards

    We recommend using microSD cards that have been confirmed to operate with this recorder. See the ZOOM website (zoomcorp.com/help/l6) for information about microSD cards that have been confirmed to work with this unit. • Always turn the power off before inserting or removing a microSD card.
  • Page 3 Starting up █ Formatting the microSD card while starting up Always format microSD cards in order to maximize their performance after purchasing them new or using them with a different device. While pressing , press and hold This formats the microSD card. All data previously saved on a microSD card will be deleted when it is formatted.

  • Page 4: Making Connections

    Making connections █ Connecting mics and instruments Synthesizer Connect synthesizers, samplers, effects and similar equipment to channels 3 – 6. Synthesizer Use cables and adapters so line level devices connect to the TRS plugs on the L6. Condenser mic Dynamic mic Connect dynamic and condenser mics using the XLR plugs.
  • Page 5 █ Connecting powered monitors and headphones Headphones Powered monitors or PA system To prevent noise and mal- function, connect powered monitors before turning the power on.
  • Page 6 Adjusting levels, tone and panning █ Adjusting level, tone and panning for each channel Press one so it lights. Turn to adjust. Use these to adjust the boost/cut amount for high, mid and low frequencies. to adjust the middle frequency of the mid band (100 Hz – 8 kHz). to adjust the levels sent to the AUX SEND jacks.
  • Page 7 █ Adjusting output levels Adjust the MASTER and MONITOR (headphone) output levels. Press to light it, increasing the sound pressure output from the MASTER L/R output jacks while preventing clipping.

  • Page 8: Using Internal Effects

    Using internal effects Press to select an effect. Turn to adjust the level. Set the levels sent to the effect from each channel beforehand. The tempo used for Delay Echo can be set by repeatedly pressing at a regular interval.
  • Page 9 Using sound pads Press SOUND PAD – to play sounds assigned to the pads. The L6 can be used to record sounds to – █ Recording sounds to sound pads While pressing , press – The button will blink rapidly and the MASTER output sound will start being recorded.
  • Page 10 █ Playing sound pads Press to play the sound. The sound will begin playing and the button will blink slowly. Loop playback will be used by default. Press again to stop the sound. Turn to adjust the level. By connecting the L6 to a computer and using the L6 Editor app, sound files can be assigned to the sound pads and playback methods and levels can be set for each of them.

  • Page 11: Using Scenes

    Using scenes L6 mixer settings can be saved as scenes to SCENE – for recall at any time. █ Saving scenes Press and hold. After blinking briefly, the button will light and the mixer settings will be saved. Saved and selected (lit brightly) Saved but not selected (lit dimly) Not saved (unlit) The button will blink if mixer settings are changed after a scene has been selected.
  • Page 12 █ Recalling scenes Briefly press a button that has settings saved (lit dimly).

  • Page 13: Starting And Stopping Playback

    Stopping and starting recording Use the L6 Editor app to set the date and time of the L6. ( →  “L6 Editor application for com- puters”) The date and time set this way will be added to the name of the folder where recording files are saved.

  • Page 14: Functions Of Parts

    Functions of parts █ Input section ① Power switch ③ INPUT 3 and 4 jacks This turns the power on/off. Connect synthesizers, samplers and ② INPUT 1 and 2 jacks effects, for example, here. These support 1/4-inch phone (unbalanced TS) plugs. Connect mics and instruments to these.
  • Page 15 █ Channel section ① SIGNAL indicator ⑥ USB 1/2 and 3/4 buttons When being used as an audio interface, This lights green when a signal is being input and lights red when a signal clips. press these to light them and input audio ②...
  • Page 16 ⑪ PAN button █ SOUND PAD section Press this to light it, enabling adjustment of the left-right stereo position of the channel. ⑫ LEVEL button Press this to light it, enabling adjustment of the channel level. █ MIDI/USB section ① SOUND PAD 1 – 4 buttons Audio files can be assigned to the pads and played back by pressing them.
  • Page 17 ④ EFX RTN knob █ Master section This adjusts the internal effect volume. █ Output section ① AUX SEND 1/2 jacks ① Master level meters External effects, for example, can be connected here. This supports TRS These show the levels output from the MASTER L/R output jacks in a range plugs.
  • Page 18 █ Right side ① microSD card slot ② USB power port (Type-C) Insert a microSD card here. An AC adapter (AD-17) or portable bat- tery can be connected to this USB power port. █ Bottom ① Openings for connecting a Eurorack ②...

  • Page 19: Other Functions

    Other functions █ L6 Editor application for computers This app can be used to make various L6 settings, including for the sound pads, date and time, and Auto Power Off function. It can also be used to transfer files to the computer. See the Operation Manual for details.

  • Page 20: Precautions When Using Batteries

    Precautions when using batteries Take the following precautions to prevent leakage when using batteries. Do not use batteries if their covers are coming off or their exteriors are damaged. Do not mix batteries of different types or made by different manufacturers. Do not use new and old batteries together.

  • Page 21: Troubleshooting

    Recording from copyrighted sources, including CDs, records, tapes, live performances, video works and broadcasts, without per- mission of the copyright holder for any purpose other than personal use is prohibited by law. Zoom Corporation will not assume any responsibility related to infringements of copyrights.
