You must read the Usage and Safety Precautions before use.
The Operation Manual can be downloaded from the ZOOM website (www.zoom.jp/docs/l-20r).
This page has files in PDF and ePub formats.
The PDF file format is suitable for printing on paper and reading on a computer.
The ePub format can be read with electronic document readers and is designed for reading on
smartphones and tablets.
© 2019 ZOOM CORPORATION
Copying or reprinting this manual in part or in whole without permission is prohibited.
Product names, registered trademarks and company names in this document are the property of their respective com-
panies.
You might need this manual in the future. Always keep it in a place where you can access it easily.
The contents of this manual and the specifications of the product could be changed without notice.
Quick Guide
Advertisement
Table of Contents
Related Manuals for Zoom LiveTrak L-20R
Summary of Contents for Zoom LiveTrak L-20R
- Page 1 Quick Guide You must read the Usage and Safety Precautions before use. The Operation Manual can be downloaded from the ZOOM website (www.zoom.jp/docs/l-20r). This page has files in PDF and ePub formats. The PDF file format is suitable for printing on paper and reading on a computer.
-
Page 2: Product Overview
Recording from copyrighted sources, including CDs, records, tapes, live performanc- es, video works and broadcasts, without permission of the copyright holder for any purpose other than personal use is prohibited by law. Zoom Corporation will not as- sume any responsibility related to infringements of copyrights. - Page 3 Equipment connection example This example shows live PA system connections. Front Zoom wireless adapter Zoom wireless adapter (e.g. BTA-1) (e.g. BTA-1) iPad iPad Operator Operator headphones headphones Computer Computer (recording and playback) (recording and playback) Back Powered speakers Powered speakers...
-
Page 4: Names Of Parts

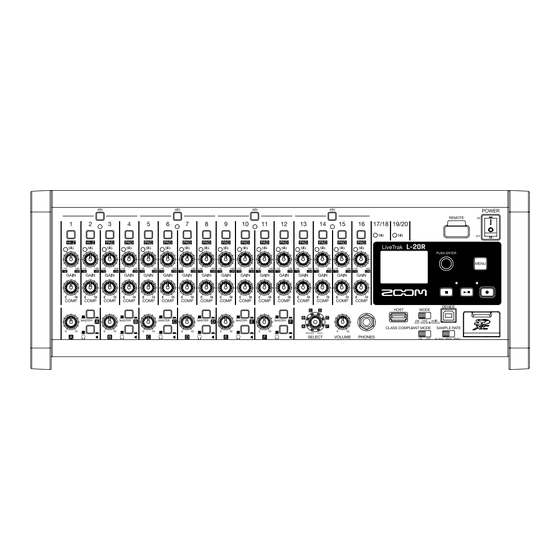

Names of parts Front Input channel section Display section Monitoring section Input channel section Hi-Z switch 48V switch/indicator PAD switch SIG indicator GAIN knob COMP knob Hi-Z switch Use to switch the input impedance of MIC/LINE input jack 1 (or 2). 48V switch/indicator This turns 48 V phantom power on or off. -
Page 5: Monitoring Section
Monitoring section MONITOR OUT knob MONITOR OUT switch PHONES jack VOLUME knob SELECT knob MONITOR OUT PHONES/SPEAKER switch MONITOR OUT knob Use to adjust the volume of the signal output from the MONITOR OUT jacks. MONITOR OUT switch This switches the signal output from the MONITOR OUT jacks. MASTER ( ): The signal after adjustment by the master fader will be output. -
Page 6: Display Section
CLASS COMPLIANT MODE switch SAMPLE RATE switch REMOTE jack A Zoom wireless adapter (e.g. BTA-1) can be connected here. POWER switch This turns the unit on and off. Switch to I to turn the power on. Switch to to turn the power off. - Page 7 DC IN 12V AC adapter connector LINE input jacks (RCA) CONTROL IN connector A footswitch (ZOOM FS01) can be connected here. The footswitch can be assigned to one function: starting/stopping recorder playback, manually punching in/out or muting/unmuting the built-in effect.
- Page 8 Pairing beforehand is necessary to use an iPad for control. NOTE Install the dedicated L-20 Control app on the iPad before connecting. While the is off, connect a Zoom wireless adapter (e.g. BTA-1) Turn the power on. NOTE Confirm that the output devices connect- ed to the are turned off.
-
Page 9: Setting The Date And Time
Setting the date and time The first time you turn the power on after purchase, you must set the date/time. Press Select SYSTEM > DATE/TIME. Move cursor: Turn Confirm: Press Set the date and time. Move cursor or change value: Turn Select item/confirm change: Press Press... - Page 10 Firmware You can check the firmware version and update it to the latest version. Operation from By connecting a Zoom wireless adapter (e.g. BTA-1) an iPad and using the L-20 Control app, operation from an iPad is possible. See the Operation Manual for details.
-
Page 11: Specifications
Specifications Input and Inputs Mono (MIC/LINE) output Stereo (LINE) channels Outputs MASTER OUT MONITOR OUT PHONES Inputs Mono Type XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT) (MIC/LINE) Input gain PAD OFF: +16 – +60 dB PAD ON: −10 – +34 dB Hi-Z ON: +6 –... - Page 12 ZOOM CORPORATION 4-4-3 Kanda-surugadai, Chiyoda-ku, Tokyo 101-0062 Japan www.zoom.co.jp Z2I-3681-02...
