Summary of Contents for Envisiontec Ultra 3SP

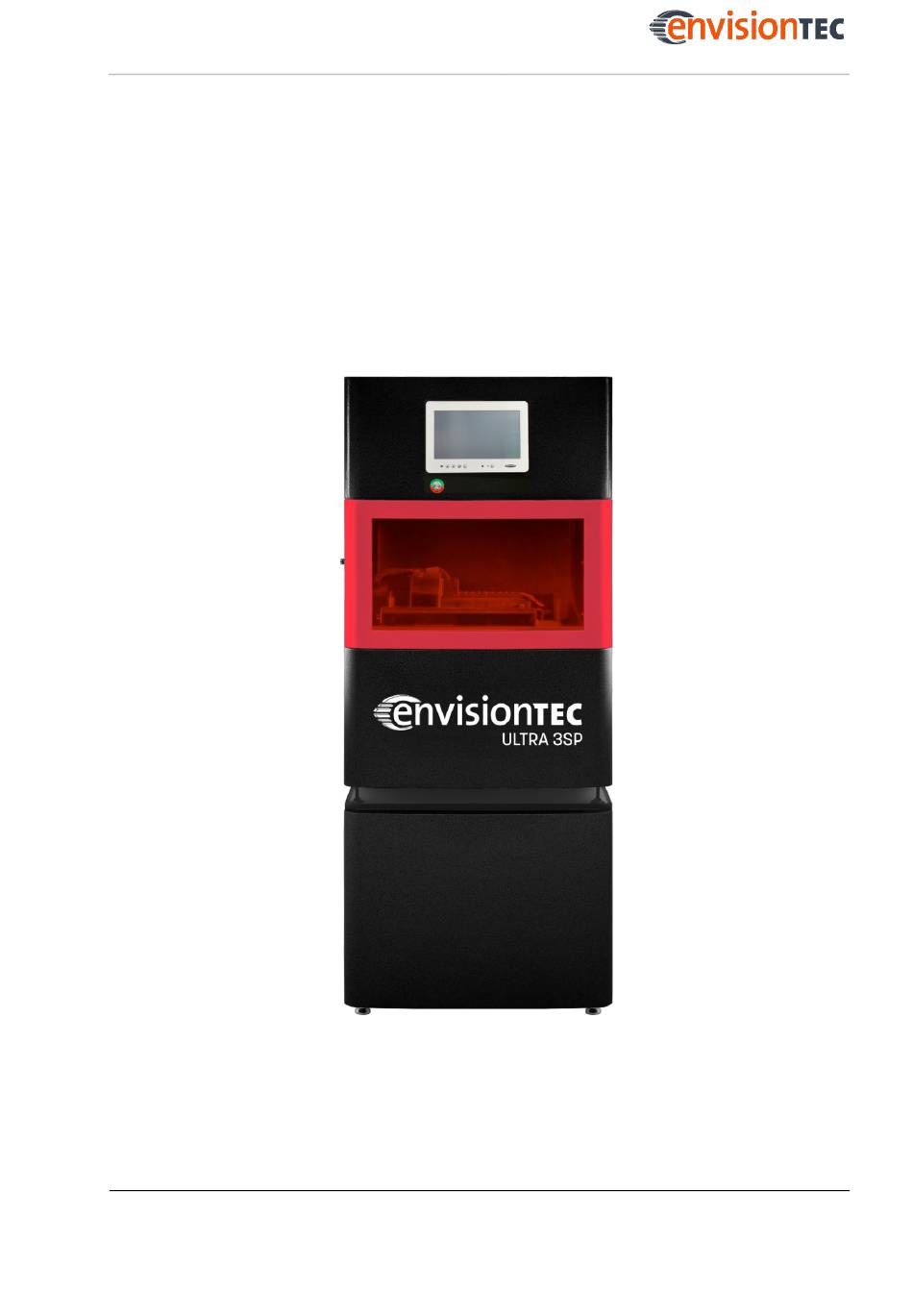

- Page 1 Instruction Manual Original Instructions Ultra® 3SP™ Keep for further reference! EnvisionTEC GmbH Brüsseler Str. 51 45968 Gladbeck Germany...
-
Page 2: Table Of Contents
Shutdown in Case of an Emergency ............. 16 2.7.2 First aid measures and medical attendance ..........16 Operator’s Position ..................16 Personnel Qualification ................. 17 2.10 Personal Protective Equipment ..............17 Technical Data .................... 18 Machine Properties ..................18 www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 2 of 46... - Page 3 Levelling the Build Platform ................34 Aligning the PSA with the Build Platform ............34 9.2.1 Checking the Parallelism ................34 9.2.2 Determining the Initial Build Position of the Build Platform ......36 Annexe: Troubleshooting ..................37 www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 3 of 46...
-
Page 4: Identification
The Ultra 3SP system uses the innovative 3SP technology (Scan, Spin and Selectively Photocure). It is a complex high-tech system comprising mechanical, electronic, and software components. It meets all necessary national and international requirements and safety regulations. -
Page 5: Copyright
These operating instructions must be treated confidentially. They should only be used by authorized personnel. They may only be entrusted or made available to third parties with the prior written consent of EnvisionTEC GmbH, EnvisionTEC Inc. or authorized distributors. All documents are protected within the sense of copyright law. -
Page 6: Warranty
In case any material defects or errors occur despite correct usage, EnvisionTEC® offers a warranty period limited to one year starting from the moment the customer is supplied with the goods for the Ultra 3SP system and respective accessories. The obligation of EnvisionTEC® is limited to repairing or replacing defective machine parts. - Page 7 • added Typographic Conventions 2019-03-13 • updated chapter Filling the Material Bottle • replaced photos with mechanical drawings • updated description of procedures to the step-by- step format • added chapter Customer Service www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 7 of 46...
-
Page 8: Health And Safety Notes
Apart from the safety information given in these instructions, all safety signs on the product itself must constantly be observed. Furthermore, the machine owner is obligated to inform each operator about the local safety regulations valid at the operation site. www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 8 of 46... -
Page 9: Representation Of Safety Symbols
IMPORTANT Indicates an obligation to special behavior or an activity required for safe machine handling. 2.1.2 Specific Risk Signs Electrical danger Hand crushing Optical radiation Hot surface Laser radiation www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 9 of 46... -
Page 10: Mandatory Action Signs
Intended Use The Ultra 3SP system is designed for small-batch model productions using stereo- lithography processes. The machine works with the 3SP technology that uses a laser unit as light source. It is the machine owner’s responsibility to ensure that the machine is used for the intended purpose and within its limitations only. -
Page 11: Reasonably Foreseeable Misuse
The machine has been constructed according to the state-of-the art and the approved safety regulations. Nevertheless, the operation of the machine can cause especially the following risks to the health and safety of the operator or third persons. www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 11 of 46... -
Page 12: Laser Radiation Hazard
Only remove the build platform if you cannot clean it inside the machine. Before taking out the build platform make sure that all persons are clear of the danger zone. Avoid unnecessary movements. Avoid non-ergonomic joint positions. www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 12 of 46... -
Page 13: Thermal Hazards
Make sure that all conducting components are in good order and condition! The switch cabinet may be opened by trained and authorized service personnel only. Particular hazards can be caused by: • Incomplete covers or broken parts www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 13 of 46... -
Page 14: Hazards Caused By Insufficient Stability
• H360f May damage the unborn child. Suspected of damaging fertility. • H361f Suspected of damaging fertility. • H373 May cause damage to organs through prolonged or repeated exposure. • H412 Harmful to aquatic life with long lasting effects. www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 14 of 46... -
Page 15: Precautionary Statements
Also make sure that the relevant Material Safety Data Sheets supplied with the photopolymers are observed. Those components of the photopolymers delivered by EnvisionTEC that have been classified as hazardous do not have a threshold limit value (TLV). Therefore, it is not necessary to give concrete instructions concerning the TLV. -
Page 16: Interventions In Emergency Situations
Ultra® 3SP™ Please, observe the following hint concerning air change: IMPORTANT Make sure that the extraction is sufficient. EnvisionTEC recommends an air change of 25m³/h per m² effective surface of the laboratory as described in EN 13779. Interventions in Emergency Situations An intervention in emergency situations includes individually or in combination: •... -
Page 17: Personnel Qualification
Material Safety Data Sheets supplied. For reasons of accident prevention, make sure that all operators wear suitable protective clothing: • protective goggles • protective gloves • safety boots • laboratory coats www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 17 of 46... -
Page 18: Technical Data
• Do not expose the machine to direct sunlight or any other UV radiation. • Do not set up the Ultra 3SP machine in humid or dusty places or in places where it may come into contact with smoke or steam. -
Page 19: Delivery
• Avoid installing the product in a place exposed to vibrations or impacts. • Position the Ultra 3SP machine on a flat and even surface and adjust the four levelling feet using a 17mm spanner or an adjustable wrench to prevent the machine from moving. -
Page 20: Construction Of The Machine
Ultra® 3SP™ Construction of the Machine Different from other Rapid Prototyping systems, the Ultra 3SP system does not use a projector but a laser unit for the curing of resins. Beside a much longer life cycle of the light source, this technique has the advantage of a minimized preparation phase for a build job and provides a more accurate processing. -
Page 21: Integrated Computer
Ultra® 3SP™ Integrated Computer The Ultra 3SP system is equipped with an integrated computer with Windows system software. The computer can be operated by use of the touchscreen located at the front of the machine. The 3SP Control application used for the processing of build jobs runs on the... -
Page 22: Micrometer Screw
EnvisionTEC. For further details about the PSA replacement see chapter Replacing the PSA. Upon delivery of the Ultra 3SP machine, the PSA is secured with a transportation lock. Remove the lock prior to first operation: 1. Unscrew the lock using an Allen key. -
Page 23: Laser Unit
• Always use the supplied eye protection. The laser unit in the Ultra 3SP machine consists of a rail-mounted laser head which is moved in x and y-direction by two independent control modules. Using a multi-cavity laser diode with an orthogonal mirror spinning at 20,000 rpm, the light is reflected through the spinning drum and goes through a series of optical elements, thereby focusing the light onto the surface of the photo polymer. -
Page 24: Material Vat With Heating Function
Ultra® 3SP™ The Ultra 3SP machine can only process a build job if the material tag is registered. Position the tag on the tag reader in the upper compartment of the Ultra 3SP machine. The orientation of the tags on the surface of the tag reader is not important. -
Page 25: Starter Kit
Ultra® 3SP™ Starter Kit The scope of delivery of the Ultra 3SP system includes a starter kit containing useful tools for the operation and cleaning of the machine. Contents of the Starter Kit • Instruction Manual • 3SP Control User Manual (PDF) •... -
Page 26: Putting Into Operation
5. Start the 3SP Control software. Switching the machine off 1. Click [Exit] to close the 3SP Control software 2. Shut down the computer. → The touchscreen and the machine will switch off automatically. www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 26 of 46... -
Page 27: Important Settings Prior To First Operation
Consequently, the two units have to be connected through a network to be able to transfer the prepared job files to the Ultra 3SP system. Alternatively, you can use an USB stick to transfer the build job files to the machine. -
Page 28: Normal Operation
3. As soon as the majority of material has flowed back, remove the build platform from the machine. 4. Put the platform onto a tissue or into a suitable bowl and remove the build parts from the surface using a scalpel or scraper. www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 28 of 46... -
Page 29: Cleaning The Psa
6. Make sure that the resin tube is correctly introduced into the bottle. 7. Fasten the lid. 8. Close the door and replace the material tag (see chapter Material Identification Module). www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 29 of 46... -
Page 30: Installation Of The Material Vat
8.1.5 Installation of the Material Vat The material vat has a capacity of about 15kg to 24kg depending on the type used. This makes the vat one of the heaviest parts of the Ultra 3SP system that can decisively influence the machine’s balance. -
Page 31: Processing A Build Job
If the job folder is stored on a USB stick, insert the stick into one of the USB ports at the rear of the machine and copy or move the job folder to the integrated computer. www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06... - Page 32 10. Move the laser head to the left home position. The pressure sensor should now display about 2. 11. Lock the PSA (see Opening and Closing the PSA). 12. Turn the upper part of the micrometer until it clicks once. 13. Click [Start Job]. www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 32 of 46...
-
Page 33: Completion Of A Build Job
8. When you are sure that there is absolutely no cured material remaining on the PSA or build platform, lower the platform into the resin. 9. Close the PSA. 10. Click the [Home] button. www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 33 of 46... -
Page 34: Regular Checking
Ultra® 3SP™ Regular Checking When your Ultra 3SP is delivered, it is thoroughly installed and calibrated by an authorized service technician. However, due to the high strain and pressure values the system is exposed to, the alignment of the components may be affected after a certain operating time. - Page 35 7. Adjust the orientation of the PSA using the Allen screws (3), and repeat the feeler gauge test described above. 8. Repeat this process until the PSA is aligned at the correct distance exactly parallel to the build platform. 9. Tighten the small Allen screws (2). www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 35 of 46...
-
Page 36: Determining The Initial Build Position Of The Build Platform
You may also need to adjust the burn-in range (see chapter Perfactory Buildstyle Editor in the Perfactory Software Suite User Guide). www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 36 of 46... -
Page 37: Annexe: Troubleshooting
The Motion Adjustment Make sure a value has Coefficient dimensions in x-direction been specified when compared to the correctly. Motion Adjustment Coefficient function in the model. Buildstyle Editor (see Perfactory Software Suite manual). www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 37 of 46... - Page 38 The laser assembly should Contact your customer instead straight be realigned. service laser head surfaces in laser direction exchange or repair. or parts are sheared in opposite directions in the same job. www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 38 of 46...
- Page 39 Seconds per will probably have to be section unusually changed. high. www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 39 of 46...
- Page 40 Replace the PSA and the between stretched film hole, is stretched out is not separation foil. and separation foil. sealed properly. important to replace both items, as the separation foil cannot be cleaned. www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 40 of 46...
- Page 41 The z-stage has to be Grease the z-stage. greased. www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 41 of 46...
- Page 42 Check the pump wiring. displays ongoing Check whether suitable levelling process, but the fuses are used. pump cannot be heard. If none of these measures is successful, the pump www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 42 of 46...
- Page 43 [Connect], you can hear defective. connecting sound The motor driver board is If the wiring is fine, the control defective. motor driver board will application displays that probably have motor been replaced. www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 43 of 46...
- Page 44 The monitor wiring is not Remove all monitor cables machine correct. and restart the internal cannot be operated. computer. Reconnect the monitor and check whether www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 44 of 46...
- Page 45 During the build process Windows Update Go to the Settings section and disable the Automatic computer restarts activated. and a blue screen is Updates function. displayed. www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 45 of 46...
- Page 46 Select the Settings tab and screen is used during job causing the build platform processing. to freeze. tap Option. Remove the tick in the Enable Auto Right Click check box. www.envisiontec.com Ultra_3SP_Manual_EN.docx, 1.6, 2019-05-06 Page 46 of 46...
