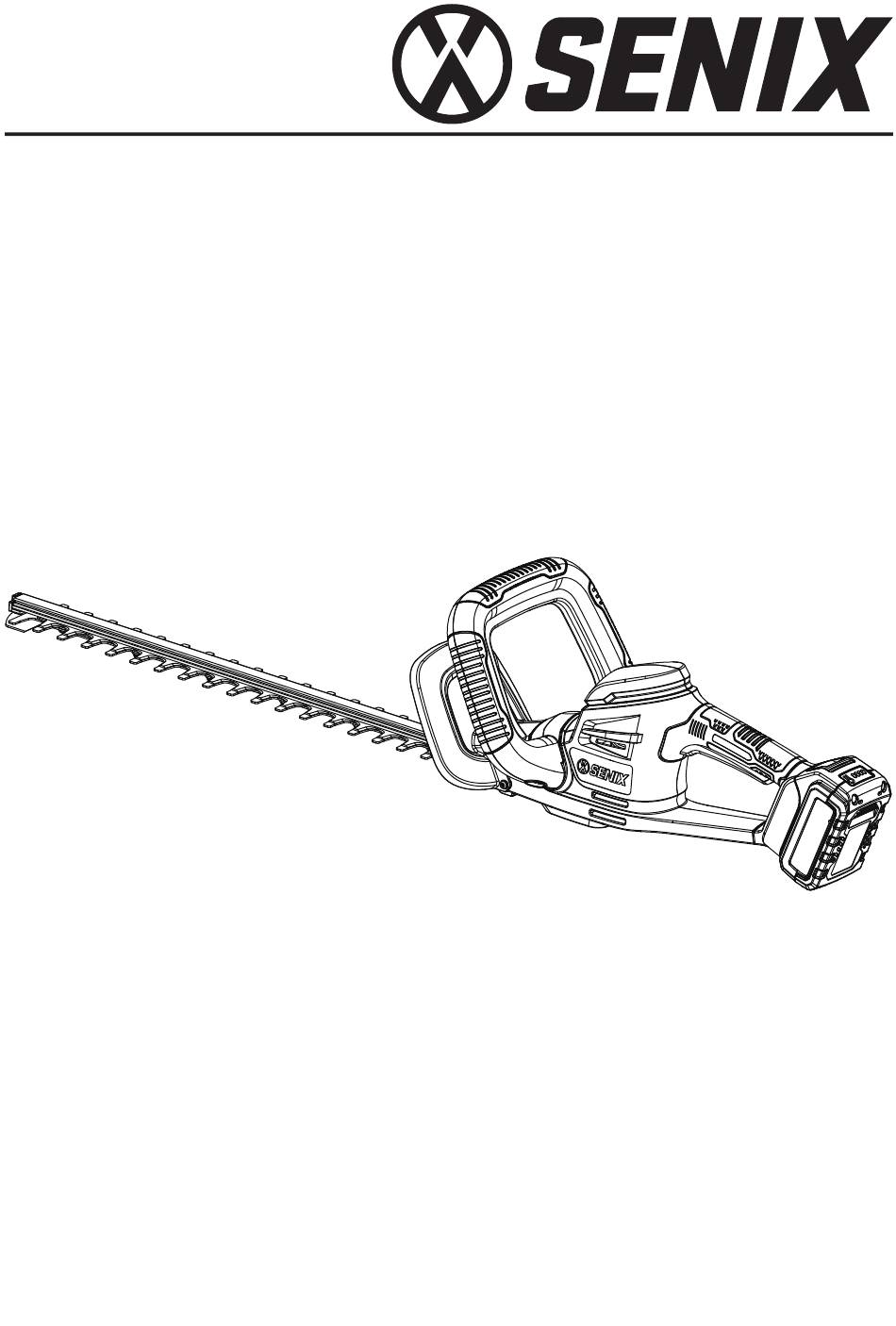

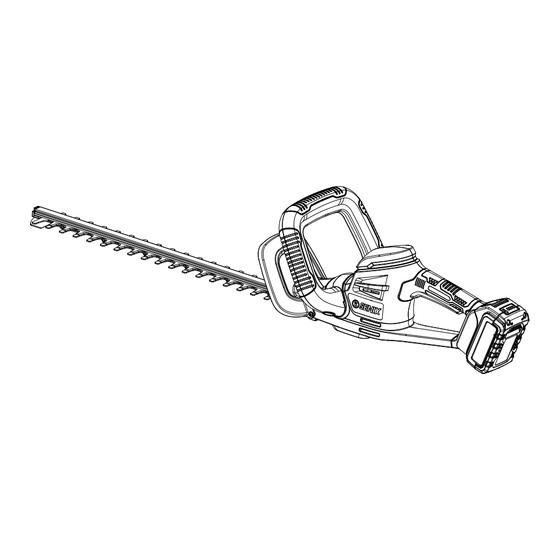

- Page 1 Operator’s manual Model: HTX2-M 20V MAX LITHIUM-ION HEDGE TRIMMER HTX2-M-EU For customer service please find all information on www.senixtools.com CAUTION: BEFORE USING THIS PRODUCT, READ THIS MANUAL AND FOLLOW ALL ITS SAFETY RULES AND OPERATING INSTRUCTIONS. ORIGINAL INSTRUCTIONS...
- Page 2 • SAFETY & INTERNATIONAL SYMBOLS • This operator’s manual describes safety and international symbols and pictographs that may appear on this product. Read the operator’s manual for complete safety, assembly, operating and maintenance and repair information. This graphic accompanied by the words Keep all bystanders at least 50 ft.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY..................3 KNOW YOUR UNIT................9 SPECIFICATIONS* ..............10 ASSEMBLY..................11 OPERATION..................12 MAINTENANCE................15 CLEANING AND STORAEG............16 TROUBLESHOOTING..............17 PARTS...................18 SAFETY GENERAL POWER TOOL SAFETY b) Avoid body contact with earthed or grounded surfaces, such as pipes, WARNINGS radiators, ranges and refrigerators. There is an increased risk of electric WARNING shock if your body is earthed or Read all safety warnings and all... - Page 4 in serious personal injury. do the job better and safer at the rate b) Use personal protective equipment. for which it was designed. Always wear eye protection. b) Do not use the power tool if the switch does not turn it on and Protective equipment such as dust off.
-
Page 5: Hedge Trimmer Safety Warnings
5) Battery tool use and care is maintained. b) Never service damaged battery a) Recharge only with the charger packs. Service of battery packs should specified by the manufacturer. A only be performed by the manufacturer charger that is suitable for one type of or authorized service providers. -
Page 6: Battery Pack Safety Warnings
make exposed metal parts of the hedge 1.Whenever the machine is left by the trimmer "live" and could give the operator user; an electric shock. 2.Before clearing a blockage; • Keep all power cords and cables 3.Before checking, cleaning or working on away from cutting area. -
Page 7: Battery Charger Safety Warnings
• The battery can be damaged by the appliance. Cleaning and user pointed objects such as nails or maintenance shall not be made by screwdrivers or by force applied children without supervision. externally. An internal short circuit • Only charge the Lithium-Ion battery can occur and the battery can burn, pack with a capacity of 2.5Ah or smoke, explode or overheat. -
Page 8: Residual Risks
INTENDED USE WARNING The product is intended for trimming hedges, bushes and shrubs. Do not cut This unit produces an electromagnetic branches exceeding the maximum cutting field during operation. This field may, width of 20 mm. This product is intended under some circumstances, interfere with for private domestic use only, not for any active or passive medical implants. -
Page 9: Know Your Unit
Blade cover Handle Cutting blades Unlock button for battery pack Guard Battery pack Front handle Switch trigger Interlocking switch Cover NOTE:The model of HTX2-M-EU include the battery pack,but the model of HTX2-M-EU-0 do not include the battery pack. EN - 9... -
Page 10: Specifications
SPECIFICATIONS* NOTE:The model of HTX2-M-EU include the battery pack,but the model of HTX2-M-EU-0 do not include the battery pack. Model HTX2-M / HTX2-M-EU Input voltage 20V max d.c. No-load speed 2600min ±10% Cutting length 465 mm Cutting capacity 20 mm Net weight without battery pack 2.5 kg... -
Page 11: Assembly
Follow all safety Screw x2 informations contained within. Front Handle x1 Operator’s Manual x1 NOTE: The model of HTX2-M-EU-0 do not include the battery pack and battery charger. ASSEMBLING THE FRONT HANDLE WARNING: To avoid serious personal injury and damage to the unit, shut the unit off before removing or installing an attachment. -
Page 12: Operation
(Fig.4). Battery pack and charger must be used from its manufacturer : SENIX Europe GmbH, Theodorstraße 42 – 90, Haus 2b 22761 Hamburg ,Germany .The model of the battery pack and charger have been shown in this manual. - Page 13 OPERATION Fig. 6 SWITCHING ON AND OFF 1-Light button Hold the product as in working condition. Fig. 5 To start the product, press the switch trigger and the interlocking switch at the front handle at the same time. OVERHEAT PROTECTION To switch the product off, release the switch trigger or When the tool/battery is overheated, the tool stops the interlocking switch (Fig.
- Page 14 OPERATION CUTTING PROCEDURE when shaped this way, and it will be more uniform. Always hold hedge trimmer with both hands when WARNING: operating. Use a firm grip on the handles. The unit is used for cutting in either direction in a slow, sweeping Always lubricate the cutting blade with protective spray action from side to side.
-
Page 15: Maintenance Of Battery Pack
MAINTENANCE WARNING: Remove and pull out the battery pack before maintenance! Wear protective gloves! Maintain this product regularly and carefully! If the product is improperly maintained, it may fail at its intended task, which may produce fatal consequences. WARNING: Wear protective clothing and observe all safety instructions to prevent serious personal injury. -
Page 16: Cleaning And Storaeg
CLEANING AND STORAGE CLEANING Electrical products should not be discarded with household products. Used electrical products WARNING: must be collected separately and disposed of at collection points provided for this purpose. Talk with your local authorities or dealer for advice on Always switch the product off, remove and pull out the recycling. -
Page 17: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Battery pack not properly attached Attach properly Battery pack capacity too low Remove and charge battery pack Product does not start Battery pack damaged Check by a specialist electrician Switch trigger or interlocking switch Refer to chapter “SWITCHING ON not set on ON position AND OFF”... -
Page 18: Parts
PARTS Model: HTX2-M-EU 18 - EN... - Page 19 PARTS Part # Description Qty. 8SJGB40-16 Self tapping screw A043027-012-00 Right housing A043027-015-00 Right decorative covers 8SNAB30-10 Flange head self tapping screw A043027-009-00 Electronic component 8044-530202-00 Switch trigger 8342-740201-00 Switch spring A043027-011-00 Left housing A043027-014-00 Left decorative covers 8341-751502-00 Motor damping pad A043027-008-00 Steel wire rod 8043-532001-00...
