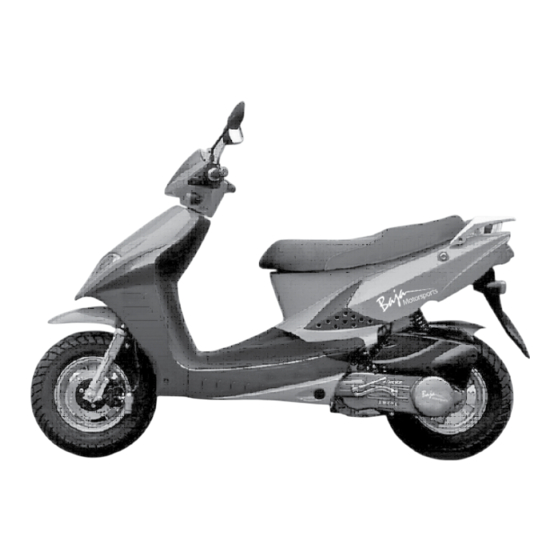

SC125 SCOOTER
Read this manual carefully. It contains important safety information.
No one under the age of 16 should operate this scooter.
OWNER'S MANUAL
Minimum Recommended Age
Requirement 16
Always wear a helmet; It could save your Life!
Do not remove this operator's manual from this vehicle.
Please obtain, review, and follow provincial / municipal government acts and regulations pertaining to owning and operating this scooter.

Rev. A
