Summary of Contents for Andonstar ADSM302

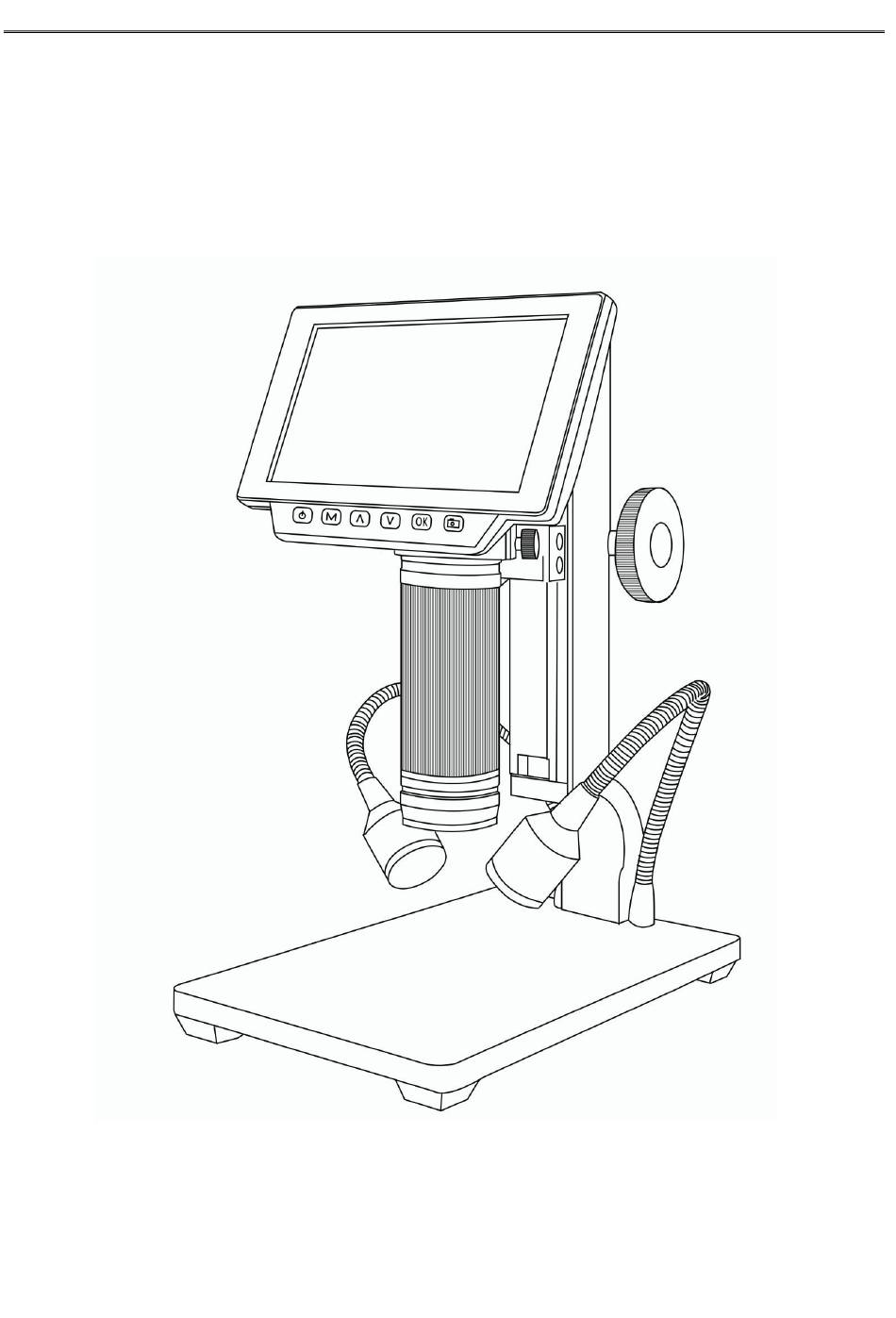

- Page 1 Instructions of Digital Microscope ADSM302...
-
Page 2: Table Of Contents
LIST OF CONTENTS General Rules............................... 2 Basic Parameters............................2 Parts of ADSM302............................3 ◆Main device.............................3 ◆Remote controller.......................... 4 Connect & Outputs............................5 General use..............................6 ◆Use individually..........................6 ◆HDMI..............................7 ◆USB..............................8 Software installation........................8 Software operation........................8 ＊Icons definitions....................... 8 ＊Interface definitions and functions................9 ＊Operating Steps...................... -
Page 3: General Rules
Shenzhen Andonstar Technology Co., Ltd. It realized Full HD, high object distance, multifunction, multi-output at the same time. With help of the Andonstar measuring software, it can easily meet many different requirements in many industries, such as industrial overhaul and teaching demonstration. And it’s appearance design combines more ergonomic consideration, provides users better experience. -
Page 4: Parts Of Adsm302
Parts of ADSM302 ◆Main Device *Fasten screw: It aim to adjust the compactness between the Lifting stand and the Distance controllers, so users can fasten the distance from the lens to the object table. - 3 -... -
Page 5: Remote Controller
◆Remote Controller *Frozen: Stop the image on the screen. It works at standby, record and capture modes. *Zoom in&out: digital zooming up to 4 times. *Brightness up&down: exposure compensation from +2.0 to -2.0. *Lock/unlock: to lock the file when it’s recording. So the video file which has been locked won’t be covered by new files when the memory card is full. -
Page 6: Connect & Outputs
Connect & Outputs So generally, it has 5 ways of output including it’s own monitor can show image itself. And the rest four are : HDMI,AV/TV, USB and memory card. The airscape in below shows the different ports on the device. In the next few chapters, there are more details about each of them. -
Page 7: General Use
⑤：Connect the device to the switch. ⑥：Connect the switch to the power supply. ⑦：Connect the two goose lights to the switch. ⑧：The switch. It has three buttons. The one on the left is ON/OFF, to get or break the connection between the device and the power supply. -
Page 8: Hdmi
*To capture pictures, three ways: 1.Press “M” shortly to get into the Capture mode. Press “OK” to take pictures. 2.Press “Capture” on the monitor only. 3.Press “Capture” button on the IR remote to get pictures. * To record videos: 1.Press “M” shortly to get into the Record mode. Press “OK” to start recording. 2.Press “OK”... - Page 9 ·First, make sure that the monitor connecting to the microscope is literally HDMI monitor. Otherwise it won’t perform as good as we expected. ·Second, connect the microscope to the HDMI monitor, also, connect it to the power supply. Because there is no built-in battery in the device, so make sure the microscope is always in charging when you use it.
-
Page 10: Usb
So far the measuring software “Andonstar” can only support Windows system. If you can’t open the links or get problem with downloading these files, please ask customer service to send you separately. You can also go visit our website and download from there. -
Page 11: Interface Definitions And Functions
＊Interface Definitions and Functions ①Main menu: Here, users can open different devices or lead in pictures to observe or edit, do video setting or save setting, choose which windows to show or hide etc. ②toolbar: Here are the tools that would be useful for users to do measuring and image analysis. Definition and function of different tools would be given in chapter “Icons definitions”. - Page 12 ◆Calibration Management ◆Measure Results →Shows the list of different → Shows the size of the Calibrations. Users can apply whole view. Users Can or delete the one they want. change it in “File→ Videosetting→Video capture pin→(S)”. →Where to set new →...
-
Page 13: Operating Steps
＊Operating Steps 1）Material: PC (Windows system, with software “Andonstar”); USB microscope (device name: “Andonstar Camera”), Ruler. 2）Connect *Make sure that your computer USB port provided stable 5V power supply. Otherwise, it won’t show picture properly on the PC. We don’t normally recommend you connect the microscope to a laptop, USB port of which has been more or less damaged usually. -
Page 14: Functions
＊Functions 1）Calibration 1, Put the ruler under the digital microscope, adjust the focus wheel and the height of the stand, to get the best clearance. (during the rest of the process, do not change the object distance any more). 2, In the “Calibration management” set the name and unit length of the new calibration(refer the picture on the right). - Page 15 2) Measuring 1, Choose the tool you need to do measuring in the toolbar. 2, Click dots or draw lines that you need to measure in the main operating window. 3, Place the results of measuring in a proper place around the target. 3) Special Effect ·Includes: Edge detection, Inverse color, Flip horizontal, Relief, Sharpen and Smooth.
- Page 16 Second, if there is still no image, please check the “Device Manager” of your PC, delete the “USB Camera” in the “Imaging devices” and rescan . Let the system identifies again. After all, in the “Imaging devices” there will show another name, which is “Andonstar Camera”. Then restart the software. 3.Why there is a measurement error? First, if you want to get a more precise result, you need to use a more precise calibration.
-
Page 17: Thanks
If you have any question, or any advice and feedbacks, feel free to contact us: support@andonstar.com We’d like to provide the best service to you. Our official website is www.andonstar.com. We reserve all the right for the final explanation. Warranty User’s name： Address：...
