Operating the Rack Control Module (RCM)
The TD100 System With Rack Control Overview
The 4 main components for a basic TD100 system
•
TD100 Transmitter
o
Dual-rod or Coaxial Probe
o
Finch II Display. Note that Finch II-W and Finch II-6W are referred to as
o
Finch II in this overview.
Wire Kit
o
The rack control components
•
Rack Control Module (RCM)
o
Titan-Supplied Optic and Thermistor Sockets
o

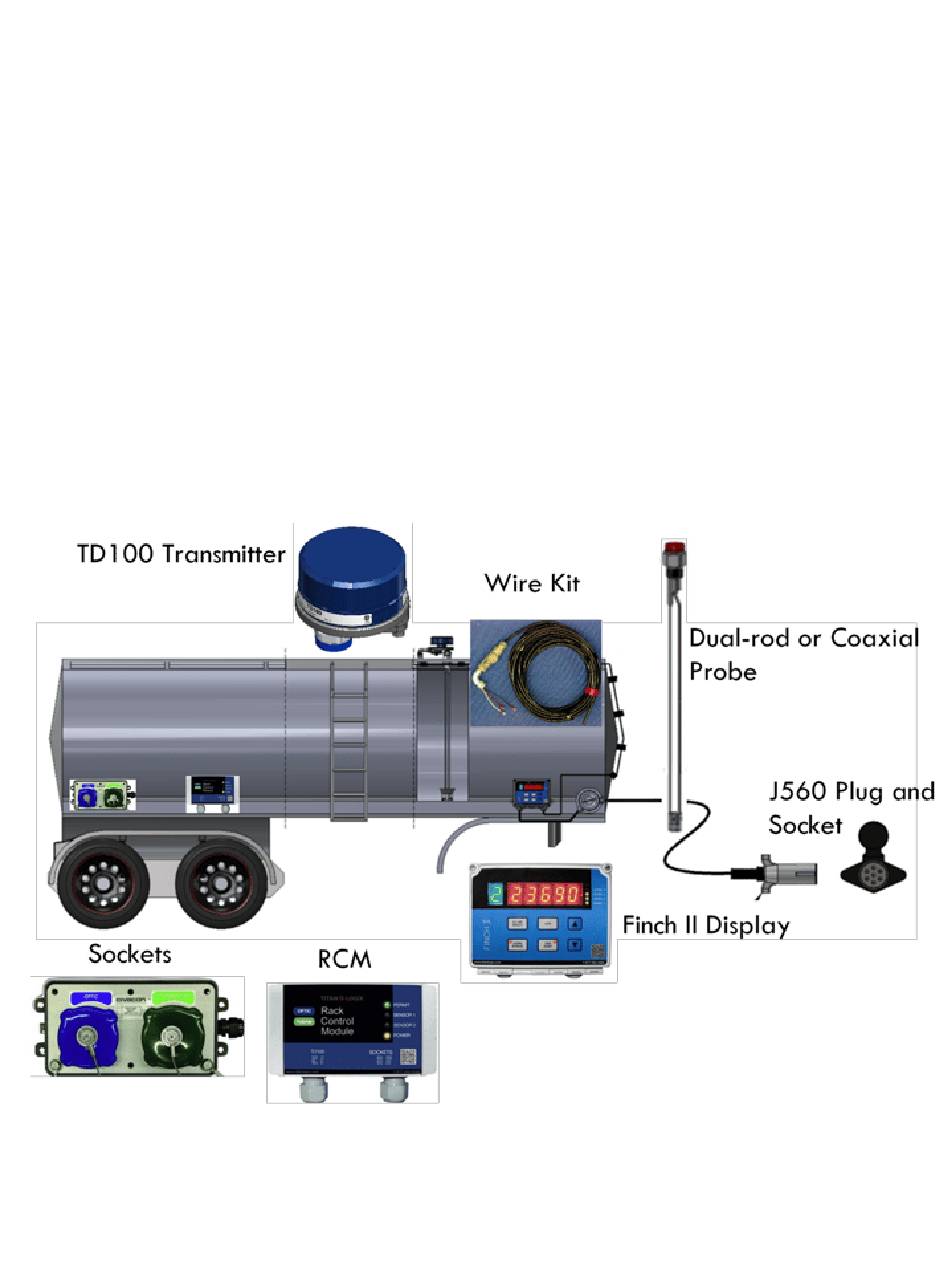

Physical Location Diagram
Page 1 of 3
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Titan Logix TD100
Summary of Contents for Titan Logix TD100
- Page 1 Operating the Rack Control Module (RCM) The TD100 System With Rack Control Overview The 4 main components for a basic TD100 system • TD100 Transmitter Dual-rod or Coaxial Probe Finch II Display. Note that Finch II-W and Finch II-6W are referred to as Finch II in this overview.
- Page 2 The only thing a driver needs to do is check that the Permit light is green when you connect to the rack. No lights or red Permit light denies loading at the rack. Ensure all TD100 system alarms have been cleared. Page 2 of 3...
- Page 3 The RCM and Titan-supplied Optic and Thermistor API sockets communicate with the rack controller. The RCM permits or denies loading at the rack. The RCM Permit light is green when all conditions reported by the TD100 system are safe for loading. RCM Troubleshooting The RCM automatically resets the permit light to green when the HH and Spill alarms have been cleared and inactive for over 1 minute while the compartment is empty.
