EHT18-Li

EAN. 5059340486567

ORIGINAL INSTRUCTIONS

Table of Contents

Need help?

Do you have a question about the EHT18-Li and is the answer not in the manual?

Questions and answers

Summary of Contents for Erbauer EHT18-Li

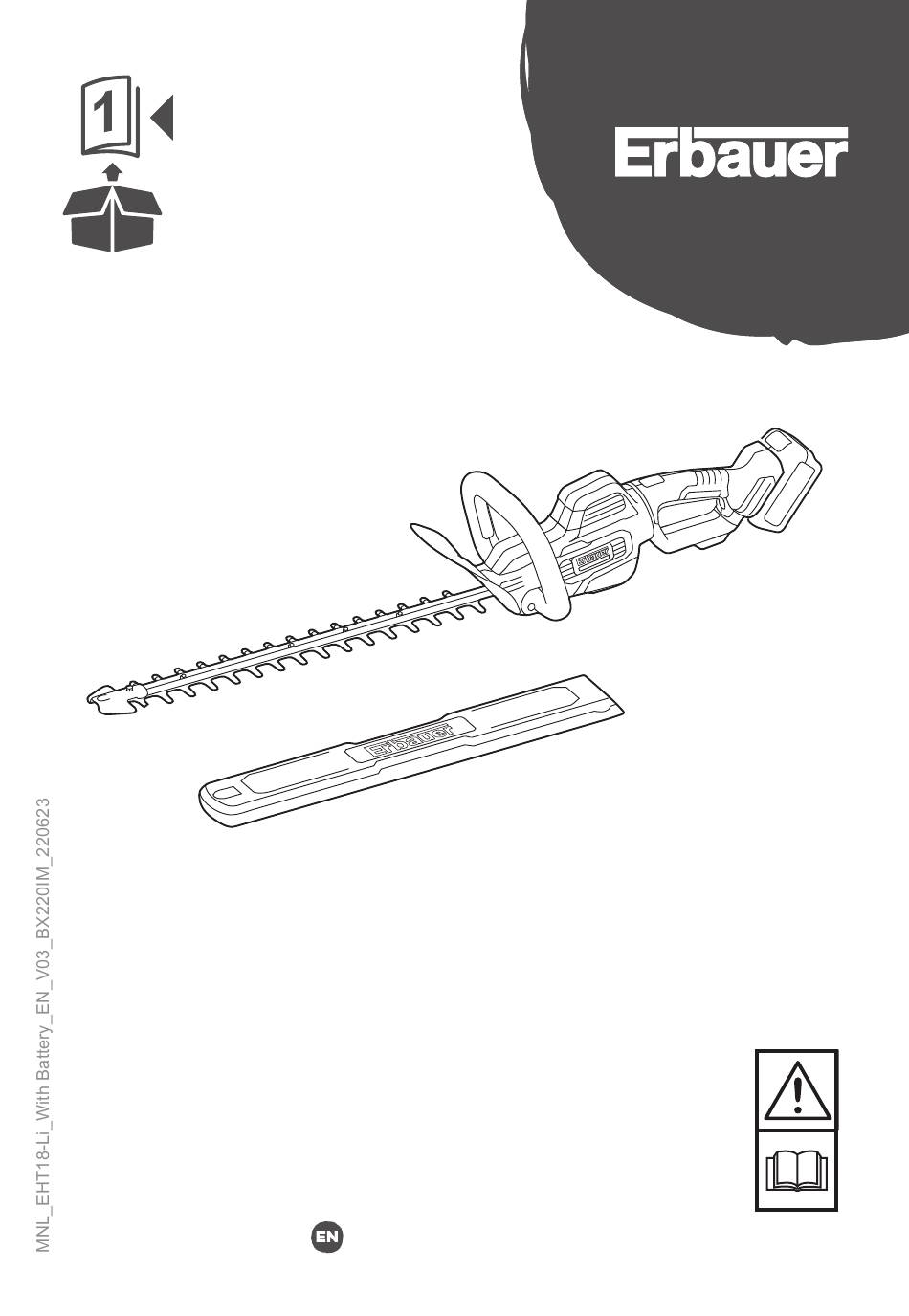

Page 1 EHT18-Li EAN. 5059340486567 ORIGINAL INSTRUCTIONS...
Page 2 Product description Safety instructions Assembly Care & maintenance Guarantee Declaration of Conformity...
Page 3: Product Description
WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool. PRODUCT DESCRIPTION 1. Blade 7. Battery pack release button* 2. Safety guard 8. Power bar button* 3. Safety switch 9. Battery pack 4.
Page 4 PRODUCT DESCRIPTION...
Page 5 0-15°...
Page 6: Safety Instructions
SAFETY INSTRUCTIONS GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
Page 7: Personal Safety
ot expose power tools to rain or wet conditions. Water c. Do n entering a power tool will increase the risk of electric shock. not abuse the cord. Never use the cord for carrying, d. Do pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts .
Page 8 f. Dress properly. Do not wear loose clothing or jewellery. Keep Loose clothes, your hair and clothing away from moving parts. jewellery or long hair can be caughtin moving parts. devices are provided for the connection of dust g. If extraction and collection facilities, ensure these are connected and properly used.
Page 9 eep cutting tools sharp and clean. Properly maintained f. K cutting tools with sharp cutting edges are less likely to bind and are easier to control. e the power tool, accessories and tool bits etc. in g. Us accordance with these instructions, taking into account the working conditions and the work to be performed.
Page 10: Hedge Trimmer Safety Warnings
f. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion. g. Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions.
Page 11 Check the hedge for foreign objects before operation, e.g. wire fences. Take care that the cutting device does not come into contact with wire or other metal objects. Hold the hedge trimmer properly, e.g. with both hands if two handles are provided. Loss of control can cause personal injury.
Page 12 l. Know how to stop the product quickly in an emergency. m. Do not expose to rain. Do not operate the product on a wet hedge. n. Use the product only in daylight or good artificial light. o. Prolonged use of the product exposes the user to vibrations that can cause a range of conditions collectively known as hand-arm vibration syndrome (HAVS) e.g.
Page 13: Vibration And Noise Reduction
h. Do not place the battery in microwave ovens, high-pressure containers or on induction cookware. i. If you intend to store a battery for a period without use then store battery at room temperature (19°C to 25°C), charged to about 30 – 50% of capacity. When storing for very long periods boost charge the battery once per year to prevent over discharge VIBRATION AND NOISE REDUCTION...
Page 14: Residual Risks
b. Switch off and disconnect from the power supply if there are malfunctions. Have the garden power tool checked by a qualified professional and repaired, if necessary, before you operate it again. RESIDUAL RISKS Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain.
Page 15 ASSEMBLY UNPACKING • Unpack all parts and lay them on a flat, stable surface. • Remove all packing materials and shipping devices, if applicable. • Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer.
Page 16 76-100% Charge 51-75% Charge 26-50% Charge 5-25% Charge under 5% Charge Flash...
Page 17: Intended Use
INTENDED USE The product is intended for trimming hedges, bushes and shrubs. Observe the technical data for the maximum cutting capacity. Do not cut non-plant material or branches exceeding the stated maximum capacity. OPERATION ON/OFF SWITCH (FIG. C) Hold the product with one hand at the main handle(6) and with the other at the front handle(4).
Page 18 NOTE: While trimming, the cutting device is possible to be blocked. So the product will turn off automatically due to over current. Therefore release the on/off switch for over 3s and then press down again to go on with trimming. OVERLOAD, TEMPERATURE AND CHARGING PROBLEM PROBLEM TOOL / BATTERY...
Page 19: Care And Maintenance
CARE & MAINTENANCE WARNING! Always switch the product off, remove the battery pack and let the product cool down before performing inspection, maintenance and cleaning work! Only perform care and maintenance work according to these instructions! All further works must be performed by a qualified specialist! BLADE CLEANING AND LUBRICATING WARNING! Wear safety gloves when working on the cutting device and...
Page 20 MAINTENANCE Your tool requires no maintenance. There are no user serviceable parts in your power tool. Before and after each use, check the product and accessories (or attachments) for wear and damage. If required, exchange them for new ones as described in this instruction manual.
Page 21 GUARANTEE At Erbauer we take special care to select high quality materials and use manufacturing techniques that allow us to create ranges of products incorporating design and durability. That’s why we offer a 3 year trade guarantee against manufacturing defects on our Erbauer power tool products.
Page 22 CUSTOMER CARE AND TECHNICAL HELPLINE A better way to repair your tools Kingfisher takes special care in creating high-quality garden power tools that are designed to last. But if a fault develops with your garden power tool and you need to claim under the guarantee, the Customer Care and Technical Helpline can support with technical assistance or if required, arrange a free courier collection from your home, assess your garden power tool for fault, repair it, and return it.
Page 23: Availability Of Spare Parts
AVAILABILITY OF SPARE PARTS Contact the customer service helpline for assistance or visit www.kingfisherspares.com For assistance contact the customer services helpline: UK 0800 0789647 uk@Kingfisherservice.com EIRE 1800 932226 eire@kingfisherservice.com Further information about this product can also be found at: www.kingfisher.com/products...
Page 24: Technical Specifications
TECHNICAL SPECIFICATIONS HEDGE TRIMMER Rated voltage: 18 V d.c Rated no-load speed n 2800 /min Max. cutting length: 510 mm Blade length: 550 mm Max. cutting capacity: 25 mm Net weight (without battery pack): 2.8 kg Battery pack model: EBAT18-Li-5 Battery voltage: 18V d.c.
Page 25 RATING LABEL EXPLANATION EHT18-Li = MODEL NUMBER E = ERBAUER HT = HEDGE TRIMMER 18 = 18 V d.c.
Page 26 Wear protective gloves. Wear protective footwear. Wear hearing protection. Wear eye protection. Do not expose to rain or wet Wear respiratory protection. conditions. Objects thrown by the product could hit the user or other bystanders. Switch the product off and remove the battery pack to disconnect Always ensure that other people from the power supply before...
Page 27: Declaration Of Conformity
DECLARATION OF CONFORMITY (UK) DECLARATION OF CONFORMITY Product • Cordless Hedge Trimmer • EHT18-Li • Type / batch or serial number range 000001 to 999999 Name and address of the manufacturer or his authorised representative: Kingfisher International Products Limited 3 Sheldon Square...
Page 28 • Cordless Hedge Trimmer/ Taille-Haie Sans Fil/ Bezprzewodowe Nożyce Do Żywopłotu/ Trimmer Pentru Gard Viu Fără Fir/ Cortasetos Inalámbrico/ Corta Sebes Sem Fios • EHT18-Li • Type / batch or serial number range 000001 to 999999 Name and address of the manufacturer or his authorised representative: Nom et adresse du fabricant ou de son mandataire: Nazwa i adres producenta lub jego upoważnionego przedstawiciela:...
Page 29 2006/42/EC as amended Machinery Directive 2014/30/EU as amended Directive Electromagnetic compatibility 2000/14/EC as amended Outdoor Noise Directive 2011/65/EU as amended Directive Restriction of the use of certain hazardous substances in electrical and electronic equipment Directive 2006/42/CE relative aux machines 2014/30 / UE telle que modifiée Directive Compatibilité électromagnétique Directive 2000/14/CE relative aux émissions sonores extérieures Directive 2011/65/UE relative à...
Page 30 EN 60745-1:2009+A11:2010 EN 60745-2-15:2009+A1:2010 EN 55014-1:2017+A11:2020 EN 55014-2:2015 EN ISO 3744:2010 Authorised signatory and technical file holder/Signataire et responsable de la documentation technique authorisé/ Podmiot uprawniony do wystawienia i adres prezechowywania dokumentacji technicznej/Semnatar autorizat și deținător al dosarului tehnic/Firmante autorizado y titular del expediente técnico/ signatário autorizado e detentor da ficha técnica Kingfisher International Products B.V., Rapenburgerstraat 175E,...
Page 32 Manufacturer,Fabricant,Producent,Producător,Fabricante: UK Manufacturer: Kingfisher International Products Limited 3 Sheldon Square London, W2 6PX United Kingdom www.kingfisher.com/products EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.kingfisher.com/products www.diy.com To view instruction manuals online, visit www.screwfix.com www.kingfisher.com/products www.screwfix.ie www.castorama.fr Pour consulter les manuels d’instructions en ligne, www.bricodepot.com...
