Summary of Contents for Erbauer EGT18-Li

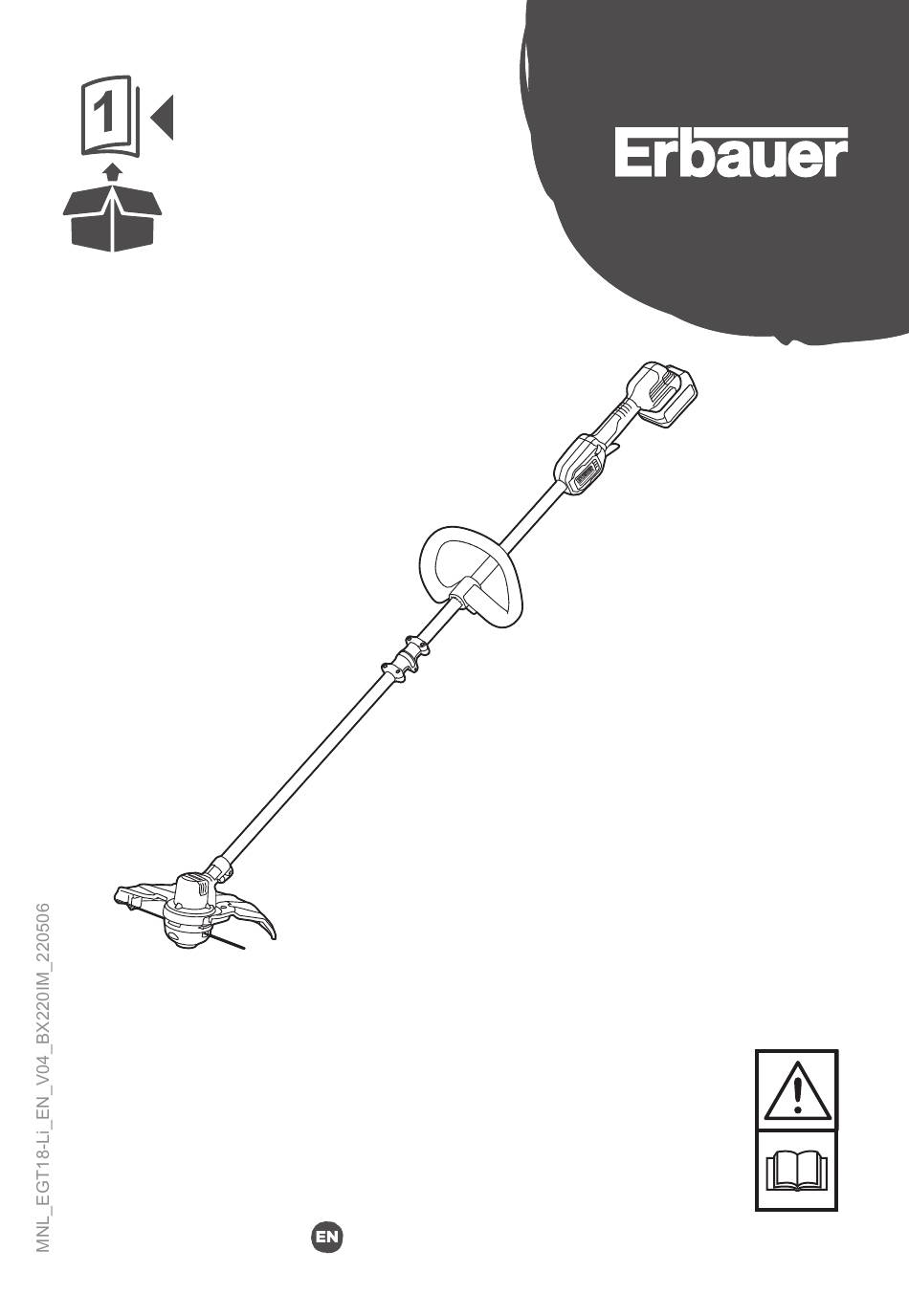

- Page 1 EGT18-Li EAN. 5059340486581 ORIGINAL INSTRUCTIONS...
- Page 2 Product description Safety instructions Assembly Care & maintenance Guarantee Declaration of Conformity...
-

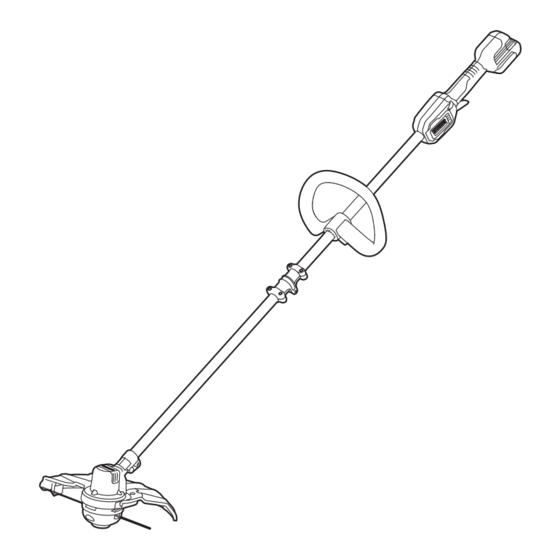

Page 3: Product Description
WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool. PRODUCT DESCRIPTION 1. Lock-Off Button 9. Line-cutting Blade 2. On/off switch trigger 10. Bump knob 3. Adjustable front handle 11. Battery pack 4. - Page 4 PRODUCT DESCRIPTION...
- Page 6 11 cm...
- Page 7 12 cm...
-
Page 8: Safety Instructions
SAFETY INSTRUCTIONS GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. -
Page 9: Personal Safety
ot expose power tools to rain or wet conditions. Water c. Do n entering a power tool will increase the risk of electric shock. not abuse the cord. Never use the cord for carrying, d. Do pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts . - Page 10 ss properly. Do not wear loose clothing or jewellery. Keep f. Dre your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or longhair can be caught in moving parts. devices are provided for the connection of dust g.
- Page 11 eep cutting tools sharp and clean. Properly maintained f. K cutting tools with sharp cutting edges are less likely to bind and are easier to control. e the power tool, accessories and tool bits etc. in g. Us accordance with these instructions, taking into account the working conditions and the work to be performed.
- Page 12 not use battery pack or tool that is damaged or modified. e. Do Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. Do not expose a battery pack or tool to fire or excessive temperature.
-
Page 13: Operation
b. Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine, local regulations may restrict the age of the operator. c. Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property. -
Page 14: Maintenance And Storage
g. Take care against injury to feet and hands from the cutting device. h. Always ensure that the air vents are kept clear of debris. i. Take care against injury from any device fitted for trimming the filament line length, if applicable. After extending new cutter line always return the product to its normal operating position before switching on. -
Page 15: Vibration And Noise Reduction
hammer, step on the battery or otherwise subject it to strong impacts or shocks. d. Do not solder directly onto the battery. e. Do not expose battery to water or salt water, or allow the battery to get wet. f. Do not disassemble or modify the battery. g. -
Page 16: Residual Risks
EMERGENCY Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety directions and follow them to the letter. This will help to prevent risks and hazards. a. Always be alert when using this product, so that you can recognise and handle risks early. - Page 17 ASSEMBLY UNPACKING • Unpack all parts and lay them on a flat, stable surface. • Remove all packing materials and shipping devices, if applicable. • Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer.
- Page 18 WARNING! Do not attempt to start the trimmer until the shaft has been locked. WARNING! Always remove the battery pack from the product when you are assembling parts, making adjustments, cleaning, or when the product is not in use. Put your trimmer on the ground and carefully unfold the lower shaft (5). Make sure that the cable is inside the shaft so that it will not be pinched when closing the joints (Fig.
- Page 19 WARNING! The tool cannot be used without the front handle reliably fixed. CHARGING YOUR BATTERY PACK The battery has been shipped in a low charge condition. Charge it fully before first use. Refer to the charger instruction manual for the details. TO REMOVE OR INSTALL THE BATTERY PACK (D1, D2) Depress the battery pack release button (13) to release and slide the battery pack (11) out from your tool.
-
Page 20: Intended Use
INTENDED USE This product is intended for cutting weed, grass, or similar soft vegetation in areas that are hard to reach, e.g. under bushes, on slopes and edges. It may not be used to work on unusual thick, dry or wet grass, e.g. pasture grass, or to shred leaves. NOTE: The trimmer head is parallel to the ground at a proper cutting distance without operator bending over (E). - Page 21 WARNING! Do not remove or alter the line cutting blade assembly. Excessive line length will cause the motor to overheat and may result in serious personal injury. USING THE LINE WARNING! To avoid serious personal injury, wear goggles or safety glasses at all times when operating this unit.
- Page 22 head (8) could damage sensitive bark, and damage fence posts (Fig. J). Carefully manoeuvre the product around objects, such as trees and bushes, ensuring it does not come into contact with them. OVERLOAD, TEMPERATURE AND CHARGING PROBLEM PROBLEM TOOL / BATTERY POSSIBLE SOLUTION STATUS...
-
Page 23: Care And Maintenance
CARE & MAINTENANCE WARNING! Always switch the product off, remove the battery pack and let the product cool down before performing inspection, maintenance and cleaning work! Only perform care and maintenance work according to these instructions! All further works must be performed by a qualified specialist! LINE SPOOL ASSEMBLY REPLACEMENT(K-M) NOTE: Always use the recommended nylon cutting line spool assembly... - Page 24 Replace the trimming guard with one of the same type when it is worn or shows damage. CLEAN • Clean the product with a dry cloth. Use a brush for areas that are hard to reach. • In particular clean the collet, switches and air vents after every use with a cloth and brush. •...
- Page 25 DISPOSAL OF AN EXHAUSTED BATTERY PACK To preserve natural resources, please recycle or dispose of the battery pack properly. This battery pack contains Li-Ion batteries. Consult your local waste authority for information regarding available recycling and/or disposal options. Discharge your battery pack by operating your tool, then remove the battery pack from the tool housing and cover the battery pack connections with heavy- duty adhesive tape to prevent short circuit and energy discharge.
- Page 26 GUARANTEE At Erbauer we take special care to select high quality materials and use manufacturing techniques that allow us to create ranges of products incorporating design and durability. That’s why we offer a 3 year trade guarantee against manufacturing defects on our Erbauer power tool products.
- Page 27 CUSTOMER CARE AND TECHNICAL HELPLINE A better way to repair your tools Kingfisher takes special care in creating high-quality garden power tools that are designed to last. But if a fault develops with your garden power tool and you need to claim under the guarantee, the Customer Care and Technical Helpline can support with technical assistance or if required, arrange a free courier collection from your home, assess your garden power tool for fault, repair it, and return it.
-
Page 28: Availability Of Spare Parts
AVAILABILITY OF SPARE PARTS Contact the customer service helpline for assistance or visit www.kingfisherspares.com For assistance contact the customer services helpline: UK 0800 0789647 uk@Kingfisherservice.com EIRE 1800 932226 eire@kingfisherservice.com Further information about this product can also be found at: www.kingfisher.com/products... -
Page 29: Technical Specifications
TECHNICAL SPECIFICATIONS Rated voltage: 18V dc Rated no load speed n 7000/min Cutting Line Type: 2.0mm Cutting Width: 300mm Total length for cutting means: Weight (without battery pack): 2.8 kg Ambient temperature range for tool and battery use: 0 C to 40 For use with battery pack and charger as below: Battery pack model: EBAT18-Li-2 / EBAT18-Li-4 / EBAT18-Li-5 /... - Page 30 Proper measures include among others regular maintenance and care of the product and accessories, keeping hands warm, periodical breaks and proper planning of work processes. RATING LABEL EXPLANATION EGT18-Li = MODEL NUMBER E = ERBAUER GT=GRASS TRIMMER 18 =18 V d.c.
- Page 31 dB(A) Decibel (A-rated) Metres per seccond aquared Manufacturing date code; year of manufacturing (20yy) and week of yyWxx manufacturing (Wxx) Lock / to tighten or secure Unlock / to loosen Caution / Warning. Wear hearing protection. Read the instruction manual. Wear head protection, where there Wear respiratory protection.
- Page 32 This unit is not intended for use with a toothed saw type blade.Do not use toothed blade! Ensure that other people and pets remain at least 15m away from the grass trimmer when it is in use. Do not dispose of battery packs in rivers or immerse in water. Do not dispose of battery packs in fire.
- Page 36 Manufacturer,Fabricant,Producent,Producător,Fabricante: UK Manufacturer: Kingfisher International Products Limited 3 Sheldon Square London, W2 6PX United Kingdom www.kingfisher.com/products EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.kingfisher.com/products www.diy.com To view instruction manuals online, visit www.screwfix.com www.kingfisher.com/products www.screwfix.ie www.castorama.fr Pour consulter les manuels d’instructions en ligne, www.bricodepot.com...
