- Page 1 Accelerator Card Installation Guide UG1617 (v1.0) May 8, 2024 AMD Adaptive Computing is creating an environment where employees, customers, and partners feel welcome and included. To that end, we’re removing non-inclusive language from our products and related collateral. We’ve launched an internal initiative to remove language that could exclude people or reinforce historical biases, including terms embedded in our software and IPs.
-
Page 2: Table Of Contents
Running lspci..........................12 Appendix A: Additional Resources and Legal Notices ......13 Finding Additional Documentation..................13 Support Resources........................14 References..........................14 Revision History......................... 14 Please Read: Important Legal Notices................... 14 UG1617 (v1.0) May 8, 2024 Send Feedback Alveo V80 Card Installation Guide... -
Page 3: Chapter 1: Introduction

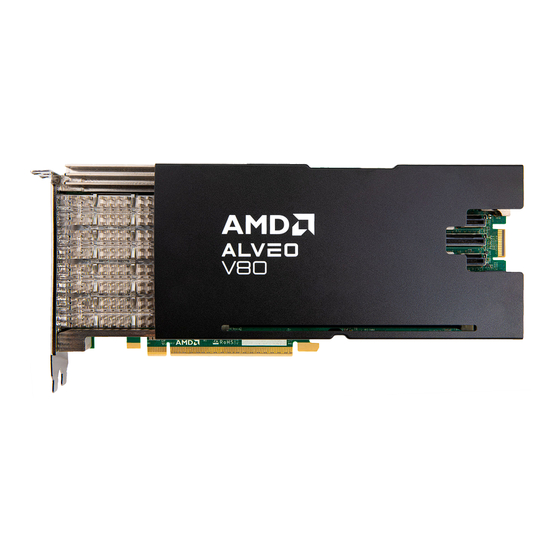

• Financial computing • Storage services Featuring the powerful AMD Versal™ XCV80 HBM series adaptive SoC, the Alveo V80 card packs high bandwidth memory (HBM2e) and 800 Gb/s of high-speed networking into a full- height ¾ length form factor dual-slot card, and is designed for deployment in a server on-prem or in the cloud. - Page 4 Chapter 1: Introduction Figure 1: Alveo V80 Card UG1617 (v1.0) May 8, 2024 Send Feedback Alveo V80 Card Installation Guide...
-
Page 5: Chapter 2: Accelerator Card Overview
Chapter 2: Accelerator Card Overview Chapter 2 Accelerator Card Overview Product Details The following table provides high-level product details. Table 1: Alveo V80 Card Product Details Specification A-V80-P64G-ES3-G (with 32 GB DIMM) Product SKU A-V80-P64G-PQ-G (with 32 GB DIMM) A-V80-P32G-PQ-G... -
Page 6: Minimum System Requirements
Design. The Alveo debug kit (ADK2) connector is for manufacturing support only. Minimum System Requirements The minimum system requirements for running the Alveo V80 data center accelerator cards are listed in the following table. Table 2: Minimum System Requirements Component... -
Page 7: Pcie Aux Power
Note: Alveo data center accelerator cards are designed to be installed into a data center server, where controlled air flow provides direct cooling. For card specifications, dimensions, list of card features, and block diagram, see the Alveo V80 Data Center Accelerator Cards Data Sheet (DS1013). - Page 8 No AUX power cable connected Two AUX power cables connected 300W Notes: QSFP cages, DDR, and DIMMs are not powered. Maximum card power is limited by the TDP given in Table UG1617 (v1.0) May 8, 2024 Send Feedback Alveo V80 Card Installation Guide...
-
Page 9: Chapter 3: Card Installation Procedures
• Halten sie ihren Arbeitsbereich und den Computer / Server sauber und frei von Ablagerungen. • Ziehen sie vor dem Öeffnen der Computer / Systemabdeckung das Netzkabel ab. UG1617 (v1.0) May 8, 2024 Send Feedback Alveo V80 Card Installation Guide... - Page 10 • Put the card down only on an antistatic surface such as the bag supplied in your kit. • If you are returning the card to AMD Product Support, place it back in its antistatic bag immediately. Attention aux Décharge Électrostatique (ESD) L'ESD peut endommager les composants électroniques lorsqu'ils sont mal manipulés, et peut...
-
Page 11: Before You Begin
• Legen sie die Karte nur auf einer antistatischen Oberfläche ab, z.B. dem antistatischen Beutel der mit dem Kit mitgeliefert wurde. • Wenn sie die Karte an den AMD Product Support zurücksenden, legen Sie sie bitte sofort wieder in den antistatischen Beutel. -
Page 12: Running Lspci
It is recommended that the fan speed is set to maximum before installing the card for the first time for sufficient cooling. Use caution when handling. For more information, see Alveo V80 Data Center Accelerator Cards Data Sheet (DS1013). -
Page 13: Appendix A: Additional Resources And Legal Notices
Additional Resources and Legal Notices Finding Additional Documentation Technical Information Portal The AMD Technical Information Portal is an online tool that provides robust search and navigation for documentation using your web browser. To access the Technical Information Portal, go to https:/ /docs.amd.com. -
Page 14: Support Resources
AMD to notify any person of such revisions or changes. THIS INFORMATION IS PROVIDED "AS IS." AMD MAKES NO REPRESENTATIONS OR WARRANTIES WITH RESPECT TO THE CONTENTS HEREOF AND ASSUMES NO RESPONSIBILITY FOR ANY INACCURACIES, ERRORS, OR OMISSIONS THAT MAY APPEAR IN THIS INFORMATION. - Page 15 Appendix A: Additional Resources and Legal Notices DISCLAIMS ANY IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR ANY PARTICULAR PURPOSE. IN NO EVENT WILL AMD BE LIABLE TO ANY PERSON FOR ANY RELIANCE, DIRECT, INDIRECT, SPECIAL, OR OTHER CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF ANY INFORMATION CONTAINED HEREIN, EVEN IF AMD IS EXPRESSLY ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
