Experience™ Series 800 Line Recumbent Bike (RBK)
Assembly Guide
Precor recommends at least two people for this installation. DO NOT
attempt assembly by yourself.
Follow the steps in the order listed in this assembly guide. Note the following:
IMPORTANT Before you fully tighten a fastener, check that its head is flush with the surface of the
equipment. If not, cross-threading may have occurred. DO NOT attempt to rework the assembly as
more damage to the equipment will occur. Contact customer support at www.precor.com.
• Assemble the equipment close to where you plan to use it.
• Assemble the equipment on a solid, flat surface so that it remains level and stable.
• Locate the equipment at least 19.7 inches (0.5 meter) away from walls or furniture
on either side of the equipment, and 19.7 inches (0.5 meter) away from objects
behind or in front of the equipment.
• DO NOT move the equipment without assistance.
• DO NOT connect power to the equipment until instructed to do so.
Required Tools
• 3/8-inch hex wrench • 7/16-inch open-end wrench (2)
• 1/4-inch hex wrench • #2 Phillips screwdriver
• 5/32-inch hex wrench • Wire cutter
Hardware Kit
Name
Socket head screw 5/16-inch x 3/4-inch
Flathead machine screw 1/4-inch x 5/8-inch (for console)
Flat washer 5/16-inch
Upright support mounting screw
Assemble the bike
Before you begin this procedure, retrieve the cables for the console that you plan to install on this exercise bike. The cables come with the console.
IMPORTANT DO NOT stretch, crimp, or damage the cables. Cables damaged by improper installation are not covered by the Precor Limited
Warranty.

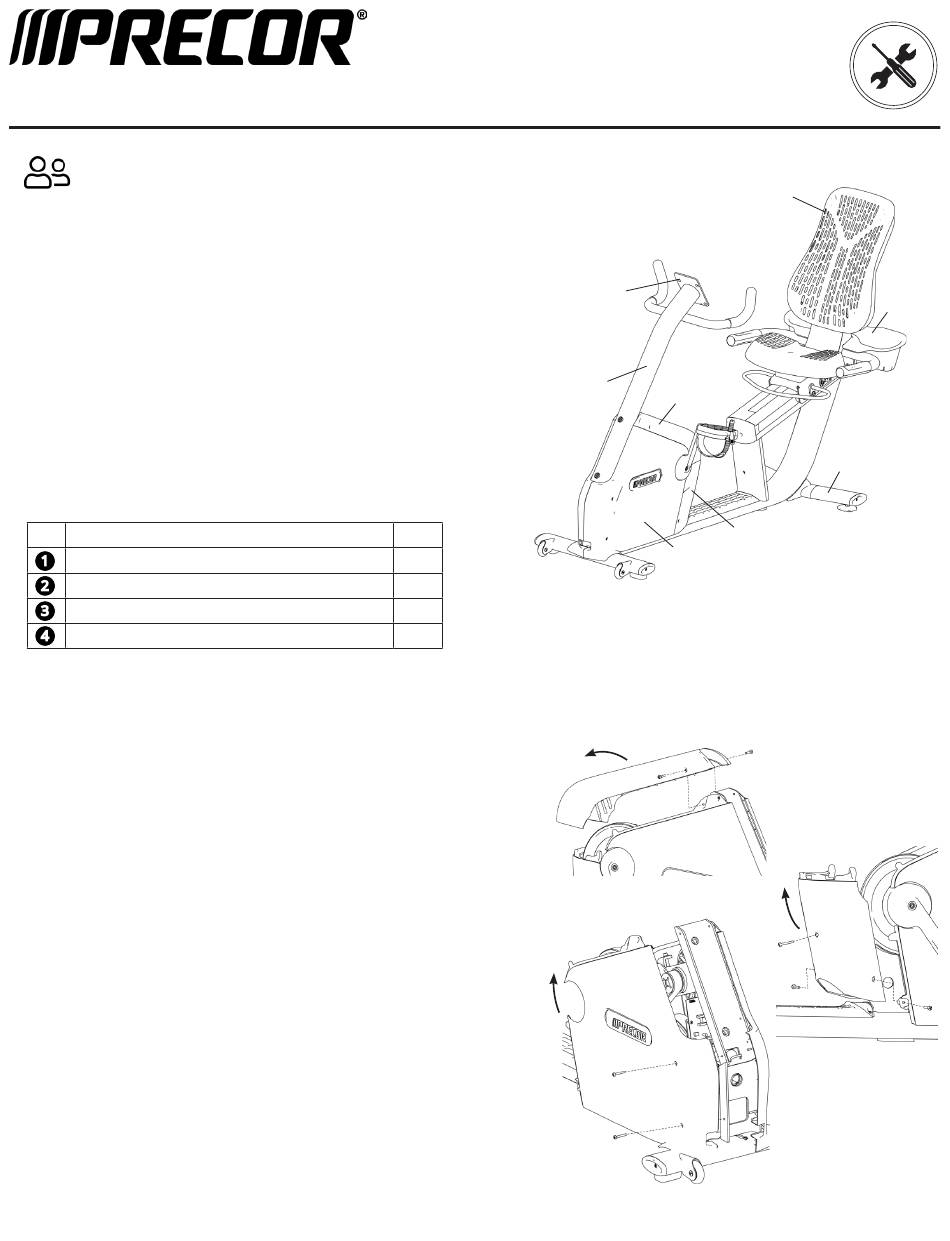

1. Remove the 2 self-tapping screws holding the top cover in place. Lift the cover
from its front edge first, then disengage its plastic tabs from the recesses on the
rear of the cover (Figure 1).
2. Remove the 3 self-tapping screws holding the rear cover in place, then lift it off
(Figure 2).
3. Remove the 2 self-tapping screws holding the right side cover in place, then pull
the cover to loosen it. Guide it around the pedal crank to remove it (Figure 3).
4. Inside the upright support channel, remove the tape holding the base unit data
cable and the heart rate sensor cable in place.
5. Feed the data and heart rate sensor cables upward through the upright support
and tape them to the top of the support.
For touchscreen consoles, continue to the Wire the bike for a touchscreen
console section.
For non-touchscreen consoles only, skip to the Attach the upright support
section to continue assembly.
©2023 Peloton Interactive, Inc.
Console
mount
Upright
support
Qty
4
4
4
2
Seat back
Top cover
Rear cover
Side cover
Figure 1
Figure 3
RBK 800 Assembly Guide | P/N 305028-101B ENU | 1 Sept 2023
Bottle
holder
Adjustable
foot
Figure 2
