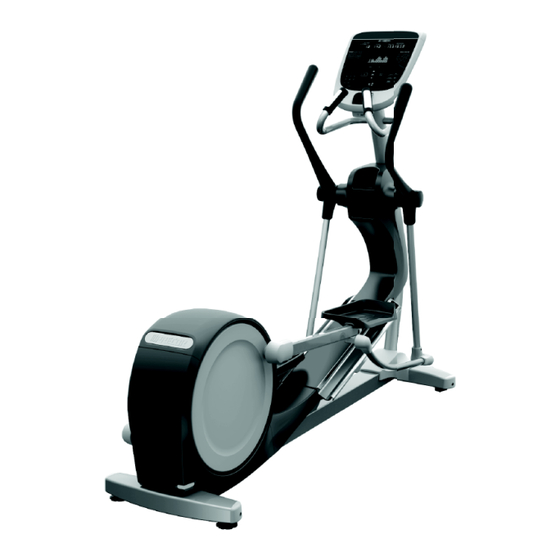

Precor CROSSTRAINER EFX 700 Series Getting Started Manual
  1. Manuals
  2. Brands
  3. Precor Manuals
  4. Elliptical Trainer
  5. Experience EFX 700 SERIES
  6. Getting started manual

Precor CROSSTRAINER EFX 700 Series Getting Started Manual

Hide thumbs Also See for CROSSTRAINER EFX 700 Series:

Advertisement

Table of Contents

This addendum accompanies your equipment documentation and is additional
information concerning the heart rate features for your equipment and console.
Important
The heart rate features are intended for reference only. They may not be accurate
for every user or at every speed and are not intended for use as a medical device.
Holding the heart rate handle touch sensor while exercising at higher intensity
may also decrease accuracy of the heart rate reading and is not recommended.
Please also read your product documentation and visit:
www.precor.com/en-us/customer-service/faq.
P/N 305324-101 rev A, ENU
©Precor Incorporated | October 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CROSSTRAINER EFX 700 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Precor CROSSTRAINER EFX 700 Series

Summary of Contents for Precor CROSSTRAINER EFX 700 Series

  • Page 1 Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read your product documentation and visit: www.precor.com/en-us/customer-service/faq. P/N 305324-101 rev A, ENU ©Precor Incorporated | October 2017...
  • Page 2 Instructional videos and complete EFX operating instructions are available at www.precor.com. Also available at precor.com are regularly-updated blog posts with more ideas about fitness routines and advice from trusted industry experts.

  • Page 3: Training And Exercising

    Before beginning any fitness program, see your physician for a thorough physical exam. Seek advice from your physician to learn the target heart rate appropriate for your fitness level. Read all safety and operating instructions included with your equipment. For more information, visit us at www.precor.com and look for your equipment model number.
  • Page 4 Experience™ Series 800 Line Elliptical Fitness Crosstrainer™ (EFX) Assembly Guide Equati on 1: E nglis h...

  • Page 5: Assembly Requirements

    800 Line EFX® Assembly Guide Follow the steps in the order listed in this assembly guide. For more product information, visit us at www.precor.com. WARNING At least two people are required to assemble the equipment. DO NOT attempt assembly by yourself.

  • Page 6: Tools And Hardware

    Tools and Hardware 3/16-inch Allen wrench 9/16-inch hex wrench (or socket) #2 Phillips screwdriver 1/2-inch hex wrench (or socket 7/16-inch open-end wrench Tape Moving Arms Hardware Kit Fixed Arms Hardware Kit Component Description Quantity Component Description Quantity 5/16-18 x 1-inch 5/16-18 x 1-inch Sems bolt Sems bolt...

  • Page 7: Begin Assembly

    Note For non-touchscreen consoles,the communication cable is pre-threaded. bolts (see Figure 2). Fully tighten all bolts (torque=180 in-lbs, 20 N-m). Important DO NOT stretch, crimp, or damage the cable. Cables damaged by improper installation will not be covered by the Precor Limited Warranty. Figure 2...
  • Page 8 To install side panels: Secure each side panel using four self-tapping screws for each panel. Make sure to fully tighten fasteners (torque = 35 in-lbs, 3.95 n-M.) Figure 3...
  • Page 9 WARNING DO NOT allow cables to touch any moving parts around the lift motor body—lift screw, yoke, or ramp. Run the ramp through its movement path a few times and have someone else watch to make sure no cables are caught up or hanging loosely.
  • Page 10 WARNING DO NOT allow cables to touch any moving parts around the lift motor body—lift screw, yoke, or ramp. Run the ramp through its movement path a few times and have someone else watch to make sure no cables are caught up or hanging loosely.
  • Page 11 To install lower frame cover: Lift up the lower frame cover, about an inch from the frame. Figure 6a Insert screws for lower frame Figure 6b Close up to show detail Install lower frame screws (see Figure 6a). Press the side panels in place, ensuring the latches under the arrows on each panel are secured.
  • Page 12 To install lower panel and front cover: Position the cover plate into the center opening of the lower panel. Install the coax coupler, star washer, and nut, into the jack plate on the lower panel and tighten (see Figure 7). Connect the coax cable to the inside end of the coax coupler .
  • Page 13 To install yoke cover and shelf: Attach the yoke cover to the back of the base mount using two screws (see Figure 10). Note Make sure the small latches engage with the side covers. Fully tighten fasteners (torque for = 300 in-lbs, 34 N-m). Position the shelf in to the tabs near the top of the yoke cover then, secure the anchors over the bar using two screws Figure 10 4.
  • Page 14 To install moving arms: To install fixed arms: Insert the shaft of the moving arm to the center mount and align pre-installed set Install the console. For instructions, refer to the console guide included in the console box. screws to the shaft (see Figure 12). Fully tighten all screws, including pre- installed ones (torque = 300 in-lbs, 34 N-m).
  • Page 15 To attach the cup holder: To complete the installation: Position the cup holder on top of the lower shelf, making sure to catch the Position the badge plate on the front cover and press into place (see Figure 15). bottom latch in the shelf component (see Figure 14). Figure 15 Wrap the rubber gasket on top of the badge plate from the back of the display mount so the split is pointed toward the front.
  • Page 16 800 Line EFX® Assembly Guide | P/N 304293-101 rev C, ENU ©2016 Precor Incorporated | October 2016...
  • Page 17 Cardio Equipment Quick Reference Maintenance Guide...
  • Page 18 Cardio Equipment Quick Reference Maintenance Guide For complete maintenance and cleaning information, visit us at www.precor.com. For torque settings, review the product Assembly Guide included with your equipment, or go to www.precor.com for more information. Important The owner is responsible for maintaining Precor equipment in their facility based on the recommendations below and any accompanying material.

  • Page 19: Monthly Maintenance Tasks

    Clean the drive belts and pulleys with a small wire brush.  Vacuum out any debris, being careful not to bring the vacuum cleaner nozzle too close to any circuit board. Precor recommends you use a vacuum that protects ...

  • Page 20: Quarterly Maintenance Tasks

    Check tension of the running belts and adjust if necessary. Inspect belts for excessive wear. • Perform software diagnostics and check LED function. • AMT only Inspect the gas spring shock. Contact Precor Customer Support if you have questions. • EFX only Check the belt tension. •...

  • Page 21: Error Codes

    The following is a list of error codes and how to resolve the issue: Error Codes Action Equipment Turn the equipment off and on. Repeat twice. If the message still appears, contact a Precor certified 00-09, 11-16, 50 AMT, elliptical, treadmill, RBK, UBK, and CLM service technician.

  • Page 22: Moving The Equipment

    Important The plastic end caps on Precor treadmills are designed specifically for lifting. Working with your assistant, place a hand under each side of the end cap. Then, using proper lifting techniques, lift the rear of the treadmill so that it rolls on its front wheels.
  • Page 23 Important Failure to align the belt may cause the belt to tear or fray, which is not covered by the Precor Limited Warranty. Proper alignment allows the belt to remain centered and ensures smooth operation. Realigning the belt takes a few simple adjustments. If you are unsure about this procedure, contact Precor Customer Support.
  • Page 24 Adjust the running belt (treadmill only) If you are unsure about adjusting the running belt, contact Precor Customer Support. CAUTION Take special care when aligning the running belt. The treadmill will not stop immediately if an object becomes caught in the belt or rollers. Turn OFF the treadmill while adjusting or working near the rear roller. DO NOT wear loose clothing or allow your hair to hang loose during this procedure.
  • Page 25 The treadmill must remain out of service until the stop switch is repaired. Place an "out of order" sign on the treadmill and contact Precor Customer Support. 6. Turn the treadmill power switch to Off. The On/Off switch is located at the front of the treadmill.
  • Page 26 13. Grasp both sides of the towel and run it up and down the length of the belt several times to clean the top of the deck before removing it from beneath the belt. 14. Turn the power switch to On and return the treadmill to normal use. Maintenance Guide P/N 305034-101 rev A, ENU ©2016 Precor Incorporated April 2016...
  • Page 28          ...
  • Page 29                          ...
  • Page 32   ...
