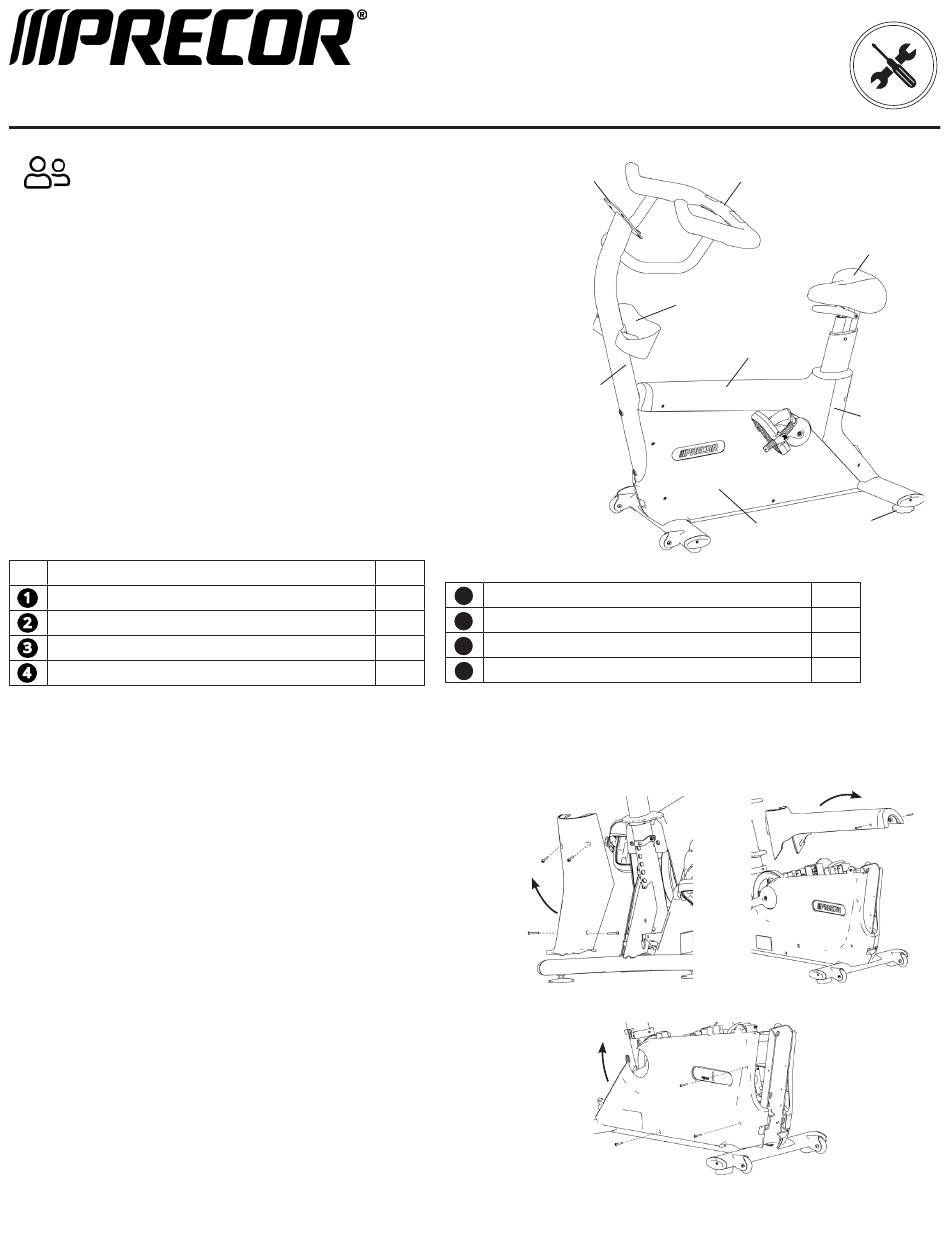

Precor Experience 800 Series Assembly Manual

Experience™ Series 800 Line Upright Bike (UBK)
Assembly Guide
Precor recommends at least two people for this installation. DO NOT
attempt assembly by yourself.
Follow the steps in the order listed in this assembly guide. Note the following:
IMPORTANT Before you fully tighten a fastener, check that its head is flush with the
surface of the equipment. If not, cross-threading may have occurred. DO NOT attempt
to rework the assembly as more damage to the equipment will occur. Contact customer
support at www.precor.com.
• Assemble the equipment close to where you plan to use it.
• Assemble the equipment on a solid, flat surface so that it remains level and
stable.
• Locate the equipment at least 19.7 inches (0.5 meter) away from walls or
furniture on either side of the equipment, and 19.7 inches (0.5 meter) away
from objects behind or in front of the equipment.
• DO NOT move the equipment without assistance.
• DO NOT connect power to the equipment until instructed to do so.
Required Tools
• 3/8-inch hex wrench • 7/16-inch open-end wrench (2)
• 1/4-inch hex wrench • #2 Phillips screwdriver
• 5/32-inch hex wrench • Wire cutter
Hardware Kit
Name
Socket head screw 5/16-inch x 3/4-inch
Flathead machine screw 1/4-inch x 5/8-inch (for console)
Flat washer 5/16-inch
Upright support mounting screw
Assemble the upright bike
Before you begin this procedure, retrieve the cables for the console that you plan to install on this exercise bike. The cables come with the console.
IMPORTANT DO NOT stretch, crimp, or damage the cables. Cables damaged by improper installation are not covered by the Precor Limited
Warranty.
1. Using a #2 Phillips screwdriver, remove the 4 self-tapping screws holding
the rear cover in place. Pull the rear cover back to remove it and set it aside
(Figure 1).
2. Remove the 2 self-tapping screws holding the top cover in place, then lift it
off and set it aside (Figure 2).
3. Remove the 3 self-tapping screws holding the left side cover in place, then
pull the cover away from the equipment frame. Guide the cover around the
pedal crank, then remove it and set it aside (Figure 3).
4. Remove the tape holding the data cable in place inside the upright support
channel.
For touchscreen consoles, continue to the Wire the bike for a touchscreen
console section.
For non-touchscreen consoles only, skip to the Attach the upright
support section to continue assembly.
©2023 Peloton Interactive, Inc.
Console
mount
Upright
support
Qty
5 5
Self-tapping screw #8 x 5/8-inch
4
6 6
M8 nuts
4
7 7
Washers, flat 8 mm
4
8 8
Seat
2
UBK 800 Assembly Guide | P/N 305026-101B ENU | 12 September 2023
Handle bars
Bottle
holder
Top cover
Side cover
Figure 1
Figure 3
Seat
Rear cover
Adjustable
foot
2
3
3
1
Figure 2
