User manual

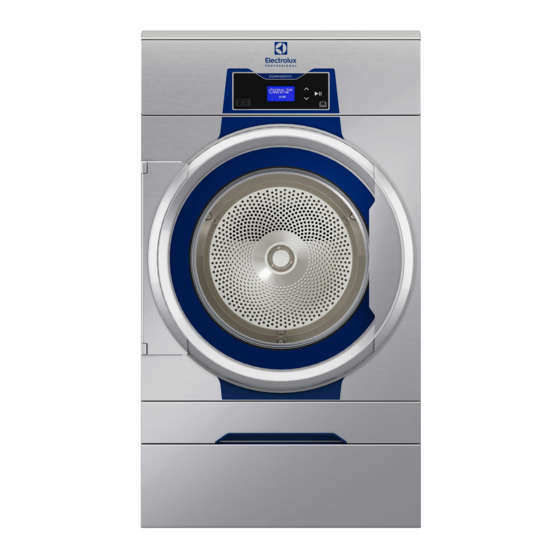

Tumble dryer
TD6–11
Type N1...
438921530/EN
Original instructions
2024.06.20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TD6-11 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Electrolux Professional TD6-11

  • Page 1 User manual Tumble dryer TD6–11 Type N1... 438921530/EN Original instructions 2024.06.20...
  • Page 3: Table Of Contents

    Contents Contents 1 Safety Precautions ..........................5 General information ........................6 Commercial use only........................6 Copyright ..........................6 Symbols............................7 2 Warranty terms and exclusions......................8 3 Operating panel ..........................9 4 Program description ..........................10 General...........................10 Program description ......................... 11 5 Handling ............................14 Load ............................14 How to start the machine ......................16 Additional functions........................17 When program has ended ......................18 6 Error codes ............................19...
  • Page 5: Safety Precautions

    User manual 1 Safety Precautions • Servicing shall be carried out only by authorized personnel. • Only authorized spare parts, accessories and consumables shall be used. • The machine is not to be used if industrial chemicals have been used for cleaning. •...
  • Page 6: General Information

    The machine/machines covered by this manual is/are made for commercial and industrial use only. 1.3 Copyright This manual is intended solely for consultation by the operator and can only be given to third parties with the permis- sion of Electrolux Professional AB company.
  • Page 7: Symbols

    User manual 1.4 Symbols Caution Caution, hot surface Caution, high voltage Warning, risk of fire / flammable material Danger, crush hazard Read the instructions before using the machine...
  • Page 8: Warranty Terms And Exclusions

    Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time.
  • Page 9: Operating Panel

    User manual 3 Operating panel fig.X00727A Display Up- and down arrows that are used to scroll up and down through the menus on the display. Start- and pause button...
  • Page 10: Program Description

    User manual 4 Program description 4.1 General The machine is equipped with a number of programs adapted to the range of use to which the machine is intended — different markets use different programs. The following program description is a short description of some exam- ples of programs that can be used.
  • Page 11: Program Description

    User manual 4.2 Program description There are two types of programs, automatic programs and time programs. • Automatic programs has moisture detection and will stop when selected dryness is achieved. • Time programs has no moisture detection and will stop when the preset or selected time has ended. During a drying cycle, when the square in the lower right corner is fully ticked, it indicates that the heating unit is ac- tive / ON.
  • Page 12: Automatic Programs

    Check that there are no moist areas in the load after finished drying process. Avoid entanglement of loaded items during drying process. To achieve disinfection of the laundry, in Electrolux Professional washing machines, it is necessary to use Global Disinfection programs during drying.
  • Page 13: Time Programs

    User manual Program name Care label Program description and display symbol Normal temperature. NORMAL TEMP LARGE TEXTILES The program will stop automatically when the fabric is dry. This program is suitable when drying large fabrics such as bed sheets, table cloths, curtains etc. The program is built to prevent the fabric from tangling together.
  • Page 14: Handling

    User manual 5 Handling 5.1 Load Note! Remove all objects from pockets and make sure there are no metal objects such as screws, pins etc. left. Metal objects might cause damage to the drum. Make sure the filter is clean. fig.X03153...
  • Page 15 User manual Load the goods into the machine and close the door. The recommended maximum load is 9 kg. fig.X03156...
  • Page 16: How To Start The Machine

    User manual 5.2 How to start the machine Automatic programs Select program with the up- and down arrows. Start the machine by pressing Time programs Select program with the up- and down arrows. Start the machine by pressing After start it is possible to change the time for the selected program: •...
  • Page 17: Additional Functions

    User manual 5.3 Additional functions There is a menu with additional functions available for selection after start. When pressing the menu will ap- pear on the display. Select from the menu with the up- and down arrows and press to activate. Note! Some of the functions may not be available or active on your machine.
  • Page 18: When Program Has Ended

    User manual 5.4 When program has ended Note! For the best possible drying result it is important to empty the machine as soon as the program has ended. If the machine is not emptied as soon as the program has ended the drum will rotate in short intervals in order to keep the goods from being wrinkled.
  • Page 19: Error Codes

    User manual 6 Error codes A fault in the program or in the machine is indicated by an error code on the display. Some of these error codes can be solved easily without contacting service personnel. Error Text Cause/Action code 12:9 HEAT PUMP LOW PRESSURE The machine indicates the low pressure switch for heat pump is activated.
  • Page 20: Maintenance

    User manual 7 Maintenance 7.1 General It is the responsibility of the owner of the machine/the laundry manager to make sure that maintenance is periodically performed. Check the “Maintenance manual” for a complete guide on the maintenance to be performed by the owner of the ma- chine/the laundry manager and also by qualified service personnel.
  • Page 21 User manual Check the filter and filter drawer. Clean if necessary. fig.X03153 Remove any lint and dust around the machine.
  • Page 22: Second Lint Filter

    User manual 7.4 Second lint filter There are two warning messages indicating that the second filter shall be cleaned: 1. “CLEAN FIRST AND SECOND FILTER.” 2. “CLEAN FIRST AND SECOND FILTER. IF NOTICE REMAINS, CONTACT RESPONSIBLE FOR CHANGING THE SPECIAL FILTER.” If the first and second filter has been cleaned but the warning message remain on the next drying cycle, the special filter must be cleaned or replaced.
  • Page 23: Disposal Information

    User manual 8 Disposal information 8.1 Disposal of appliance at end of life Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of the structure that can give or break during scrapping. The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g.
  • Page 26 Electrolux Professional AB 341 80 Ljungby, Sweden www.electroluxprofessional.com...
