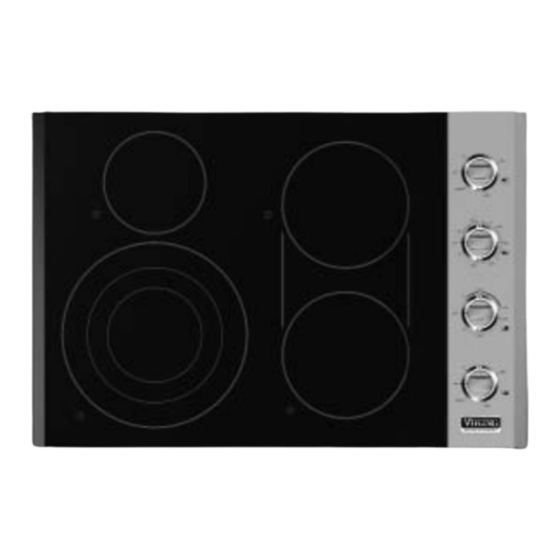

- Page 1 Installation GUIDE ® 5 SERIES Built-In Electric Cooktops Built-In Induction Cooktops VEC530 / CVEC530 / VEC536 / CVEC536 VECU530 / CVECU530 / VECU536 / CVECU536 VIC530 / CVIC530 / VIC536 / CVIC536 VICU530 / CVICU530 / VICU536 / CVICU536...
-
Page 2: Table Of Contents
Table of Contents Warnings & Important Safety Instructions ___________________________3 Specifi cations /Dimensions (Electric Cooktops) ______________________4 Specifi cations /Dimensions (Induction Cooktops) ____________________8 Cutout Dimensions _____________________________________________12 Clearance Dimensions ___________________________________________13 Electrical Requirements __________________________________________15 General Information _____________________________________________16 Installation _____________________________________________________16 Final Preparation _______________________________________________17 Performance Checklist ___________________________________________17 Service &... -
Page 3: Burn Hazard
IMPORTANT – Please Read and Follow! • DO NOT remove permanently affi xed labels, warnings, or plates from product. This may void the warranty. • Please observe all local and national codes and ordinances. Installation must conform with local codes and National Fuel Gas Code ANSIZ233.1/NFPA-54–latest edition. •... -
Page 4: Specifi Cations /Dimensions (Electric Cooktops)
Specifi cations (VEC Electric Cooktops) VEC Electric Cooktop Description 30” W. - 76 cm Wide 36” W. - 91 cm Wide Overall width 30-3/4” (78.1 cm) 36-3/4” (93.3 cm) Overall height from bottom To top of knobs 4-3/4” (12.1 cm) To top of cooking surface 3-1/2”... - Page 5 Dimensions (VEC Electric Cooktops) 30” W. (76 cm) Cooktop 36” W. (91 cm) Cooktop - 3 / ( 7 8 4 ” . 1 c ” . 4 c ( 5 3 - 3 / ( 9 3 4 ” .
- Page 6 Specifi cations (VECU Electric Cooktops) VECU Electric Cooktop Description 30” W. - 76 cm Wide 36” W. - 91 cm Wide Overall width 30-3/4” (78.1 cm) 36-3/4” (93.3 cm) Overall height from bottom To top of knobs 4-1/2” (11.4 cm) To top of cooking surface 3-1/2”...
- Page 7 Dimensions (VECU Electric Cooktops) 30” W. (76 cm) Cooktop 36” W. (91 cm) Cooktop - 3 / ( 7 8 4 ” . 1 c ” . 4 c ( 5 3 - 3 / ( 9 3 4 ” .
-
Page 8: Specifi Cations /Dimensions (Induction Cooktops)
Specifi cations (VIC Induction Cooktops) VIC Induction Cooktop Description 30” W. - 76 cm Wide 36” W. - 91 cm Wide Overall width 30-3/4” (78.1 cm) 36-3/4” (93.3 cm) Overall height from bottom To top of knobs 4” (10.2 cm) To top of cooking surface 3”... - Page 9 Dimensions (VIC Induction Cooktops) 30” W. (76 cm) Cooktop - 3 / ( 7 8 4 ” 36” W. (91 cm) Cooktop . 1 c ” . 4 c ( 5 3 - 3 / ( 9 3 4 ” .
- Page 10 Specifi cations (VICU Induction Cooktops) VICU Induction Cooktop Description 30” W. - 76 cm Wide 36” W. - 91 cm Wide Overall width 30-3/4” (78.1 cm) 36-3/4” (93.3 cm) Overall height from bottom To top of knobs 4-1/16” (10.3 cm) To top of cooking surface 3”...
- Page 11 Dimensions (VICU Induction Cooktops) 30” W. (76 cm) Cooktop 36” W. (91 cm) Cooktop - 3 / ( 7 8 4 ” . 1 c ” . 4 c ( 5 3 - 3 / ( 9 3 4 ” .
-
Page 12: Cutout Dimensions
Cutout Dimensions Electric 30”W. MODELS 36”W. MODELS 28-7/8” (73.3 cm) min. to 34-7/8” (88.6 cm) min. to 29-1/8” (74.0 cm) max. 35-1/8” (89.2 cm) max. 19-1/4” (48.9 cm) min. to 19-3/4” (50.2 cm) max. Induction 30”W. MODELS 36”W. MODELS 28-1/2” (72.4 cm) min. to (87.6 cm) min. -
Page 13: Clearance Dimensions
Headline Clearance Dimensions PROXIMITY TO SIDE CABINET Minimum Clearances from Adjacent INSTALLATION Combustible Construction • The cooktop may be installed directly to • Above countertop 36” (91.4 cm) minimum existing base cabinets. • Side 6” (15.2 cm) • The cooktop CANNOT be installed •... - Page 14 Headline Clearance Dimensions INTERIOR CABINET CLEARANCES INDUCTION COOKTOPS IMPORTANT: The electronic components for the induction elements in the cooktop need air circulation. To ensure long life of electronic components, it is required that 1-1/2 (3.8 cm) or more open space remains between the bottom of the cooktop and any shelf underneath.
-
Page 15: Electrical Requirements
Headline Electrical Requirements WARNING WARNING BURN HAZARD The electrical power to the unit must be shut off while line The use of cabinets for storage connections are being made. above the appliance may result Failure to do so could result in serious in potential burn hazard. -
Page 16: General Information
Headline General Information READ AND FOLLOW ALL WARNING • When removing the cooktop for service AND CAUTION INFORMATION WHEN and/or cleaning, disconnect AC power INSTALLING THIS APPLIANCE. supply. • Electrical requirements are listed in the • Keep appliance area clear and free from product specifi... -
Page 17: Final Preparation
Headline Final Preparation • Some stainless steel parts may have plastic • If it is necessary to scrape stainless steel to protective wrap which must be peeled off. remove encrusted materials, soak with hot, • All stainless steel body parts should be wet cloths to loosen the material, then use wiped with hot, soapy water and with a a wood or nylon scraper. -
Page 18: Service & Registration
DO NOT repair or replace any part of the appliance unless specifi cally recommended in the manual. All other servicing should be referred to a qualifi ed technician. Contact Viking Range, LLC, 1-888-(845-4641), for the nearest service parts distributor in your area or write to:... - Page 20 Viking Range, LLC 111 Front Street Greenwood, Mississippi 38930 USA (662) 455-1200 For product information, call 1-888-(845-4641) or visit our web site at vikingrange.com in the US or brigade.ca in Canada F21271E EN (013117)
