STATIONARY BATTERY INSTALLATION
AND OPERATING INSTRUCTIONS
IN REFERENCE TO THIS MANUAL:
– "Battery" is defined as an individual 12-volt unit.
– "Battery string" is defined as a series connected elec-
trical system comprised of batteries
(individual 12-volt units).
SAFETY PRECAUTIONS
Although all valve regulated batteries have the
electrolyte immobilized within the battery, the
electrical hazard associated with batteries still exists.
Work performed on these batteries should be
done with the tools and the protective equipment
listed below. VRLA battery installations should be
supervised by personnel familiar with batteries and
battery safety precautions.

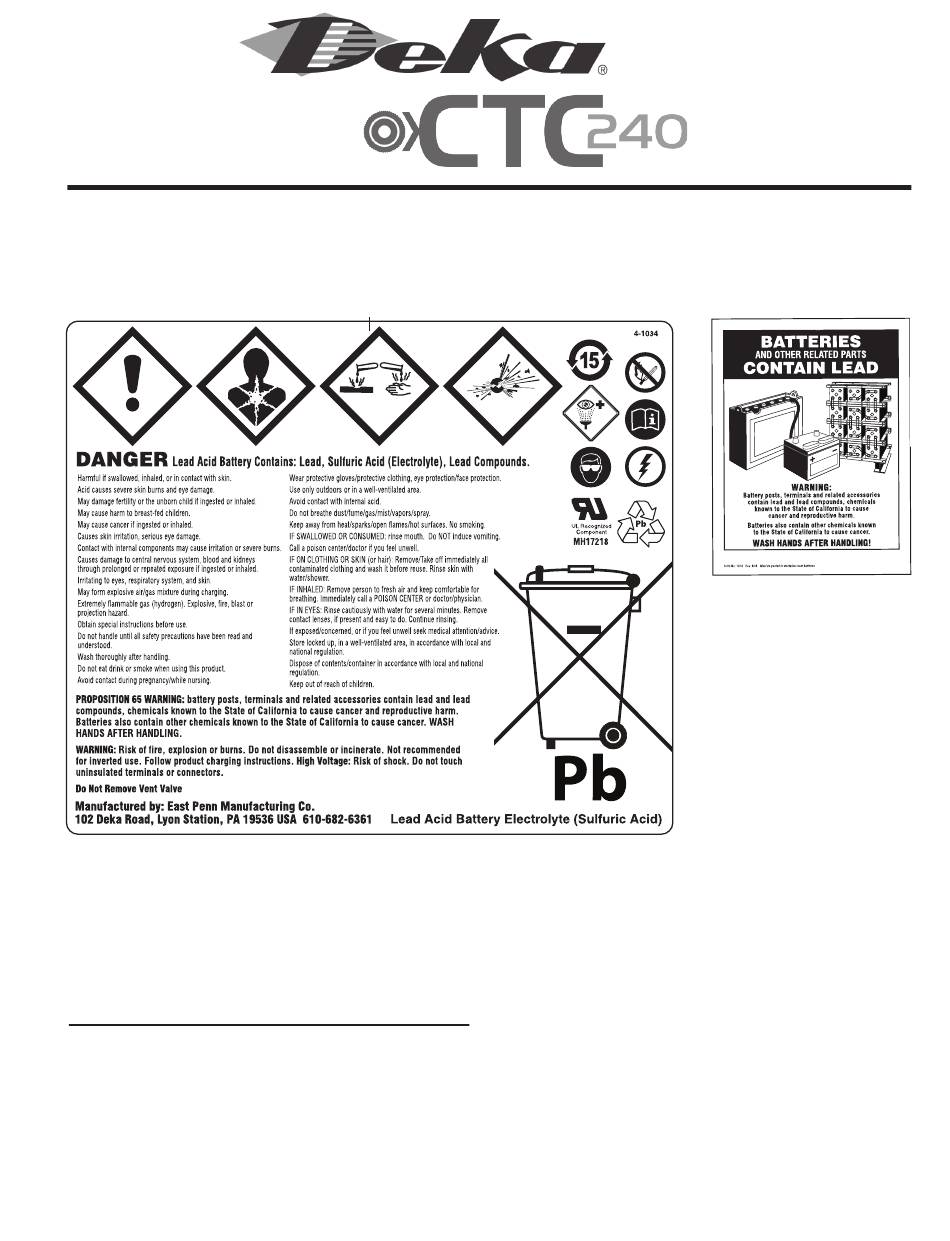

WARNING: Risk of fire, explosion or burns. Do not
disassemble, heat above 65°C, or incinerate .
Protective Equipment
Although VRLA batteries can vent or leak small
amounts of electrolyte, electrical safety is the principle
but not the only concern for safe handling. Per IEEE
1188 recommendations, the following minimum set
of equipment for safe handling of the battery and
protection of personnel shall be available:
1. Safety glasses with side shields, or goggles, or face
shields as appropriate. (Consult application specific
requirements)
2. Electrically insulated gloves, appropriate for
the installation.
3. Protective aprons and safety shoes.
4. Portable or stationary water facilities in the battery
vicinity for rinsing eyes and skin in case of contact
with acid electrolyte.
5. Class C fire extinguisher.
6. Acid neutralizing agent.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Deka CTC240
Summary of Contents for Deka CTC240
- Page 1 STATIONARY BATTERY INSTALLATION AND OPERATING INSTRUCTIONS IN REFERENCE TO THIS MANUAL: Protective Equipment Although VRLA batteries can vent or leak small – “Battery” is defined as an individual 12-volt unit. amounts of electrolyte, electrical safety is the principle – “Battery string” is defined as a series connected elec- but not the only concern for safe handling.
-
Page 2: Receiving And Storage
RECEIVING & STORAGE Protective Equipment cont. 7. Adequately insulated tools (as defined by ASTM F1505 Receiving Inspection “Standard Specification for Insulated and Insulating Hand Tools”). Upon receipt, and at the time of actual unloading, 8. Lifting devices of adequate capacity, when required. each package should be visually inspected for any possible damage or electrolyte leakage. -
Page 3: Installation
East Penn will not be liable for damage or injury as a result of mishandling or misuse of the product. DEKA CTC BATTERIES ARE TESTED AND APPROVED TO BE INSTALLED AND OPERATED IN THEIR UPRIGHT POSITION. TOP TERMINAL BATTERY Terminals –... -
Page 4: Battery Assembly
Venting SYSTEM OPERATIONS Under normal operation, VRLA batteries emit hydro- Charger Voltage gen gas, which is combustible at certain concentra- tions. Proper ventilation should be provided per IEEE These batteries are designed for continuous 1187 and/or local codes. Some batteries are designed float applications. -
Page 5: Record Keeping
Battery Operation cont. READINGS cont. The battery string operating temperature should 5. Terminal connections should be checked to verify not exceed 95°F (35°C) and should never exceed that the installer did torque all connections properly 105°F (40.5°C) for more than an eight-hour period. to 100 in lb +/- 5. -
Page 6: Maintenance
MAINTENANCE Battery Cleaning Do not use any chemical compounds to clean Always wear eye protection when working on or near batteries. Batteries, cabinets, and racks, shall batteries. Keep sparks and open flames away from only be cleaned with: clear water, a mixture of batteries at all times. - Page 7 APPENDIX A REFRESH RECORD FORM Date of EPM Order Number* Pallet ID Number Individual Performing Test (Full Name) Refresh Duration Refresh Information within 1 hour of Information Prior to Refresh Model Refresh Completion Number Notes & Comments Battery Battery Date Charging Battery Serial...
- Page 8 APPENDIX B VOLTAGE COMPENSATION CHART °C Float Equalize °F >35 13.38 14.28 >95 13.39 14.29 93.2 13.40 14.30 91.4 13.42 14.32 89.6 13.43 14.33 87.8 13.44 14.34 86.0 13.45 14.35 84.2 13.46 14.36 82.4 13.48 14.38 80.6 13.49 14.39 78.8 13.50 14.40 77.0...
- Page 9 APPENDIX C DEKA CTC CHARGE CURRENT LIMITS Max. Charge Min. Charge Battery Type Current (A) Current (A)** CTC240 17.2 ** = Using minimum charge current will extend recharge time and increase risk of battery being undercharged...
- Page 10 APPENDIX D BATTERY MAINTENANCE REPORT Inspection Date _____________________________________________________________________ No. of Units/String __________________ Company ___________________________________________________________________________ Type _______________________________ Address ____________________________________________________________________________ Date New __________________________ Battery location and/or number ______________________________________________________ Date Installed _______________________ Individual Charger Output _____________________ Amp Air Temperature ______________________°F Battery Readings Total Battery String Voltage ________________ Panel Meter Volts ______________________ Unit Ohms or...
- Page 12 e-mail: reservepowersales@dekabatteries.com www.dekabatteries.com East Penn Manufacturing Co. Lyon Station, PA 19536-0147 Phone: 610-682-3263 Fax: 610-682-4781 All data subject to change without notice. No part of this document may be copied or E.P.M. Form No. 2656 08/22 © 2022 by EPM Printed in U.S.A. reproduced, electronically or mechanically, without written permission from the company.
