Deka Unigy I 12AVR-125L Installation And Operating Instructions

V A L V E - R E G U L A T E D B A T T E R I E S
INSTALLATION AND OPERATING INSTRUCTIONS
HIGH
VOLTAGE...
SHIELD
RISK OF SHOCK.
EYES.
DO NOT TOUCH
EXPLOSIVE GASES
UNINSULATED
TERMINALS OR CAN CAUSE BLIND-
CONNECTORS. NESS OR INJURY.
DO NOT REMOVE VENT VALVE.
WARRANTY VOID IF VENT VALVE IS REMOVED.
SEE INSTALLATION, MAINTENANCE AND OPERATION
INSTRUCTIONS FOR IMPORTANT SAFETY PRECAUTIONS.
SAFETY PRECAUTIONS
Although most valve-regulated batteries have the elec-
trolyte immobilized within the cell, the electrical hazard
associated with batteries still exists. Work performed on
these batteries should be done with the tools and the
protective equipment listed below. Valve-regulated
battery installations should be supervised by personnel
familiar with batteries and battery safety precautions.
Protective Equipment
To assure safe battery handling, installation and
maintenance, the following protection equipment
should be used:
1. Safety glasses or face shield
2. Acid-resistant gloves
3. Protective aprons and safety shoes
4. Proper lifting devices
5. Properly insulated tools
Procedures
The following safety procedures should be followed
during installation: (Always wear safety glasses or
face shield.)
1. Under normal operating conditions, they do not present
any acid danger. However, if the battery jar or cover
SPECIFICATIONS
Product Nominal
Code Voltage
12AVR-125L 12V
-
12AVR-125LLP 12V
-
12AVR-145L 12V
-
12AVR-145LLP 12V
-
®
DANGER
FLUSH EYES
IMMEDIATELY
WITH WATER.
NO
SULFURIC ACID
•SPARKS
CAN CAUSE
•FLAMES
BLINDNESS OR
•SMOKING SEVERE BURNS.
VENTILATE WELL WHEN IN AN ENCLOSED
SPACE AND WHEN CHARGING.
REPAIR SHOULD BE PERFORMED ONLY
BY A QUALIFIED SERVICE TECHNICIAN.
Ampere Ampere
Hours Hours
@ 8-hour @ 10-hour
Rate Rate
120 125
120 125
145 150
145 150

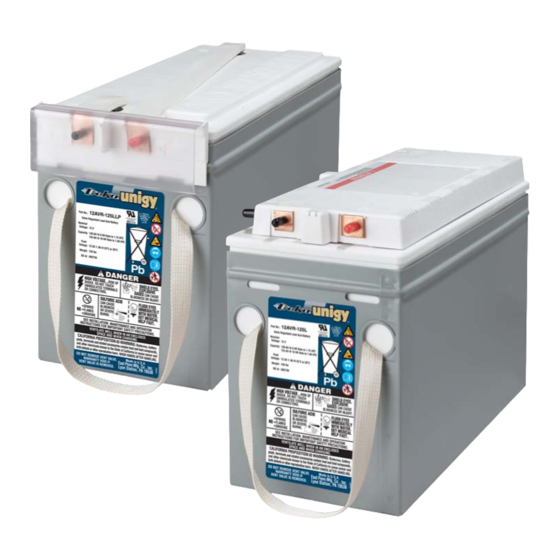

12AVR-125L/LLP
12AVR-145L/LLP
GET
California
MEDICAL
Proposition
HELP
FAST.
65 Warning
is damaged, acid could be present.
Sulfuric acid is harnful to the skin and eyes. Flush
affected area with water immediately and consult a
physician if splashed in the eyes.
2. Prohibit smoking and open flames, and avoid arcing in
the immediate vicinity of the battery.
3. Do not wear metallic objects, such as jewelry, while
working on batteries.
4. Keep the top of the battery dry and clear of all tools and
other foreign objects.
5. Provide adequate ventilation (per IEEE standard 1187
and/or local codes) and follow recommended charging
voltages.
6. Extinguishing media: Class ABC extinguisher.
Note: CO may be used but not directly on the cells
2
due to thermal shock and potential cracking of cases.
7. Never remove or tamper with pressure relief valves.
Warranty void if vent valve is removed.
8. Inspect all flooring and lifting equipment for functional
adequacy.
9. Adequately secure battery modules, racks, or cabinets
to the floor.
10. Connect support structure to ground system in accor-
dance with applicable codes.
Length Width
16.82 in. 6.97 in.
427.2 mm 177.0 mm
17.90 in. 6.97 in.
454.7 mm 177.0 mm
16.82 in. 6.97 in.
427.2 mm 177.0 mm
17.90 in. 6.97 in.
454.7 mm 177.0 mm
1
Batteries, battery posts, terminals and
related accessories contain lead and
lead compounds, and other chemicals
known to the state of California to
cause cancer and birth defects or
other reproductive harm.
Wash hands after handling!
Total
Height
Weight
10.10 in. 120lbs.
256.5 mm 54.4 kg
9.36 in. 120lbs.
237.7 mm 54.4 kg
10.10 in. 100lbs.
256.5 mm 45.4 kg
9.36 in. 100lbs.
237.7 mm 45.4 kg
Acid
Volume
2 gal.
7.57 L
2 gal.
7.57 L
2.2 gal.
8.25 L
2.2 gal.
8.25 L
