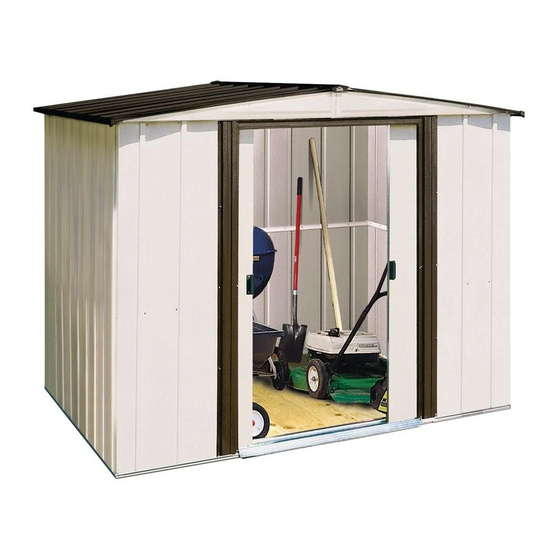

Arrow Storage Products NP8667 Owner's Manual & Assembly Manual

8' x 6' nominal size
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
717971217
Owner's Manual
& Assembly Guide
Gloves must be worn
at all times to reduce
risk of injury!
Customer Service:
1-800-851-1085
assist@arrowsheds.com
BUILDING DIMENSIONS
†
Approx.
Size
8' x 6'
43 Sq. Ft. 255 Cu. Ft.
2,4 m x 1,7 m
4,0 m
* See Inside for Detailed Safety Information.
or
†
Size rounded off to the nearest foot
Exterior Dimensions
Storage
(Roof Edge to Roof Edge)
Area
Width
99 3/4"
2
7,2 m 3
253,4 cm
Model No. NP8667
Depth
Height
Width
71 1/4"
74 7/8"
94 3/4"
181,0 cm
190,2 cm
240,7 cm
www.arrowsheds.com
SA8667FB
SE8667
SE8667EU
8' x 6'
Base
97 1/2" x 68 3/4"
Size
247,7 cm x 174,6 cm
For proper base construction see page 12
Interior Dimensions
(Wall to Wall)
Depth
Height
66"
73 5/8"
167,6 cm
187,0 cm
01DP
NP8667H8
Nominal Size
Door
Opening
Width
Height
43 1/2"
65"
110,5 cm
165,1 cm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NP8667 and is the answer not in the manual?

Questions and answers

Related Manuals for Arrow Storage Products NP8667

Summary of Contents for Arrow Storage Products NP8667

  • Page 1 717971217 01DP Owner’s Manual & Assembly Guide www.arrowsheds.com NP8667H8 Model No. NP8667 SA8667FB SE8667 Gloves must be worn at all times to reduce risk of injury! SE8667EU 8’ x 6’ Nominal Size Customer Service: 1-800-851-1085 Base 97 1/2” x 68 3/4”...
  • Page 2 SAFETY PRECAUTIONS... Safety precautions MUST be followed at all times throughout the construction of your building! Practice caution with the tools being used in the Care must be taken when handling various pieces assembly of this building. Be especially familiar with of your building since many contain sharp edges.

  • Page 3: What You Need

    ASSEMBLY TIPS & TOOLS Watch the Weather Closely: Be sure the day you choose to install your building is dry and calm. Do NOT attempt to assemble your building on a windy day. Be careful on wet or muddy ground. Use Teamwork: Two or more people are required to assemble your building.

  • Page 4: Frequently Asked Questions

    FREQUENTLY ASKED QUESTIONS How long will it take to assemble the building? Assembly time depends on a variety of factors, including roof design, tools available, DIY skill and the pace at which you work. Guidelines for each shed assembly are approximate AFTER completion of the base, and assume two or more people working on the assembly.
  • Page 5 What kind of base do I use? You can: •Use an Arrow Base Kit •Pour a concrete slab •Build a wood deck/fl oor (use exterior-grade plywood) •Use patio blocks •Build on crushed gravel, dirt or grass Arrow provides a base kit accessory that is an option for most building sizes. If you are building a wood deck/fl oor, an Arrow fl...

  • Page 6: Customer Service

    What if the rear wall angle and channels are too large to fi t inside of the rear wall panels? Check the dimensions of wall assemblies. They should be slightly smaller than the fl oor frames. Lay the assemblies on top of the rear fl oor frame and pull them up to the top of the wall panels causing the corner panels to stand erect and not lean inward.
  • Page 7 HARDWARE LIST... 07BC Hardware Views by Key No. Part Part Qty. Description #2 Phillips List 11/32 Hex. 65103 Hex Nut (#8-32) 65923 Small Bolt (#8-32 x 3/8) (10 mm) 65004 Small Screw (#8AB x 5/16) (8 mm) 65900A Black Screw (#10B X 1/2) (13 mm) #2 Phillips #2 Phillips 66045...
  • Page 8 PARTS LIST... 08BC Part Part Qty. Description List Selected End Views by Key No. 6615 Rear Wall Angle 6617 Door Track Splice 10498 Horizontal Door Brace 6658 Gable Brace 7875 Roof Panel 7906 Right Gable 7907 Left Gable 8461 Ridge Cap 8466 Right Roof Panel 10 8467...
  • Page 9 ASSEMBLY BY KEY NO. 09BC Walls Floor...
  • Page 10 ASSEMBLY BY KEY NO. 10BC Roof Doors...

  • Page 11: Assembly Overview

    ASSEMBLY OVERVIEW 11BC Install Corners, Wall Angles, and Door Build the Floor Frame Track Attach Gables and Roof Beams Install Wall Panels, Wall Channels, and Door Jambs Install Roof Panels, Ridge Cap, Side Install Doors Trim, and Corner Cap Shed is now complete.
  • Page 12 CONSTRUCTING A BASE... 12BC No matter which of the options below you choose for a base, an ARROW ANCHORING KIT is recommended as an effective method of properly securing your building after assembly is complete. OPTION 1: Directly on ground (earth) Assemble your building directly on level ground (grass, dirt, rock, sand, etc.).
  • Page 13 Step 1: Floor Frames 13BC You will need for this page: 9377 Rear Floor (QTY: 5) Frame Overlap two (2) Rear Floor Frames as shown and secure with fi ve (5) bolts. Two (2) bolts must enter from bottom. Check that the fi nished length of the Assembly is 95 7/8”...
  • Page 14 Step 1: Continued 14BC You will need for this page: 9379 8941 Front Floor Ramp (QTY: 8) Frame Overlap the Ramp and two (2) Front Floor Frames so that four (4) holes align at each end as shown. Insert four (4) screws in each end. Confi...
  • Page 15 Step 2: Wall Frames 15BC You will need for this page: 9924 6615 Rear Wall Rear Wall Angle (QTY: 2) Channel Overlap two (2) Rear Wall Channels so that fi ve (5) holes align as shown. Insert a bolt and nut through the center hole.
  • Page 16 Step 3: Roof Beams 16BC You will need for this page: 8474 8476 Side Wall Angle Roof Beam (QTY: 10) Place a Side Wall Angle, back-to-back, with a Roof Beam and fasten together using ten (10) screws. Set aside for use in Step 12. 8476 8474...

  • Page 17: Step 4: Door Track

    Step 4: Door Track 17BC You will need for this page: END VIEW 6617 9378 CORRECT INCORRECT Long Leg (QTY: 4) Door Slide Track Splice Door Track on top. Insert screws into bottom side only. The Gables will fasten to the Door Track using the holes on the top side. Door Slide Align two (2) Door Tracks with the four (4) holes in the bottom of the Door Track Splice...

  • Page 18: Step 5: Frame Assembly

    Step 5: Frame Assembly 18BC You will need for this page: Assemblies from Step 1: 8946 • Front Floor Assembly (1) • Rear Floor Assembly (1) Side Floor (QTY: 8) (QTY: 2) Frame Do NOT fasten your Floor Frames to your Base at this time. You will anchor your building after it is erected.
  • Page 19 Step 6: Corners 19BC You will need for this page: 9382 9386 (QTY: 14) Corner Panel Corner Panel 9386 9386 Place washers on all bolts and screws used on painted parts. Use one person to support the Corner while another secures the Panels. Do not leave the Corner unsupported until it is secure.
  • Page 20 Step 7: Wall Framing 20BC You will need for this page: Assemblies from Step 2 and Step 4: 8476 • Rear Wall Angle Assembly (1) • Door Track Assembly (1) (QTY: 14) Side Wall Angle • Install one Side Wall Angle fi rst. •...
  • Page 21 Step 8: Wall Panels 21BC FASTEN TO WALL ANGLES You will need for this page: 6627 6915 [ NO HARDWARE NEEDED FOR THIS STEP ] Wall Panel Wall Panel Lay out all Panels in the positions shown below. Double check that you have the correct Panel in FASTEN TO WALL CHANNELS (STEP 10) each location.
  • Page 22 Step 8: Continued 22BC You will need for this page: (QTY: 60) (QTY: 11) Use bolts to attach Wall Panels Working one side at a time, lift the Panels into where Rear Wall Angles overlap. place and secure top and bottom of Panels with screws.
  • Page 23 Step 9: Door Jambs 23BC You will need for this page: 9370 (QTY: 8) (QTY: 6) (QTY: 2) Door Jamb Secure Door Jambs with two (2) Screws in the top and bottom of each Panel as shown. Insert three (3) Bolts and Nuts into the back side of each Panel as shown below.
  • Page 24 Step 10: Wall Channels 24BC You will need for this page: Assemblies from Step 2: 9920 • Rear Wall Channel Assembly (1) Side Wall (QTY: 2) Channel (QTY: 32) Install Channels on inside of building. Install Rear Wall Channel by placing screws through all remaining holes in Wall Panels.
  • Page 25 Step 11: Gables 25BC You will need for this page: 7907 7906 7916 69836 (QTY: 8) Left Gable Right Gable Bracket Edge Trim GABLES ARE STACKED TOGETHER DURING SHIPPING AND MAY BE MIS- TAKEN FOR ONE GABLE! SEPARATE GABLES BEFORE CONTINUING. Edge Trim (Plastic) Edge Trim MUST cover Gable edge.
  • Page 26 Step 11: Continued 26BC You will need for this page: 6658 (QTY: 14) (QTY: 4) Gable Brace Working with one Gable at a time, attach the Rear Gables to the Rear Wall Angle with screws. Gable must fi t UNDER Side Wall Angle at corner. Insert two (2) bolts and nuts where Wall Angles overlap.
  • Page 27 Step 11: Continued 27BC You will need for this page: 6658 (QTY: 18) (QTY: 3) Gable Brace Track Sup. Working with one Gable at a time, attach the front Gables to the Door Track with screws. Do not insert screws into the two (2) holes closest to the peak of each Gable.
  • Page 28 Step 12: Roof Framing 28AX You will need for this page: Assemblies from Step 3: 8474 • Main Roof Beam Assembly (1) (QTY: 12) Roof Beam Seal the gap between the Gables using the weather stripping tape as shown. Do this at both ends of the building before installing Roof Beams.
  • Page 29 Roof Install Prep Page 29BC Use the information on this page to complete steps 13 thru 14. If Roof Beam holes do not line up with Roof Panel holes, shift the building from left to right. If this does not help, your building may not be level. Shim the corners until holes line up.

  • Page 30: Step 13: Roof Assembly

    Step 13: Roof Assembly 30BC You will need for this page: 8467 8466 67545 Right Roof Weather Left Roof (QTY: 20) (QTY: 8) Stripping Panel Panel Attach Back Right Roof Panel to Top Roof Beam only using a screw. Remove Edge Trim from the Left Gable under the Roof Panel.
  • Page 31 Step 13: Continued 31BC You will need for this page: 7875 Roof Panel (QTY: 32) (QTY: 8) FASTEN TO RIDGE CAP (NEXT PAGE) Continue to apply weather stripping. Attach four (4) Roof Panels using the diagram to the right while assembling the roof.
  • Page 32 Step 13: Continued 32BC You will need for this page: 8461 (QTY: 20) (QTY: 4) Ridge Cap Continue to apply weather stripping. Finish Weather Stripping the Roof and cut the tape just past the end of the Roof. Fold end of tape under roof edge. Attach Ridge Cap with four (4) bolts and nuts.
  • Page 33 Step 14: Roof Trim 33BC You will need for this page: 8482 (QTY: 4) (QTY: 6) (QTY: 4) Roof Trim Trim Cap (L) Trim Cap (R) Peak Cap Slide Peak Cap legs under Ridge Cap and secure with two (2) bolts and nuts on each end.

  • Page 34: Step 15: Door Assembly

    Step 15: Door Assembly 34BC You will need for this page: 10479 6300 Door Vert. Brace (QTY: 3) (QTY: 2) Handle Secure Door Handle to Door with two (2) bolts and nuts. Attach the Door Handle to the Door with two (2) bolts and nuts as shown.
  • Page 35 Step 15: Continued 35BC You will need for this page: 10498 Horiz. Brace (QTY: 6) Door Guide Slide Horizontal Brace over Door edge and secure with one (1) bolt and nut in top and bottom. Secure the Door Guides and Lower Horizontal Door Brace as shown below.

  • Page 36: Door Adjustment

    Step 16: Door Install 41AW You will need for this page: Assemblies from Step 16: • Right Door Assembly (1) • Left Door Assembly (1) (QTY: 8) Gable Door Slide From inside the building, place the bottom of the Door into the Front Floor Frame track at about the half- open position.
  • Page 37 ANCHORING OPTIONS... IMPORTANT: • If you have swing doors, they must hang and swing level before anchoring building. • Anchor your building at this time. See below for details on anchoring. • If you have purchased a Floor Frame Kit, you should install it at this time. •...
  • Page 38 CARE & MAINTENANCE... Exterior Care: For a long lasting fi nish, clean and wax the exterior surface. We recommend washing with a mild soap solution. DO NOT use power washing to clean your shed. Using a spray automotive type wax periodically on the exterior is highly recommended if you are in a high humidity or coastal climate region.

  • Page 39: How To Order

    ARROW ACCESSORIES... ROOF STRENGTHENING FLOOR FRAME KITS (heavy snow load) KITS Extra roof beams and gable braces MODELS FB47410, FB5465, designed for added protection against FB106-A, FB109-A and FB1014-A heavy snow accumulation. Increases the strength of your roof. A simple fl oor frame system made of heavy-duty, hot-dipped BEFORE AFTER galvanized steel.

  • Page 40: Assembly Notes

    ASSEMBLY NOTES...
