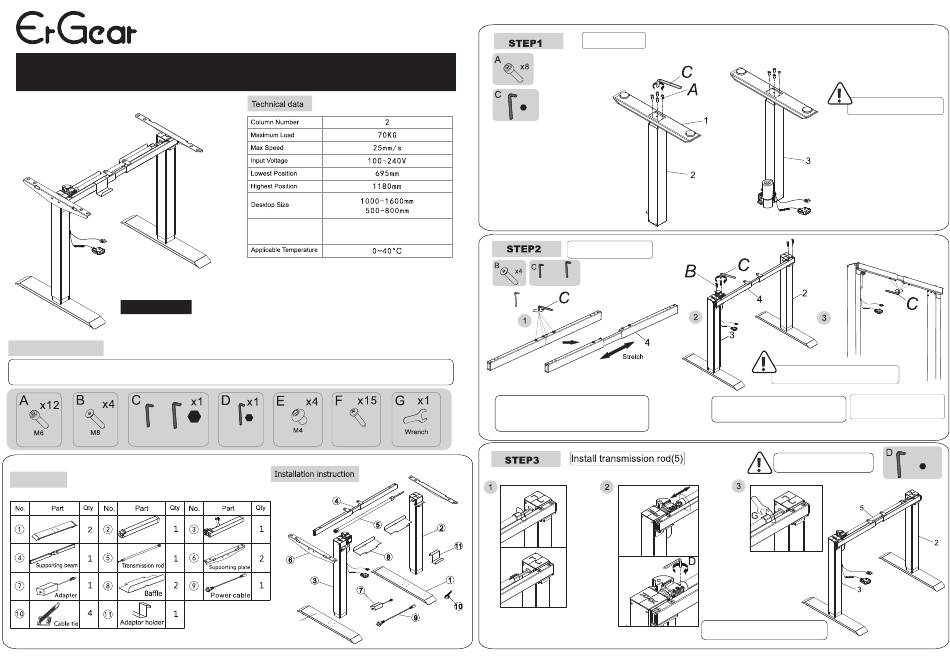

ErGear EGESD1 Instruction Manual

Electric Standing Desk Frame Instruction Manual
Model: EGESD1
Hardware List
Attention: The drawings below are only for reference which might be slightly different from the actual object, please in kind prevail. Any tools
missing or installation problems, please contact at support@ergear.com
4x4mm 5x5mm
Bolt Bolt Allen key
Part List
Left
Pedestal
column
Continuous operation for 2 mins at
Duty Cycle
most after pause for 18 mins
Thank you for choosing this Ergear product! At
Ergear we strive to provide you with the best quality
products and services in the industry. Please share
your experience of our product with others on
Amazon if you are satisfied. Should you have any
issues, please don't hesitate to contact us at
support@ergear.com
2.5x2.5mm ST 4.2mm
Allen key Bolt Screw
Right
column
①
Install pedestal(1)
V1.0
5x5mm
Install supporting beam(4)
4x4mm 5x5mm
Loosen
Loosen the preassembled bolts on the
supporting beam (4) using Allen key (C), then
stretch the supporting beam according to the
size of your desktop
Loosen the
preassembled
nut
Stretch the
preassembled
thinner rod and
insert the thinner
rod into the hole
on the left
column (2)
Secure the pedestals (1) to left column (2) and right column (3) using
bolts (A) and Allen key 5x5mm (C)
Please adjust the support beam size(4)
according to table top size.
Install supporting beam to the left column
(2) and right column (3) using bolts (B)
and Allen key (C)
Do not exceed one third of the
circle when rotate the angle
Rotate and
insert the other
end of trans-
mission rod (5)
to the right
column (3)
Tighten the nut
Tighten the
preassembled
bolt
Secure transmission rod (5) to the left
column (2) and right column (3)
Keep the pedestal vertical
to the column.
Tighten preassemble bolts on
supporting beam with Allen
key 4x4mm (C)
2.5x2.5mm
