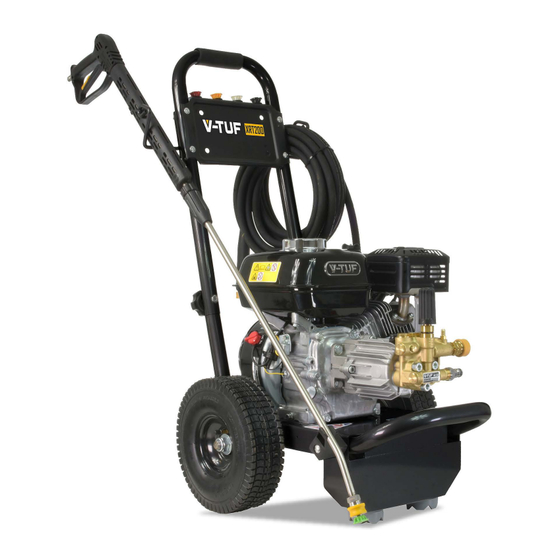

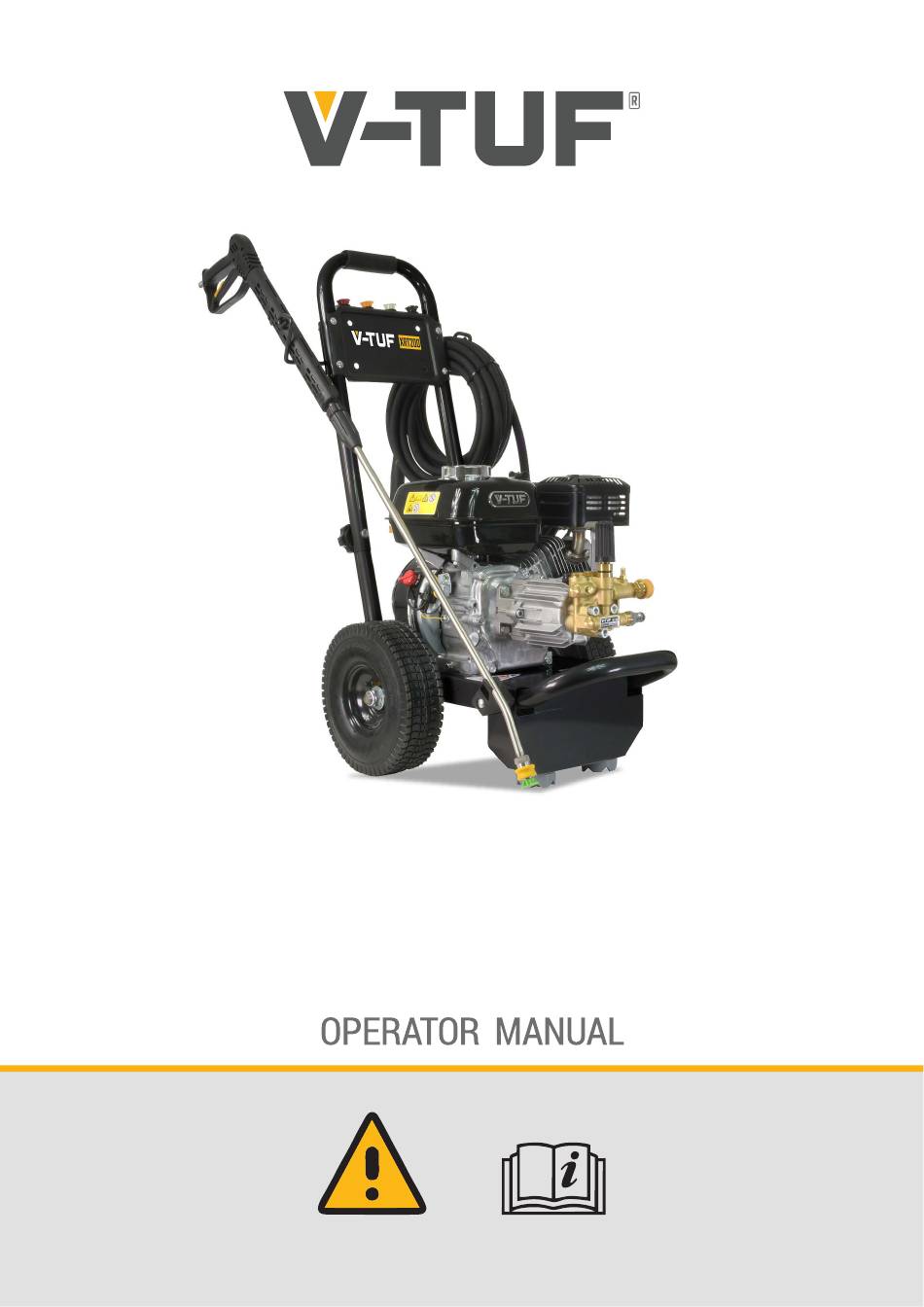

- Page 1 TORRENT-XRT200 INDUSTRIAL 6.5HP PETROL PRESSURE WASHER WITH HONDA ENGINE Please read this manual before using the TORRENT XRT200...
- Page 2 PETROL ENGINE PRESSURE WASHER STARTING INSTRUCTIONS...
-
Page 3: Table Of Contents
CONTENTS Contents Page Important safety Instructions 4 -7 Safety Features & Security Norms 7-10 Technical Data Use of the machine 13-14 Transport & Lifting 15-16 Cleaning Applications Troubleshooting 18-20 Accessories & Part List XHDH300SS Super Series Pump... -
Page 4: Important Safety Instructions
High pressure cleaners must not be used by children or untrained personnel. High pressure hoses, fittings and couplings are important for the safety of the appliance. Use only hoses, fittings and couplings recommended by V-TUF. Always wear suitable eye, face and body protection. -
Page 5: General Points
V-TUF, quoting type of machine, matriculation number and the year of manufacture. Trial before shipment The machine has been tested at the manufacturer’s factory by a V-TUF technician to check that all of the components are functioning correctly according to the machine’s specifications. Guarantee Terms... - Page 6 Delivery The transport will be carried out by qualified companies, in respect to regulations in force and legislation relative to weight and length. The merchandise travels under the full responsibility of the transporter and the user; in the event of an accident, or late delivery, the manufacturer accepts no liability.
-
Page 7: Important Recommendations
Prior to use, please carefully read the instructions, paying particular attention to "IMPORTANT RECOMMENDATIONS", "SECURITY NORMS" and "PRECAUTIONS". It is forbidden to remove or tamper with the protective parts of the machine. It is forbidden to use inflammable, explosive or toxic substances. It is obligatory to use appropriate protective equipment. - Page 8 When using the machine outdoors, do not use when it is raining Do not attempt any kind of maintenance whilst the plug is connected to any sort of power supply. Take care not to spray the machine with the water jet as this could lead to short-circuit Should you need to use an extension lead with the power supply, make sure that the connection between the extension lead and the power lead is secure and stable and conforms to standard safety norms.
-
Page 9: Improper Use
It is strongly forbidden to carry out any operation with the machine if you are not wearing the appropriate safety equipment (protective glasses, gloves, overalls etc) as per established safety norms. During winter, and in the event of frost, it is advisable to use anti-freeze or to empty out the water from the internal circuits by closing the tap from the water supply and activating the machine until all of the water is expelled. - Page 10 PRECAUTIONS Before activating the high pressure cleaner, make certain that the water supply is correct (min. 1 Bar – Max 8 Bar); dry use can provoke serious damage to the machine’s waterproofing systems. To safeguard the security of the operator and of the machine, avoid making modifications to the machine without the written consent of the manufacturer.
-
Page 11: Technical Data
TECHNICAL DATA: Industrial Speci cation - Torrent XRT 200 PRESSURE (psi) 2755 FLOW (litres/minute) PUMP TYPE TRIPLEX DIRECT DRIVE FUEL CAPACITY 3.1 LITRES OIL SIGHT GLASS CHEMICAL INJECTION ENGINE BRAND HONDA DISPLACEMENT 6.5HP STARTING SYSTEM RECOIL STARTER FRAME FINISH BLACK POWDER COATING WHEELS LARGE PNEUMATIC TYRES SOUND LEVEL... -
Page 12: Identification Data
IDENTIFICATION DATA The position of the identification data of the machine 1) Identification of the machine according to EU directives. ATTENTION: Check that your TORRENT XRT200 high pressure washer has been provided with these identification details, if they have not been provided please inform your local dealer immediately. Machines which have not been provided with these details MUST NOT BE USED, and should be considered anonymous and potentially dangerous. -
Page 13: Practical Advice
USE WITH CHEMICAL PRODUCTS With the machine shut down, act the device (adjustable head) placed on the lance end to obtain the suction and the distribution of the product; pull the gun trigger to obtain the detergent distribution and start the work. ATTENTION During operation of the machine, it is obligatory to use the appropriate personal safety equipment. -
Page 14: Important Advice
LUBRICATION OF THE PUMP For the models 200.15 we recommend: V-TUF Pressure Lube PL100 – OIL CAPACITY 1.2 litres For the models 100.12 we recommend: V-TUF Pressure Lube PL100 – OIL CAPACITY 0.42 kg You should change the oil after the first 50 hours of use, and after each subsequent 500 hours of... -
Page 15: Transport & Lifting
TRANSPORT – LIFTING – SHIFTING ATTENTION: Whenever the machine needs to be transported, it should be securely fixed with straps, cables or other suitable equipment in order to avoid accidental movement which could cause damage to people or property as well as to the machine itself. ATTENTION: Should the machine need to be lifted, it should be hooked or coupled by means of strips, or suitable lifting equipment which will safeguard the machine’s integrity. - Page 16 STORAGE Park the machine on a flat surface. If the machine is not going to be used for an extended period of time, empty the water circuits and the fuel tank then cover the machine and store it in a place protected from atmospheric extremes.
-
Page 17: Cleaning Applications
Cleaning Applications MARKET SECTOR APPLICATIONS Automotive Cleaning Services, such as car washes, and vehicle cleaning in yards like courier’s fleet of trucks and vans. Public Sector Cleaning outside of hotels and other public eating areas, including car parks, and entrance steps to buildings. Construction Industry Cleaning the outside of buildings, concrete &... -
Page 18: Troubleshooting
Troubleshooting PROBLEMS CAUSES SOLUTIONS The pump turns but does not The pump is sucking in air. Check that the piping is watertight reach the required pressure Worn out valves Replace the valves Worn out valve seat Replace the valve seat Worn out or inadequate water nozzle Replace the water nozzle Worn out gaskets... - Page 19 Presence of water in the pump Worn out oil seal. Replace the oil seal. High percentage of humidity on the Change the oil twice as often as is air. normally prescribed. Gaskets are completely worn out. Replace the gaskets. Excessive noise Air is being sucked in.
- Page 20 Oil discharge from between the Worn out oil seals. Replace the oil seals. pump body and the pump head. Excessive vibrations. Worn out or dirty valves. Replace the valves. The engine does not start. There is no fuel in the tank. Ensure the fuel tank has the correct fuel.
-
Page 21: Accessories Parts & List
ACCESSORIES PARTS & LIST ITEM CODE DESCRIPTION TG350FEXTMSQ V-TUF tufGUN350 SWIVEL GUN WITH EXTENSION MSQ MALE INLET x M22F H4.000 500mm LANCE (M22M ~ QUICK RELEASE) QUICK RELEASE JET NOZZLES 0, 15, B14.5050 25, 40 Degree VTK2381UVYK-HD 10m HIGH PRESSURE QR HOSE... -
Page 22: Xhdh300Ss Super Series Pump
XHDH100 D 3400 ø 3/4" UN001880-MR KIT RICAMBI / PART KITS... - Page 23 XHDH100 3400 rpm D version + F7 ø 3/4" XHDH100 Series NOTES 2 G25 (21663) 3.5 G25 (21667) 3 G25 (FP) 2.5 G25 (21664) 3 G27 (21666) Pos. Cod. Denominazione Description Note Pos. Cod. Denominazione Description Note 1 1981780 Manopola Knob 44 1260440 Tenuta acqua Ø...
