INSTALLATION MANUAL
R-410A Variable Capacity

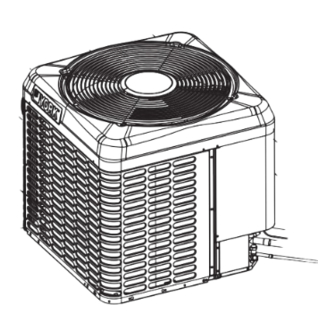

Outdoor Split-System Heat Pump
Models: 19 SEER2
YZV, HC20, HL20 Series
2 ton to 5 ton - Single-Phase
General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Unit installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Evacuation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Electrical connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Control transformer phasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
System charge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Typical installation clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Alternative installation clearances. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation of vapor line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Underground installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Heat protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Outdoor unit control box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Typical communicating field wiring (air handler/furnace) . . . . . . . . . . 7
Demand response wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Air handler control transformer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
System charging connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Minimum/maximum operating limit conditions . . . . . . . . . . . . . . . . . . 2
Allowable vertical line sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
R-410A saturation properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Test mode options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Same priority fault storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Status code display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
IMPORTANT: Before starting the system, connect the thermostat to
Wi-Fi using a local network or portable hot-spot so the thermostat
and system receive the latest software updates to optimize system
performance.
CAUTION
!
The EEV is factory installed but shipped in the closed position. Prior
to any brazing, power must be applied to the Indoor Unit. If installing a
coil furnace match or multi-piece air handler system, the EEV har-
ness must be plugged into the Comm port prior to applying power to
the indoor unit. Allow 1 min for the EEV to open to allow proper nitro-
gen flow through the coil and line set. If you are not able to power the
indoor unit before brazing the line set, a tool to manually open the
EEV is available through Source 1 under part number S1-
02649686000.
Section I: General
The outdoor units are designed to be connected to a matching indoor
coil with sweat connect lines. Sweat connect units are factory charged
with refrigerant for a nominal sized matching indoor coil plus 15 ft of
field-supplied lines.
Johnson Controls Ducted Systems
List of sections
Charging charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
System operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Outdoor screen operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Instructing the owner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Start up sheet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
List of figures
Main outdoor control and display. . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Heat pump flow diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Outdoor display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2 ton inverter drive LED location . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
3 ton and 4 ton inverter drive LED location . . . . . . . . . . . . . . . . . . . . 27
5 ton inverter drive LED location . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Wiring diagram - 2 ton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Wiring diagram - 3 ton to 5 ton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
List of tables
Outdoor display menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Outdoor control faults/status code display. . . . . . . . . . . . . . . . . . . . . 18
Inverter drive fault/status code display . . . . . . . . . . . . . . . . . . . . . . . 23
Thermistor resistance vs. temperature table . . . . . . . . . . . . . . . . . . . 29
Sensor connector pin definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Low suction pressure limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Section II: Safety
This is a safety alert symbol. When you see this symbol on
labels or in manuals, be alert to the potential for personal
injury.
Understand and pay particular attention to the signal words DANGER,
WARNING, or CAUTION.
DANGER indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation, which, if not
avoided may result in minor or moderate injury. It is also used to
alert against unsafe practices and hazards involving only property dam-
age.
Improper installation may create a condition where the operation of
the product could cause personal injury or property damage.
Improper installation, adjustment, alteration, service, or maintenance
can cause injury or property damage. Refer to this manual for assis-
tance or for additional information, consult a qualified contractor,
installer, or service agency.
Assembled at a facility with
an ISO 9001:2015-certified
®
Quality Management
System
WARNING
!
6291275-UIM-B-0623
