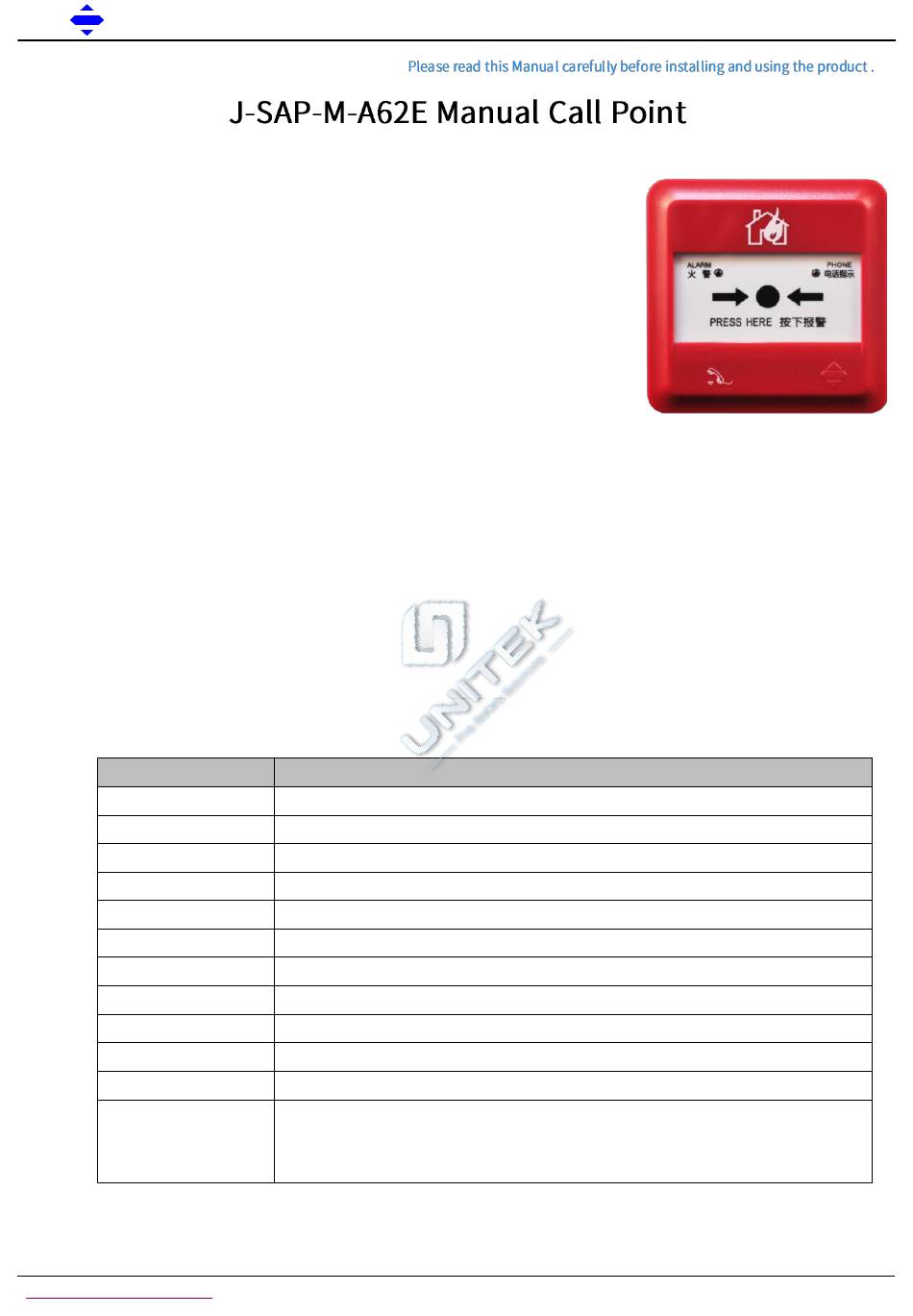

SANJIANG J-SAP-M-A62E Product Manual

1
Product overview
1.1

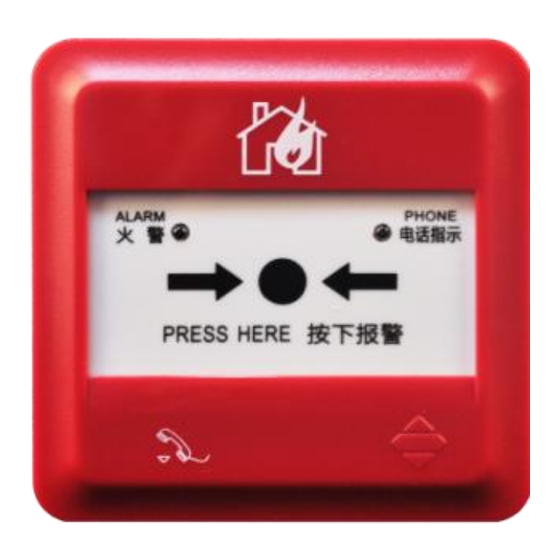

J-SAP-M-A62E manual call point (after this referred to as manual alarm) is
mainly used with the Addressable Fire Alarm Control Panel. When the fire is
confirmed manually, press the action window on the button to send an alarm
signal to the fire alarm controller. When the alarm controller receives the alarm
signal, the coded address and equipment status of the button will be displayed.
The red light shines during normal operation, and the red light will steadily light
up during fire. The manual alarm supports electronic coding mode, and the
built-in fire telephone jack and telephone indicator light is convenient for
engineering applications.
2
Product features
2.1
a. Full electronic coding, can be rewritten by the encoder on site.
b. Using the upper and lower cover structure design is simple and convenient for installation, debugging,
maintenance.
c. Comes with a two-wire fire telephone jack, more suitable for engineering use.
d. The manual alarm provides passive output contacts, which can directly control external devices through an
intermediate relay.
e. The press button on the manual alarm can be reset with special tools after being pressed, will not be broken, and
can be reused.
3
Technical parameters
3.1
Items
Executive standard
Operating voltage
Operating current
Output contact
Weight
Wiring method
Operating environment
Encoding mode
Telephone jack
Starter part
Starter way
Indicator light
4
Appearance and dimensions
www.sanjiang-security.com
Product Manual
GB 19880-2005
Loop 24V
Inspection status:<300uA,Action status:<2mA
Capacity: 0.1A/30VDC Normally open terminal
about 118g
two-wire system(L1,L2)
Indoor temperature: －10℃～＋55℃ RH: ≤95%(40℃±2℃ without condensation)
Through the encoder can be field coding, address coding 1 ~ 324 optional
Two-wire fire telephone jack (with standard 6.3 mono audio plug)
Reusable plastic press button, after starting it can be manually reset with special tools
Manually press the button
Red fire alarm light, fire alarm light shining during inspection, fire alarm light steady
on at alarm time; Telephone indicator light, shining when correctly connected to the
normal working fire telephone system, otherwise not bright.
Page 1 of 5
Parameters
Version: V1.0
Template (Version):T-006(V01.05)
