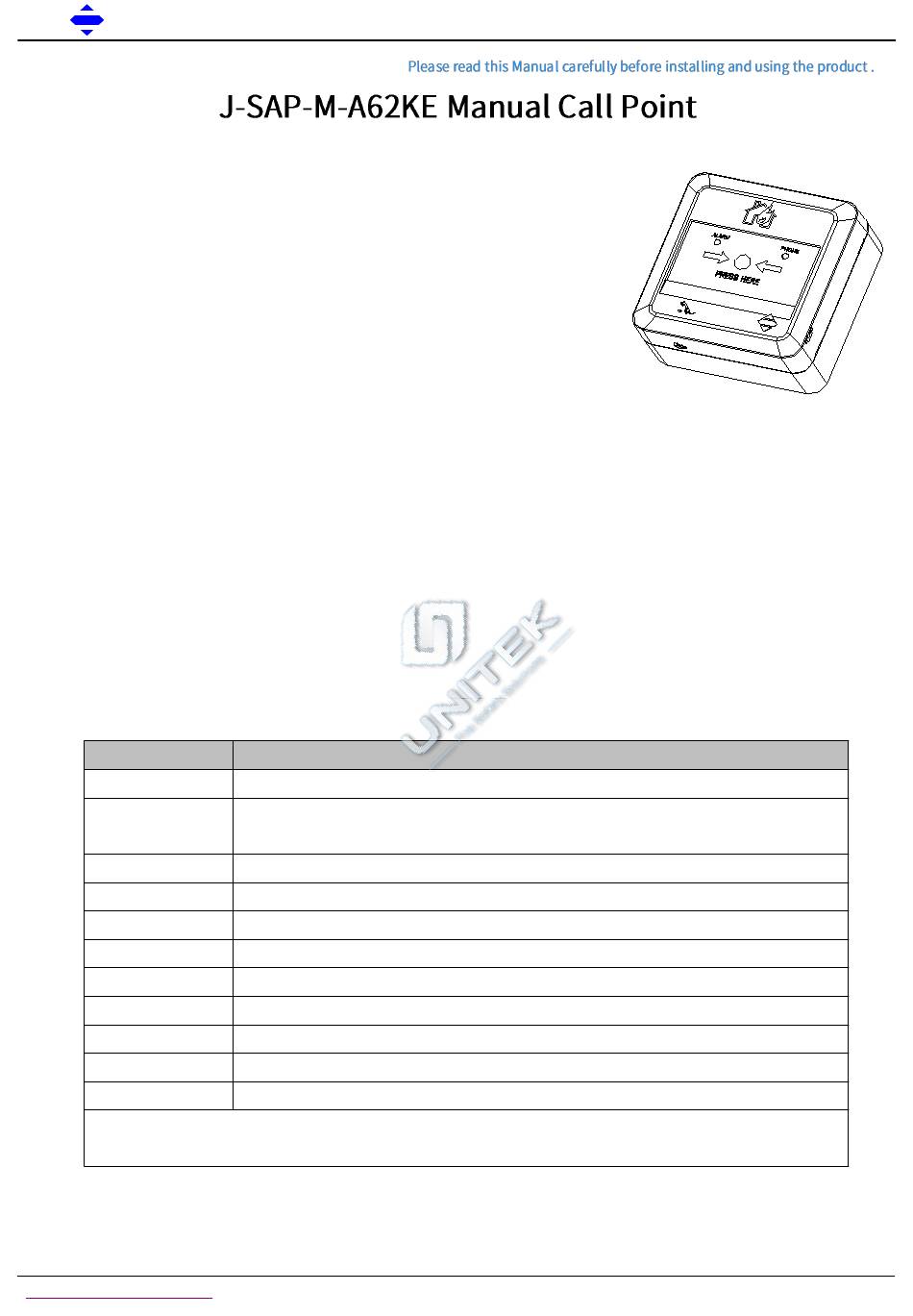

SANJIANG J-SAP-M-A62KE Product Manual

1
Product overview
1.1
SAP-M-A62KE manual call point (after this referred to as the manual alarm
button) through the input module JK-A52E access Addressable Fire Alarm
Control Panel, installed in public places, manual call point under monitoring
status does not consume power. In case of fire alarm, the manual call point is
pressed, and the alarm signal is transmitted to the input module, which is
transmitted to the controller through the signal bus, and the controller will
display input module ' s coded address and its working status, while the
passive output contact is closed. The red fire alarm light will on in case of fire.
Built-in fire telephone jack and fire telephone indicator light,easy for
engineering application.
2
Product features
2.1
Adopt upper and lower cover structure design, easy to install,debug,and maintain.
2.2
With two-wire fire telephone jack, more suitable for engineering use.
2.3
The intelligent fire alarm controller can be connected to it through the input module and it can be used in parallel. The
terminal load must be connected at the end.
2.4
It provides passive output contacts to control other external devices directly via an intermediate relay.
2.5
After pressed it will not be damaged and can be reused. Reset with a special tool.
3
Technical parameters
3.1
Items
Executive standard
Working current
Output contact
Weight
Connection mode
Use environment
Telephone jack
Starting parts
Starting mode
Indicator light
Connection mode
Telephone indicator light shining when correctly connected to the normal working fire telephone system,
otherwise not bright.
4

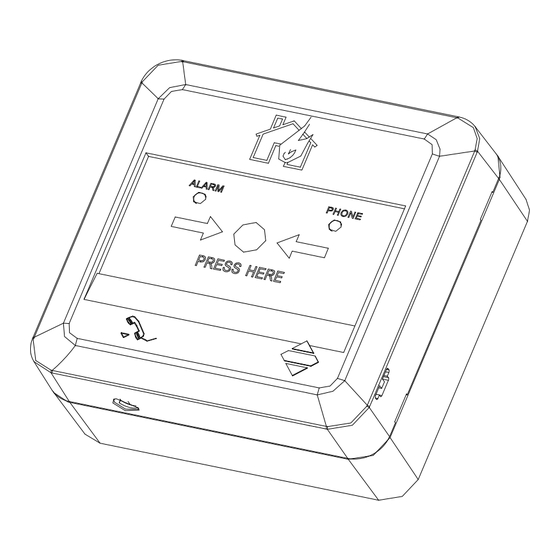

Product appearance and size (see Fig.1)
www.sanjiang-security.com
Product Manual
GB 19880-2005
Monitoring status: 0mA
Action status: < 25mA (access JK-A52E input
normally open contact, capacity 0.1A/30VDC
about 112g
two-wire system (TO+, TO-)
indoor, temperature -10℃~ +55℃, relative humidity ≤95%(40℃±2℃no condensation)
two-wire fire telephone jack (with a standard 6.3 mono audio plug)
reusable plastic press pieces, after starting can be manually reset with special tools
Manually press the button
Red fire alarm light, usually not bright, alarm often bright
The input module JK-A52E is used with the fire alarm control panel
Page 1 of 4
Parameters
module)
