- Page 1 INSTALLATION GUIDE VersiCharge 95” Post and ™ Integrated Retraction Systems For 40/48 A VersiCharge units (25 ft. cable) usa.siemens.com/versicharge May 2024...
- Page 2 Introduction - Recommended to use with VersiCharge 40/48 A models that are supplied with 25 ft. coupler cables Safety Instructions Single and Dual Post and Cable Management System for Siemens VersiCharge Tools needed for installation Supplied Parts Concrete Pad, Power Feed and Anchor Requirements for Siemens VersiCharge...
- Page 3 Installation Guide | VersiCharge™ 95” Post and Integrated Retraction Systems Figures Figure 1.1 Cable unwound Figure 1.2 Charging cable midway point Figure 1.3 Cable hovers above ground Figure 2. 95” single post - front view Figure 3. 95” single post - side view Figure 4.
- Page 4 The sales contract contains the entire obligation of Siemens. The warranty contained in the contract between the parties is the sole warranty of Siemens. Any statements contained herein do not create new warranties or modify the existing warranty.
- Page 5 Installation Guide | VersiCharge™ 95” Post and Integrated Retraction Systems Safety Instructions DANGER Hazardous Voltage. Will cause death or serious injury. Disconnect before working on this equipment. This indicates a situation where the present voltage could cause injury or death. Extreme caution is required when servicing or installing the equipment referenced.

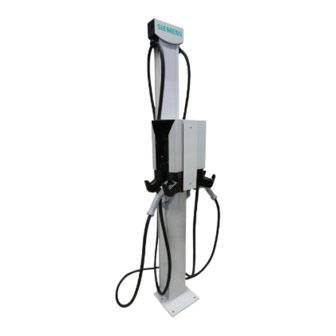

- Page 6 VersiCharge™ 95” Post and Integrated Retraction Systems | Installation Guide Single and Dual Post and Cable Management System for Siemens VersiCharge VersiCharge units sold separately Features: • Single or dual mount pedestal • Siemens VersiCharge standard bolt pattern • Aluminum pedestal post •...
- Page 7 Installation Guide | VersiCharge™ 95” Post and Integrated Retraction Systems Tools needed for installation Electric drill Hex head screwdriver Phillips head screwdriver Flat head screwdriver Hammer Pencil Tape measure NOTICE Due to the weight of the post and assembly, more than one person is required to safely install both the single and dual posts.
- Page 8 VersiCharge™ 95” Post and Integrated Retraction Systems | Installation Guide Supplied Parts 1 – Pedestal/retractor assembly 1 – VersiCharge mounting 1 – 3” x 6” plastic end cap 1 – 3.625” x 16” front 1 – VersiCharge post (11.5’’ x 11.5’’ x 99.125’) bracket (for single or dual) cover plate cover...
- Page 9 Ensure the breaker is off during all electrical work. All pedestals shall be factory pre-drilled for installing one (1) or two (2) Siemens VersiCharge EVSE units (specify when ordering). This post product is recommended to be used for VersiCharge 40/48 A models that are supplied with 25 ft.
- Page 10 (four) bolts – DO NOT OVERTIGHTEN. Install the plastic mounting bracket on other side of the dual bracket using the four included bolts. 10. Place the Siemens VersiCharge charger(s) onto the plastic bracket(s). The bracket allows the VersiCharge to rotate/swing on the hinge during wire connection.
- Page 11 Installation Guide | VersiCharge™ 95” Post and Integrated Retraction Systems 13. Attaching the cable clamp to charging cable: Figure 1.1 Cable unwound Figure 1.2 Charging cable midway point Figure 1.3 Cable hovers above ground Ensure the charging station is properly installed to the pedestal/retractor system. Remove the bottom half of the cable clamp by removing the two screws and set aside.
- Page 12 VersiCharge™ 95” Post and Integrated Retraction Systems | Installation Guide Single VersiCharge Mounting 3.347 10.250 3.347 4.093 98.750 98.750 7.250 2.000 9.250 17.000 17.000 5.750 32.250 .750 .375 11.500 Figure 2. 95” single post - front view Figure 3. 95” single post - side view Figure 4.
- Page 13 Installation Guide | VersiCharge™ 95” Post and Integrated Retraction Systems Dual VersiCharge Mounting 10.250 3.347 4.093 3.347 7.688 6.212 98.750 98.750 9.250 16.000 16.000 5.750 32.250 .375 .750 11.500 11.500 Figure 5. 95” dual post - front view Figure 6. 95” dual post - side view Figure 7.
- Page 14 VersiCharge™ 95” Post and Integrated Retraction Systems | Installation Guide Single/Dual Post and Cable System Base Plate Dimensions Figure 8. Base plate diagram...
- Page 15 Installation Guide | VersiCharge™ 95” Post and Integrated Retraction Systems Notes:...
- Page 16 This document contains a general description of available technical options only and its effectiveness will be subject to specific variables, Siemens Industry, Inc. including field conditions and project parameters. Siemens does not 3617 Parkway Ln. make representations, warranties, or assurances as to the accuracy or Peachtree Corners, GA 30092 completeness of the content contained herein.
