pela tools 50644 Manual

Radial drilling machine

Advertisement

Available languages

Available languages

Quick Links

Radialborrmaskin
Radial drilling machine
Item No:
50644

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 50644 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for pela tools 50644

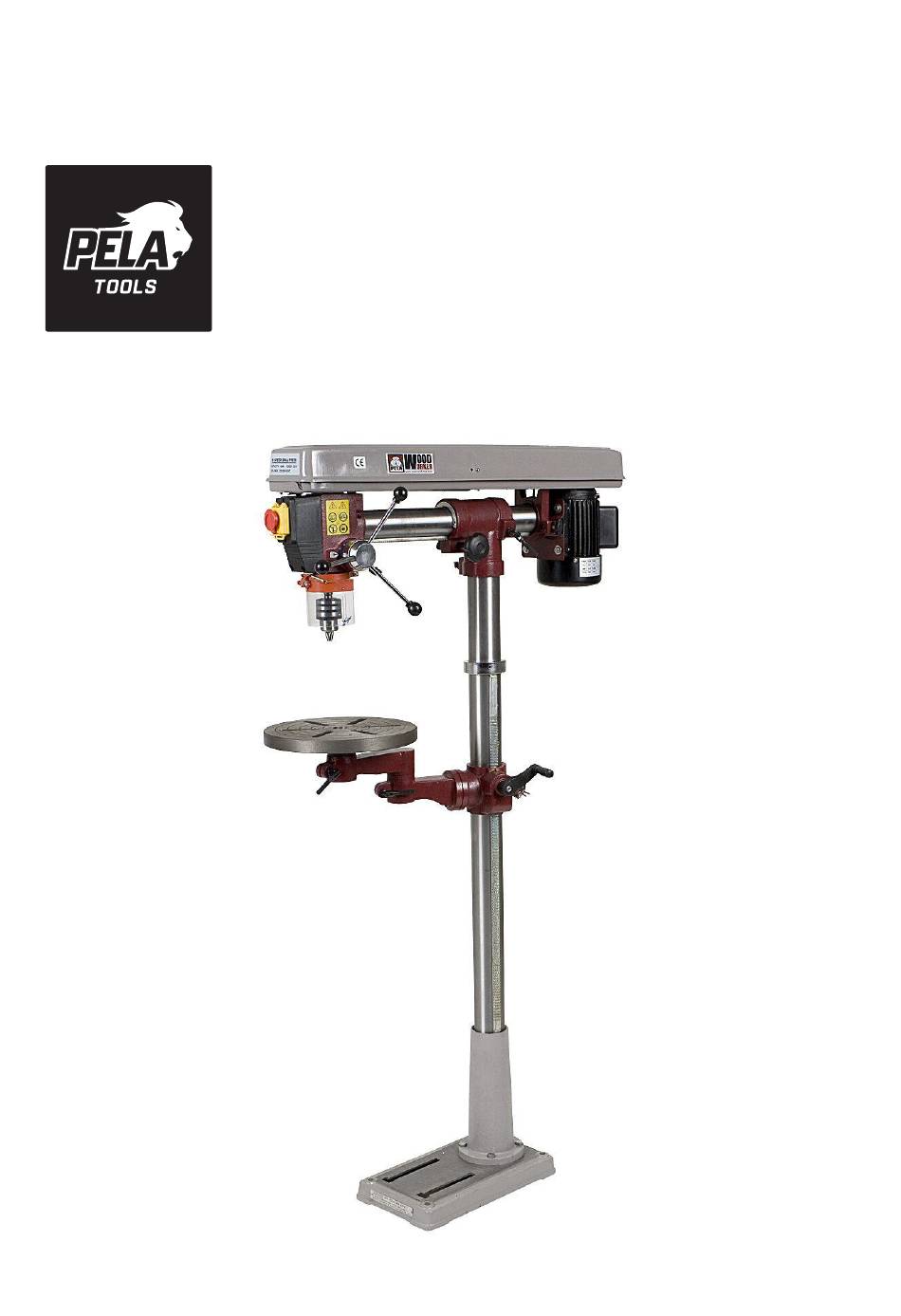

  • Page 1 Radialborrmaskin Radial drilling machine Item No: 50644...
  • Page 2 aldrig elverktyg när du är trött, berusad eller Kontaktinformation tar mediciner som skapar dåsighet. Verktygsboden Erfilux AB • Håll arbetsplatsen ren. Röriga arbetsplatser Källbäcksrydsgatan 1 och arbetsbänkar kan leda till olyckor. SE-507 42 Borås • Använd inte elverktyg i farliga miljöer. Använd Telefon: 033-202650 inte elverktyg i fuktiga eller våta utrymmen.
  • Page 3 Uppackning Kontrollera om det finns lösa eller skadade delar. Radialborrmaskinen levereras omonterad. Kontrollera att följande enheter och lösa delar finns med (se figur 1 och 2): Figur 3 Placera stången på basen. Dellista A. Huvud B. Pelare C. Fot D. Bord E.
  • Page 4 Se figurerna 11 och 12. • Kontrollera att spindelkona och kona är rena och torra. • Sätt nyckeln i chucken och vrid nyckeln moturs. Figur 8 Se figurerna 9 och 10. VARNING: Pelarborrmaskinshuvudet är tungt. Det krävs två personer för att montera maskinen på huvudenheten av pelaren.
  • Page 5: Elektrisk Anslutning

    Justera V-rem spänning Elektrisk anslutning Se figur 14. Se figur 18. • Öppna remskivan i locket och lossa båda VARNING: Alla elektriska anslutningar måste motorlåsknapparna (en på varje sida av utföras av behörig elektriker. Se till att enheten är huvudet). avstängd och bortkopplad från strömkällan •...
  • Page 6 • Tilta huvudet till önskad vinkel. Säkra i det valda läget genom att dra åt huvudvinkelns låshandtag. • Återgå till 0° vertikal position, lossa låshandtaget, rotera styrstift 90° och lutnings- huvudet. Säkra i läge genom att dra åt huvudvinkelns låshandtag. •...
  • Page 7 Felsökning Möjliga orsaker Lösning Spindeln roterar inte 1. Ingen ström till 1. Kontrollera ledningar, säkring pelarborrmaskin eller effektbrytare 2. Defekt omkopplare 2. Byt ut strömbrytaren 3. Defekt motor 3. Byt ut motorn Bullrande spindel Defekta lager Byt ut lager Bullriga ljud 1.
  • Page 8: Eg-Försäkran Om Överensstämmelse

    PELA Maskin: Radialborrmaskin ZQJ3116A Typbeteckning: ZQJ3116A Artikelnummer: 50644 följer alla relevanta bestämmelser i enlighet med 2006/42/EC (MD). För att tillmötesgå ovan nämnt direktiv har följande harmoniserade standarder använts: Standard: EN 12717:2001+A1:2009 EN 60204-1:2018 Notified body: TÜV Austria Cert GmbH...
  • Page 9: Specifications

    Contact • The work area should be well lit. PELA Tools • Correct electrical outlets must be available Solängsvägen 13 for tools. SE-513 70 Borås • Keep visitors at a safe distance from the work Telefon: 033-202650 area.
  • Page 10 Unpacking Check for loose, missing or damaged parts. The radial drill is delivered unassembled. Locate and identify the following devices and loose parts (see Figures 1 and 2): Figure 3 - install pillars on the base Place the racks inside the table bracket with the large, unprocessed part of the rack to the top.
  • Page 11 • Place the main unit of the column drill on top of the column. • Position the head so that it is centered over the base. • Secure the main unit in position by tightening the locking handle (see figure 10). Figure 7 - Attach retaining ring, crank handle and locking handle.
  • Page 12: Electrical Connection

    Handle • Thread the three feed handles into the threaded holes on the drive hub. Figure 15 Power source The motor is designed for operation with the voltage a frequency specified. Normal loads will be handled safely at voltages up to 10% above Figure 13 or below the specified voltage.
  • Page 13: Speed Adjustments

    head drive switch until the head is in the On / off button desired position. Secure by tightening the • The ON / OFF switch is located on the front head angle locking knob. of the drill bit head. To switch on the drill, •...
  • Page 14: Troubleshooting

    Install the drill WARNING: Make sure the column drill is turned off and disconnected from the power source before adjusting the speed. • Place drill in clamps drill chuck. • Tighten the chuck with the drill chuck key. Be sure to tighten the chuck using all three key positions on the chuck body and take the chuck wrench.
  • Page 15: Eu Declaration Of Conformity

    Declare under our sole responsibility that the product Machine: Radial drill press Type designation: ZQJ3116A Item number: 50644 fulfils all relevant provisions of the 2006/42/EC (MD). To show compliance with the above Directives the following harmonized standards have been applied: Standards: EN 12717:2001+A1:2009...
  • Page 16 Verktygsboden Erfilux AB Källbäcksrydsgatan 1, SE-507 42 Borås...
