NVR Introduction

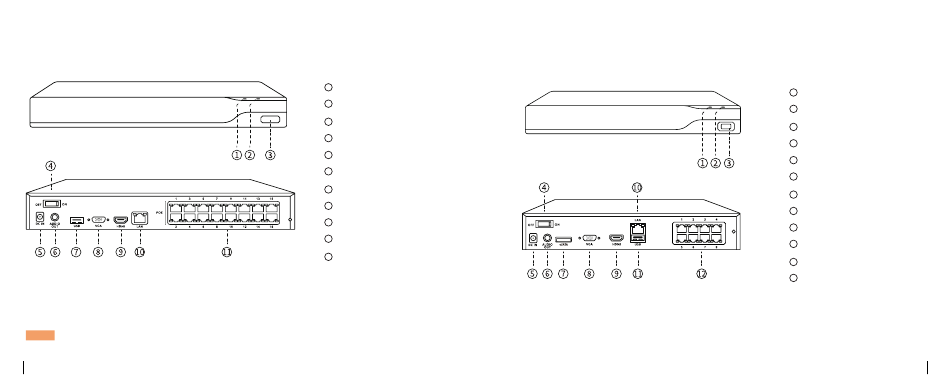

Model: NVS16
Mount the Camera to the Ceiling
Power LED: Solid green to indicate the NVR is powered on.
HDD LED: Flashing red to indicate the hard drive is operating properly.
NOTE: Quantity and appearance of devices and accessories vary by different models that you
purchase.
3 English
Power LED
1
HDD LED
2
USB PORT
3
Power Switch
4
Power Input
5
Audio Out
6
USB Port
7
VGA Port
8
HDMI Port
9
LAN Port
10
PoE Ports
11
Model: NVS8
USB PORT
1
Power LED
2
HDD LED
3
Power Switch
4
Power Input
5
Audio Out
6
eSATA Port
7
VGA Port
8
HDMI Port
9
LAN Port
10
USB Port
11
PoE Ports
12
