RF SOLUTIONS microBOGEY-4T4 Quick Start Manual

Rf transmitter
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

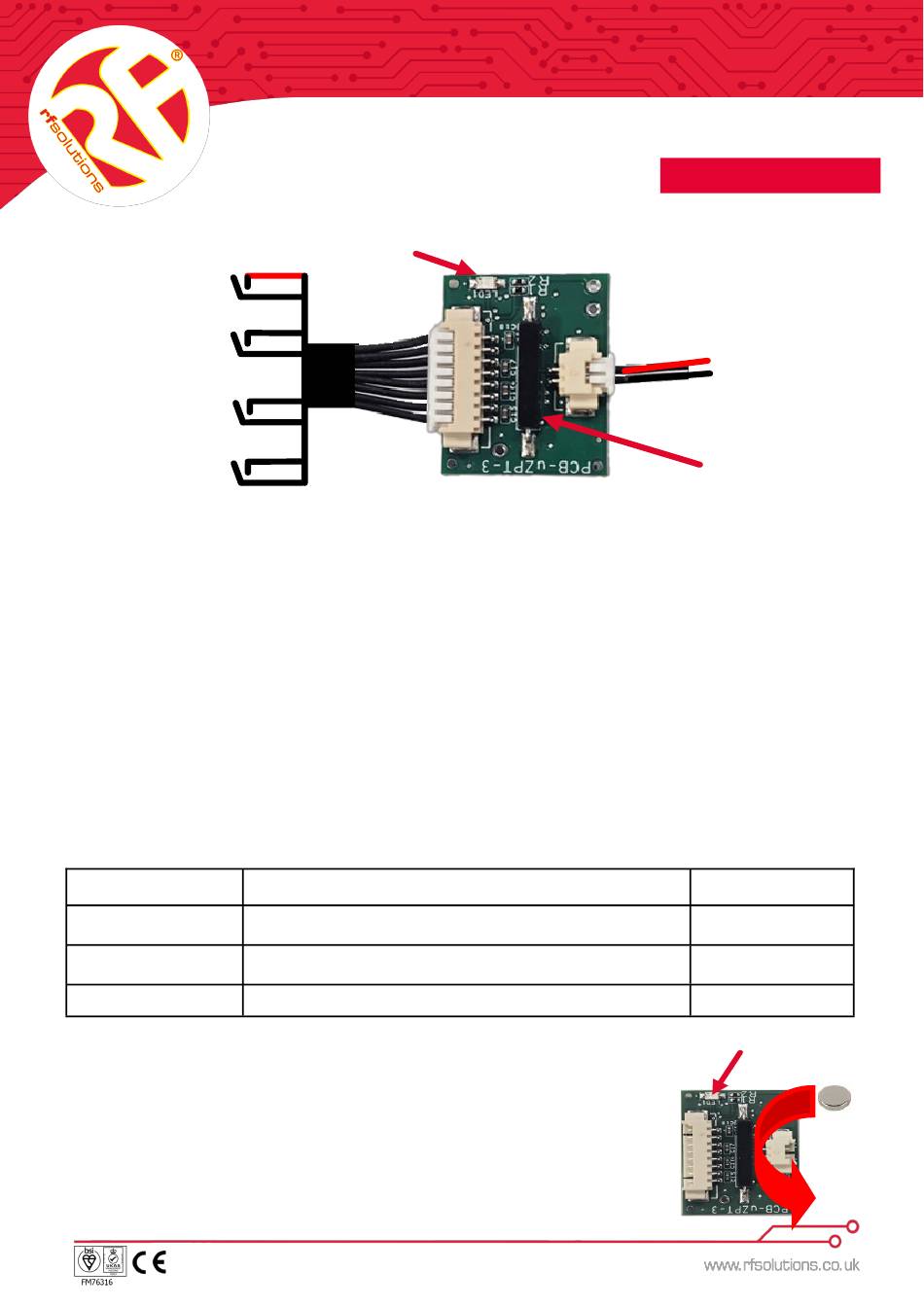

8 Way Cable
4 x Switch
Inputs
microBOGEY works out of the box
Connect switch inputs, Then deploy.
When an input is operated the MICROBOGEY will transmit an RF signal and the LED
Flashes
Pairing microBOGEY to a Receiver
microBOGEY is compatible with other RF Solutions Receivers (at the same Frequency). Each module is
factory programmed with a unique identity. A Receiver "learns" the each individual microBOGEY input.
Please follow the Receiver instructions for pairing.
Change Feature Settings
The following features can be changed by briefly presenting a magnet next to the Reed Switch
Feature
Acknowledgment
Input Switch Type
Transmit Power
To update / change the Feature, briefly present a magnet to the Reed Switch
and follow the instructions for each of the features as shown below
microBOGEY RF Transmitter
LED
Description
Enable/Disable Acknowledge signal back from Receiver
Momentary Push or Latching Switch
Low / High
QS-MICROBOGEY-T4-1
Quickstart Guide
PART NO.
microBOGEY-4T4
microBOGEY-8T4
2 Way Cable
Power In
Ground
Menu
Switch
.
Default Setting
ON
Momentary
High
LED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the microBOGEY-4T4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RF SOLUTIONS microBOGEY-4T4

Summary of Contents for RF SOLUTIONS microBOGEY-4T4

  • Page 1 Flashes Pairing microBOGEY to a Receiver microBOGEY is compatible with other RF Solutions Receivers (at the same Frequency). Each module is factory programmed with a unique identity. A Receiver “learns” the each individual microBOGEY input. Please follow the Receiver instructions for pairing.
  • Page 2 microBOGEY Radio Transmitter QS-MICROBOGEY-T4-1...

  • Page 3: Battery Precautions

    Carefully read the following safety information before proceeding with installation, Risk of explosion if battery is replaced with a battery of an incorrect type. operation, or maintenance of RF Solutions product. Failure to follow these warnings • could result in death or serious injury.
  • Page 4 Leggere attentamente le seguenti informazioni sulla sicurezza prima di procedere con • Rischio di esplosione se la batteria viene sostituita con una di tipo errato. l'installazione, il funzionamento o la manutenzione del prodotto RF Solutions. La man- • cata osservanza di queste avvertenze può provocare morte o lesioni gravi Non cortocircuitare, smontare, deformare o surriscaldare le batterie.
  • Page 5 microBOGEY Radio Transmitter Acknowledgement Request Momentary or Latching Switch Input (Menu 2) (Menu 3) Momentary Switch Input (Continuous RF Transmit) When activated the MICROBOGEY requests an MICROBOGEY continuously transmits “INPUT acknowledgement back from the receiver. CLOSED”. MICROBOGEY will retry upto 4 times until an If the Acknowledgment request is ON the receiver will acknowledgement is received, after that it will reply after each RF transmission burst.

  • Page 6: Transmit Power

    microBOGEY Radio Transmitter Transmit Power (menu 4) High Power (+20dBm) is capable of upto 4KM* Low Power (+10dBm) is capable of upto 1KM* Magnet to Menu Sw > 1Sec Please note that as well as transmit power, range depends on Antenna, type and position: Receiver sensitivity, Antenna type and position! flashes Using High Power uses more battery power.

  • Page 7: External Antenna Option

    The antenna provided can be replaced with an external antenna if required. The wire antenna can be cut and and external antenna connected to the UFL Connector. RF Solutions offer several lengths of Coax Cable assembly CBA-UFLSMA which plugs directly onto the UFL Antenna connector on the MICROBOGEY and provides a panel mount SMA connector.
  • Page 8 Disclaimer: Whilst the information in this document is believed to be correct at the time of issue, RF Solutions Ltd does not accept any liability whatsoever for its accuracy, adequacy or completeness. No express or implied warranty or representation is given relating to the information contained in this document. RF Solutions Ltd reserves the right to make changes and improvements to the product(s) described herein without notice.

This manual is also suitable for:

Microbogey-8t4
