Pro-Form 780 CSE User Manual page 11

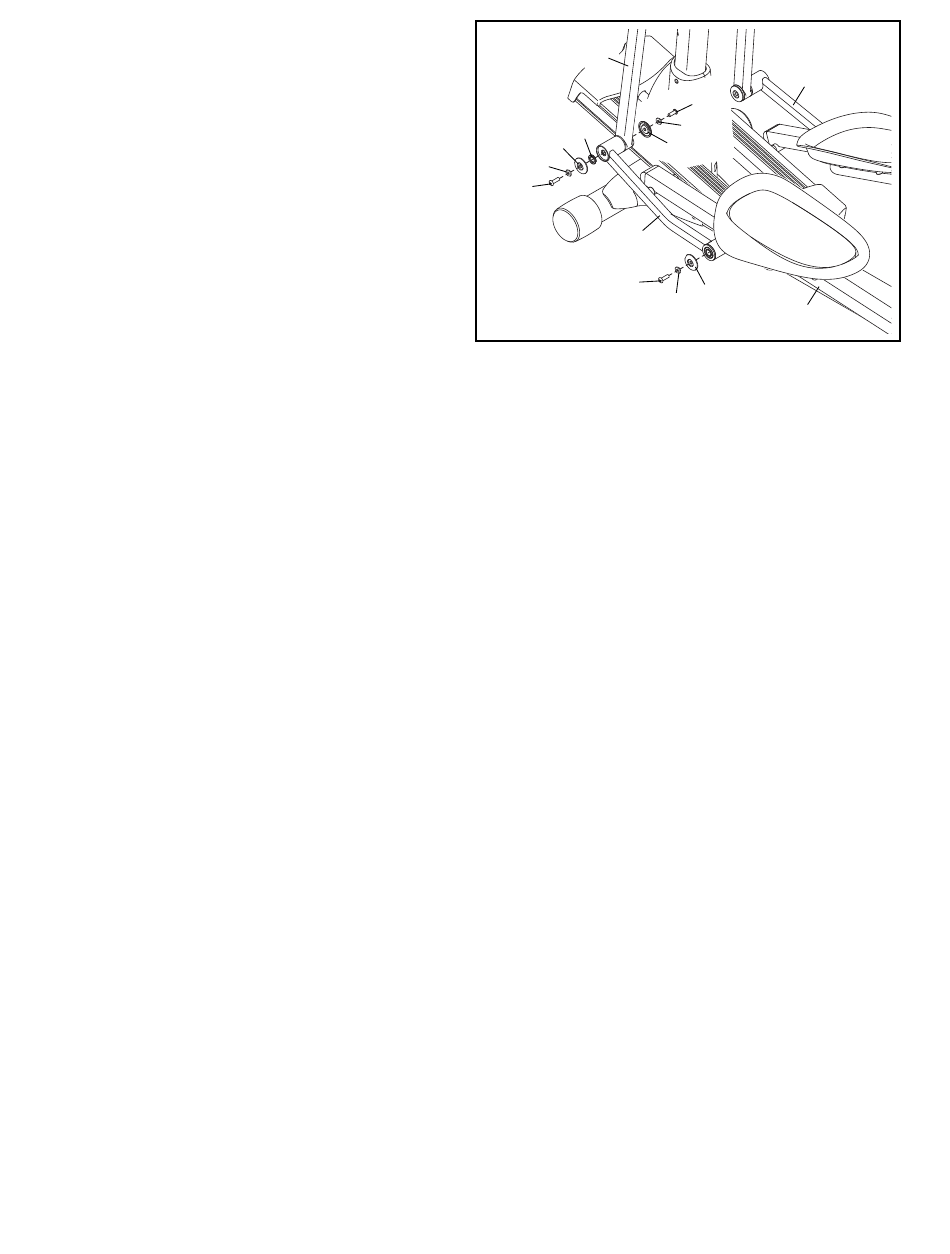

10. Attach the Left Link Arm (30) to the Left Pedal
Arm (32) with an M8 x 15mm Patch Screw
(106), an M8.5 x 16mm x 1.5mm Washer (103),
and an Axle Cover (66).
Attach the Left Link Arm (30) to the left Upper
Body Leg (24) with an M8 x 25mm Patch Screw
(110), two M8.5 x 16mm x 1.5mm
Washers (103), two Axle Covers (66), a Link
Arm Spacer (74), and an M8 x 15mm Patch
Screw (106) as shown.
Attach the Right Link Arm (31) in the same
way.
11. Make sure that all parts are properly tightened before you use the elliptical exerciser. Note: After assem-
bly is completed, some extra parts may be left over. Place a mat beneath the elliptical exerciser to protect the
floor.
Plug the power adapter into the jack on the frame of the elliptical exerciser (see HOW TO PLUG IN THE
POWER ADAPTER on page 12). IMPORTANT: If the elliptical exerciser has been exposed to cold tem-
peratures, allow it to warm to room temperature before plugging in the power cord. If you do not do
this, the console displays or other electronic components may become damaged.
