United Automation Infresco T Quick Start Manual

X20106
Infrared Heating | Heater Controller
Infresco T 4kW Controller
4000W, 240v
Efficient Energy-Saving Solution for Heating and Lighting
CONTACT US:
0044 (0) 1704-516 501
enquiries@united-automation.com
www.united-automation.com
KEY FEATURES:
✓ Capacitive Touch Interface:
Control your heating system
with just one touch.
✓ Energy Saving: Activates heat
for a pre-determined time
period, reducing energy waste.
✓ Extended Lamp Life: Soft-
start function increases lamp
longevity by up to 30%.
✓ Zero-Voltage Switching:
Ensures smooth operation and
protection for connected
devices.
✓ Low-Cost: Economical solution
for efficient heating.
✓ Easy Installation: Simple
setup process with minimal
maintenance required.
✓ LED Indicators:
▪ Blue LED = 'Power On'
▪ Red LED = 'Heater On'
APPLICATIONS:
➢ Patio Areas: Perfect for
outdoor seating and dining
spaces.
➢ Smoking Shelters: Provides
comfortable heating in
designated smoking areas.
➢ Restaurants: Enhances the
dining experience with efficient
heating.
➢ Warehouses: Suitable for spot
heating in large spaces.
➢ Workshops: Keeps work areas
warm and well-lit.
➢ Garden Lighting: Ideal for
illuminating and heating
outdoor gardens.
BMF House - Wight Moss Way,
Southport Business Park
Southport PR8 4HQ
ENGLAND
unitedautomationltd

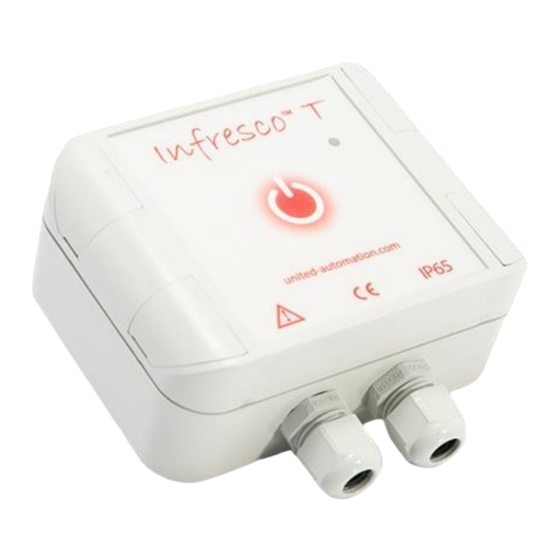

The Infresco T (Capacitive Touch) 4kW controller is a cutting-edge solution
designed to optimize energy usage for Quartz Infrared Halogen Lamps and
other heating and lighting products. Featuring a capacitive touch interface, the
Infresco T allows you to control your heating system with just one touch,
providing convenience and efficiency.
This microcontroller-based unit activates lamps for a user-defined period
ranging from 1 to 40 minutes, delivering efficient and targeted heating. It
incorporates zero-voltage switching and a soft-start function to minimize the
initial high inrush current, potentially extending lamp life by up to 30%. Simple to
install and virtually maintenance-free, the Infresco T is an ideal choice for both
commercial and residential settings.
Enhance your outdoor and indoor spaces with the Infresco T (Capacitive Touch)
4kW controller, combining energy efficiency, ease of use, and reliable
performance for a wide range of applications.
TECHNICAL SPECIFICATIONS
Supply Voltage
Switching Capacity
Lamp On-Time
Current Consumption
(control circuit)
Terminals
Operating Temperature
Protection Rating
Gland Diameter
Enclosure Dimensions (mm)
(W x L x H)
UA_Limited
(Capacitive Touch)
230VAC +/- 10% 50/60Hz
4kW Max.
1 to 60 Minutes
50mA
2
2.5mm Rising Clamp
-20 to 40°C
IP65
Max Cable Entry 2.5mm
120 x 90 x 50
18 June 2024 | Issue: 5
2
Page 1 of 5
