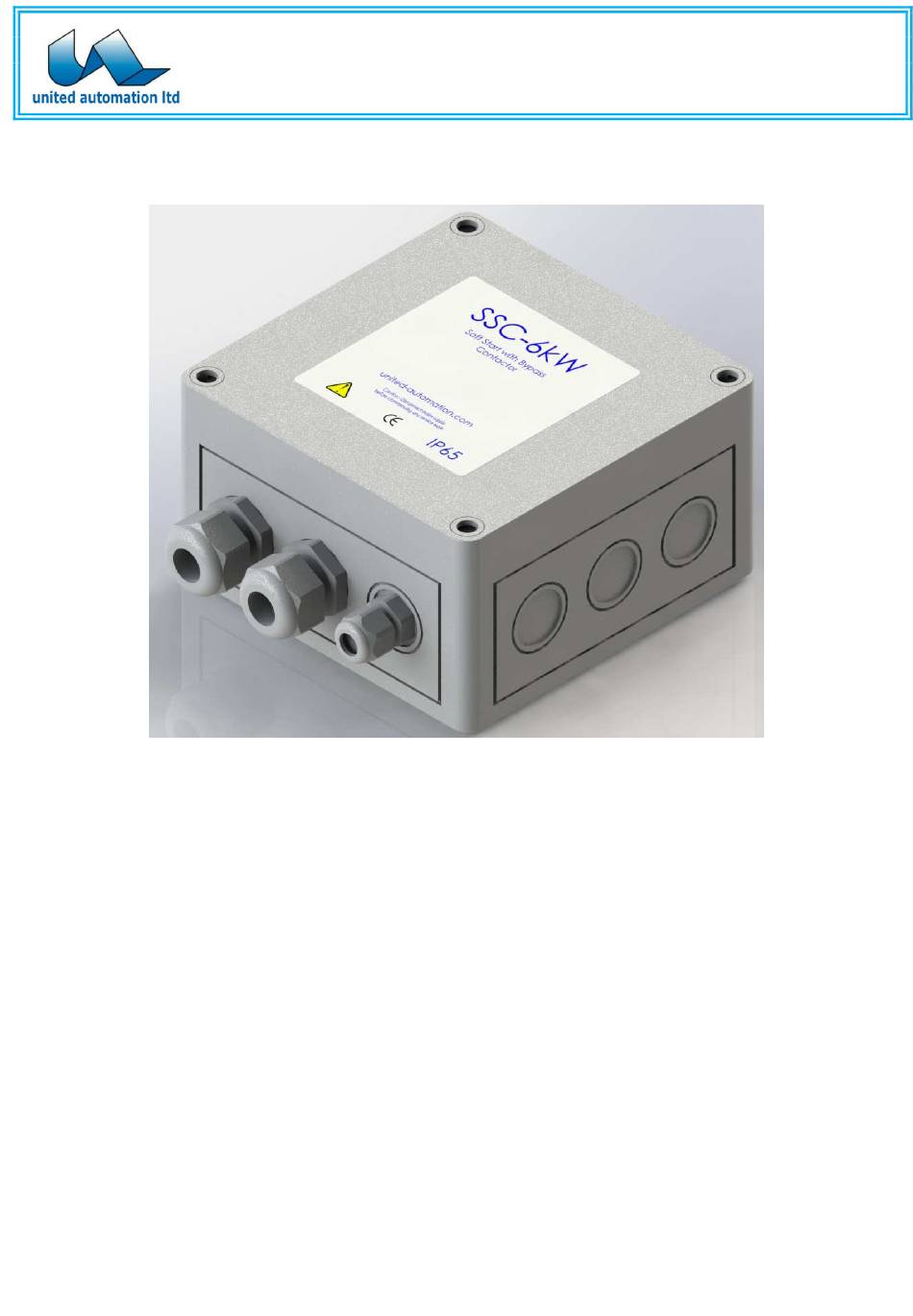

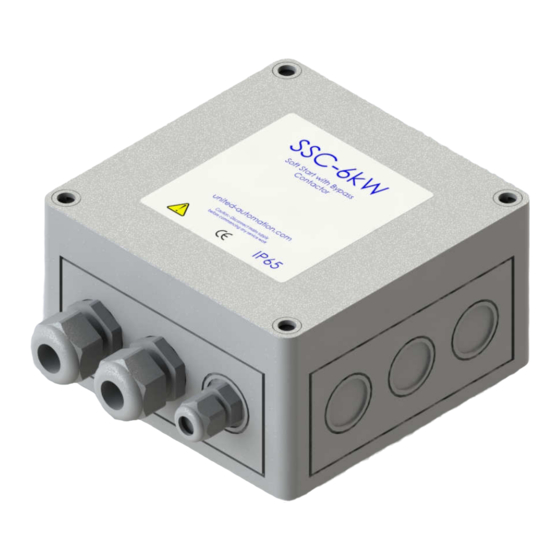

- Page 1 X20012 Issue 1 Soft Start with Bypass Contactor-6kW Date 4/08/16 User Manual Page 1 of 7 KEY FEATURES • Soft start • Pedestal • Easy to install...
- Page 2 TECHNICAL SPECIFICATION Supply Voltage 230VAC +/- 10% 50/ 60 Hz Switching Capacity 6kW Max. Ramp On-Time 1 – 5 Seconds Pedestal Value 0 – 40% (Conduction Angle) Current Consumption (control circuit) 20mA Terminals 6.0mm Rising Clamp Operating Temperature -20 to 40° C Protection Rating IP65 Gland Diameter...
- Page 3 WIRING It is recommended that installation and maintenance of this equipment should be done with reference to the current edition of the I.E.E. wiring regulations (BS7671) by suitably qualified/trained personnel. These regulations contain important requirements regarding safety of electrical equipment (for International Standards refer to I.E.C/ directive IEC950).
- Page 4 WIRING DIAGRAM...
- Page 5 MOUNTING TEMPLATE IMPORTANT! When wall mounting, the unit must be orientated with the cable glands facing down. Use these template dimensions to locate the 4 mounting-hole centres prior to drilling. IMPORTANT! Drilling of any holes through the enclosure will immediately invalidate the warranty of the unit.
- Page 6 TROUBLESHOOTING Warning! Isolate the mains supply before commencing any work on the unit. Failure to do so could result in serious injury or fatality. Problem: System doesn’t Start Solution: • Check the mains supply to the unit is switched on. •...
- Page 7 PRODUCT APPLICATION • Transformers • Motors • Compressors • All resistive loads S o u t h p o r t B u s i n e s s P a r k , W i g h t M o s s W a y , S o u t h p o r t , P R 8 4 H Q T e l + 4 4 ( 0 ) 1 7 0 4 5 1 6 5 0 0 F a x : + 4 4 ( 0 ) 1 7 0 4 5 1 6 5 0 1 E m a i l : s a l e s @ u n i t e d - a u t o m a t i o n .
