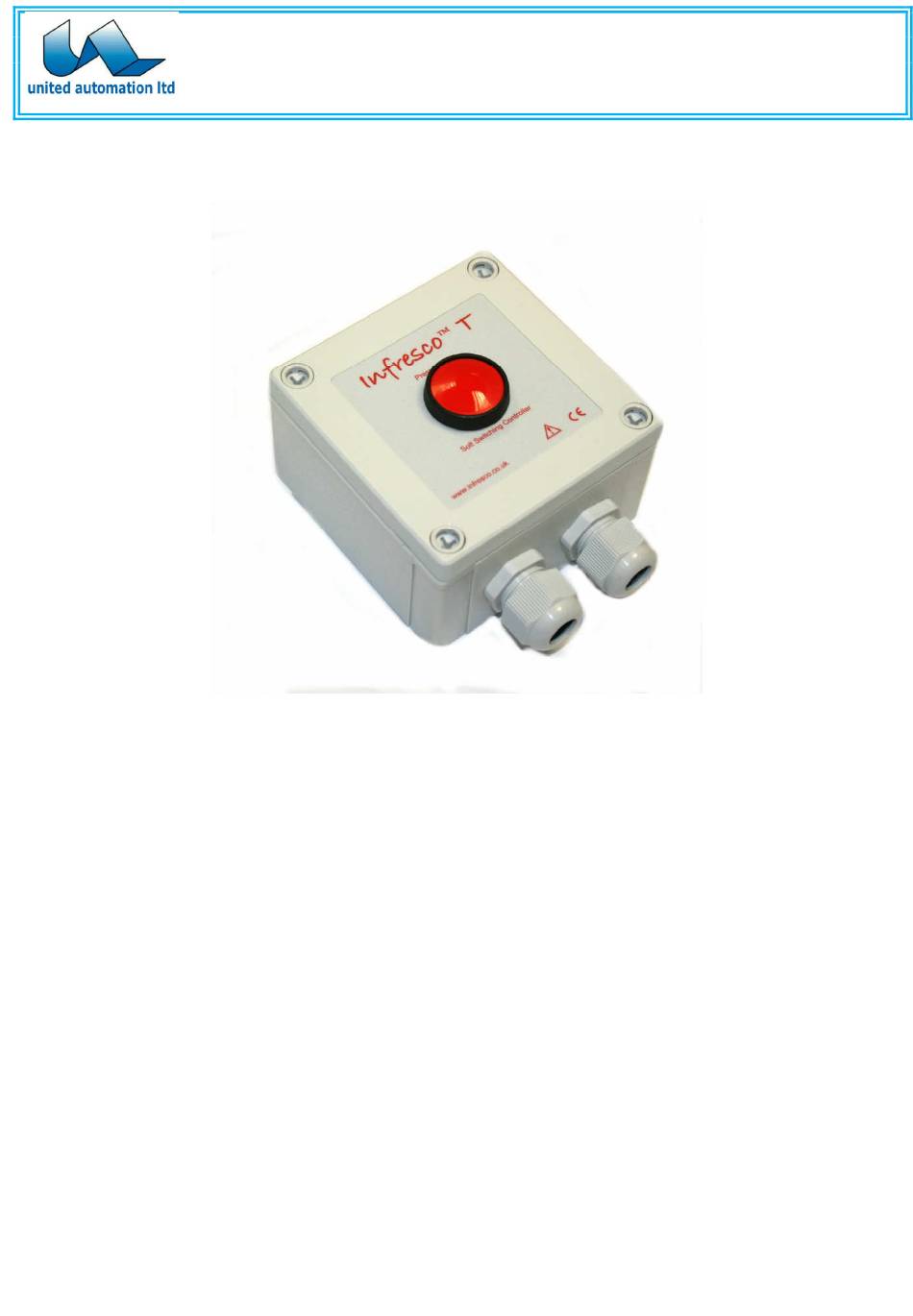

- Page 1 X20019 Issue 4 INFRESCO T 4KW Date 21/01/16 User Manual Page 1 of 6 KEY FEATURES • Energy saving – provides heat for a pre- determined time period. • Extends Lamp Life. • Soft-start/zero-voltage switch-off • Low-cost • Easy to install...
- Page 2 TECHNICAL SPECIFICATIONS & INSTALLLATION Supply Voltage 230VAC +/- 10% 50/60Hz Switching Capacity 4kW Max. Lamp On-Time 1 to 60 minutes Current Consumption (control circuit) 50mA Terminals 2.5mm Rising Clamp Operating Temperature -20 to 40° C Protection Rating IP65 Gland Diameter Max Cable Entry 2.5mm²...
- Page 3 MOUNTING TEMPLATE Use these template dimensions to locate the 4 mounting-hole centres prior to drilling. IMPORTANT! Drilling of any holes through the enclosure will immediately invalidate the warranty of the unit.
- Page 4 WIRING DIAGRAM...
- Page 5 RECOMMENDATION & SAFETY REQUIREMENTS SUPPORTING DATASHEETS FOR PRODUCTS AND APPLICATIONS Other documents, which may be appropriate for your applications, are available on request. CODE IDENTITY DESCRIPTION X10255 Safety requirements: Addressing the Low Voltage Directive (LVD) including, Thermal data/cooling, Live parts warning Earth requirements and Fusing recommendations. Declaration of Conformity (relating to a purchase order) P01.1 UAL Conditions of sale.
- Page 6 PRODUCT APPLICATIONS • Patio areas • Smoking shelters • Restaurants • Warehouses • Workshops • Garden lighting S o u t h p o r t B u s i n e s s P a r k , W i g h t M o s s W a y , S o u t h p o r t , P R 8 4 H Q T e l + 4 4 ( 0 ) 1 7 0 4 5 1 6 5 0 0 F a x : + 4 4 ( 0 ) 1 7 0 4 5 1 6 5 0 1 E m a i l : s a l e s @ u n i t e d - a u t o m a t i o n .
