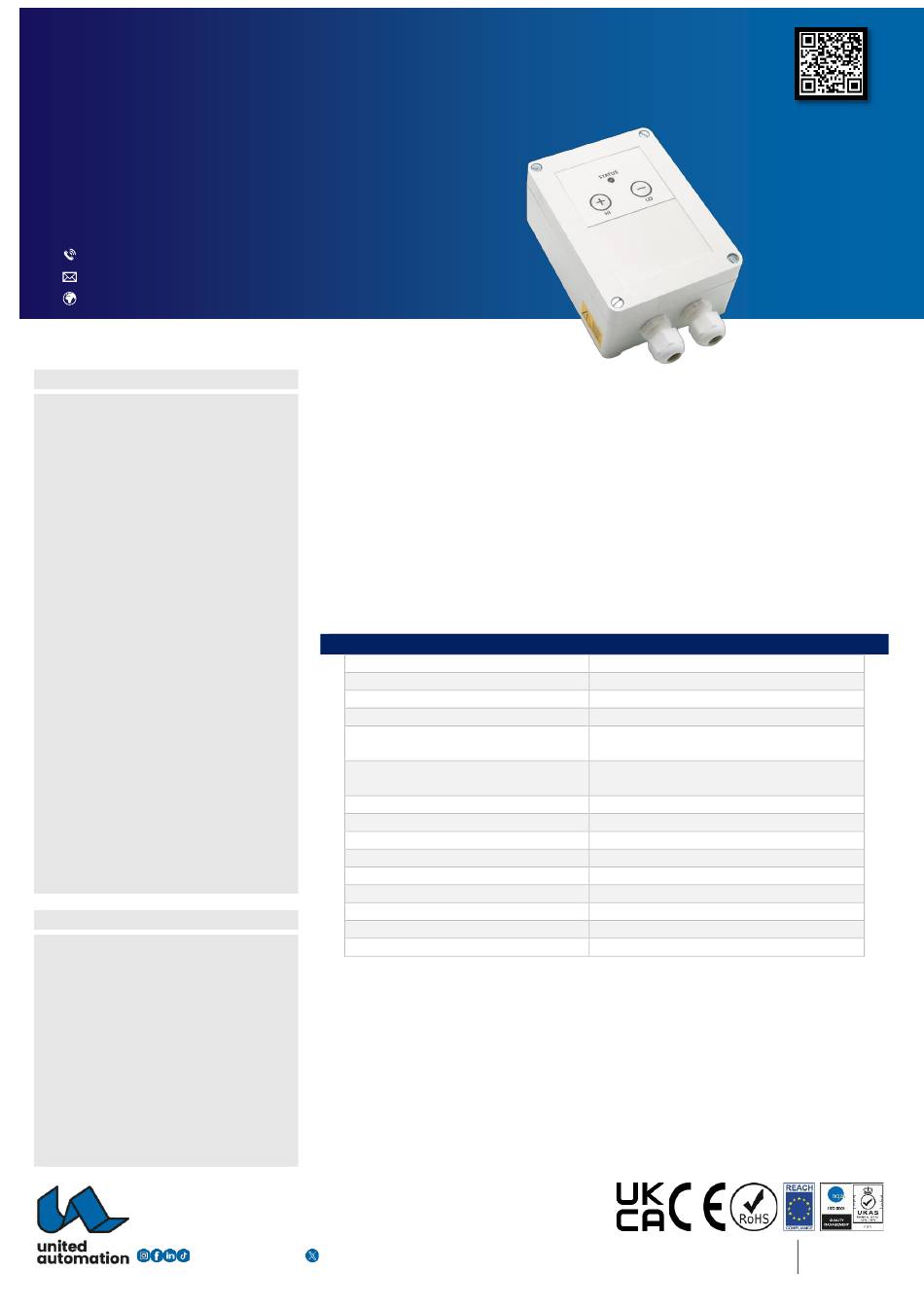

United Automation INFRESCO-VR-1.5kW Quick Start Manual

X20084
Infrared Heating | Heater Controller
Infresco VR 1.5Kw Control
1500W, 240v
Optimal Control for Quartz Halogen Infrared Heat Lamps
CONTACT US:
0044 (0) 1704-516 501
enquiries@united-automation.com
www.united-automation.com
KEY FEATURES:
✓ Output Control: Customize
your comfort with variable
power settings ranging from
30% to 100%.
✓ Simple Wall Mounting: Easy
to install on any wall surface.
✓ IP55 Protection: Suitable for
outdoor installation with dust
and water jet protection.
✓ Soft-Start Function: Gradually
switch on the lamp to extend
lamp life.
✓ Simple In-Line Wiring:
Connect using 3-core cables for
a straightforward setup.
✓ Pre-Selected Heat Output
Levels: Choose from multiple
heat settings for optimal
comfort.
✓ Power Output Indication:
High-intensity LED shows when
power is being regulated.
✓ Integral EMC Filter
Suppression: Reduces
electromagnetic interference.
✓ Relay Override at Maximum
Output: Minimizes heat
dissipation at full power.
APPLICATIONS:
➢ Patio Areas: Provides targeted
heating for outdoor spaces.
➢ Smoking Shelters: Maintains
comfort in smoking areas.
➢ Restaurants: Enhances
comfort in outdoor dining.
➢ Warehouses: Keeps large
industrial spaces warm.
➢ Workshops: Ensures reliable
heating for work environments.
➢ Garden Lighting: Controls
lighting to enhance garden
aesthetics.
BMF House - Wight Moss Way,
Southport Business Park
Southport PR8 4HQ
ENGLAND
unitedautomationltd

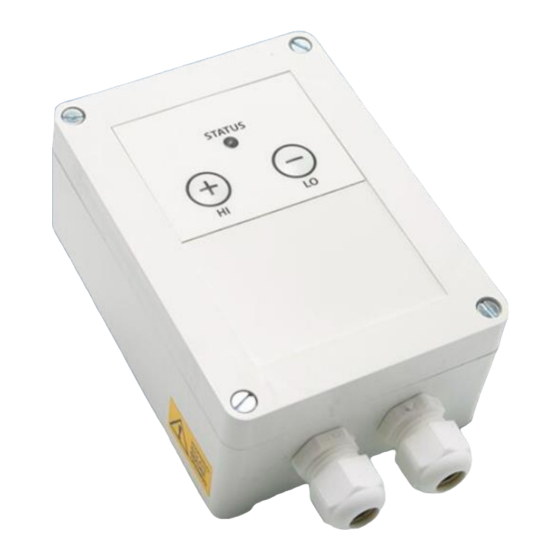

The INFRESCO-VR-1.5kW controller is designed for precise, variable control of
mains-driven loads, specifically Quartz Halogen Infrared heat lamps, up to a
total of 1.5kW. This advanced microcontroller-based unit features a 'soft-start'
function that gradually switches on the lamp, eliminating the initial high inrush
current and potentially extending lamp life by up to 30%.
With easy-to-use up and down push-buttons, users can select output levels,
indicated by a high-intensity LED that shows when the controller is regulating
power to the lamp load. Additionally, a built-in relay override function ensures
that at maximum power (100%), the relay bypasses the power devices to
minimize heat dissipation, maintaining a lower operating temperature.
The INFRESCO-VR-1.5kW controller is simple to install, low maintenance, and
offers robust performance for a variety of settings.
TECHNICAL SPECIFICATIONS
Supply Voltage
Supply Frequency
Load Rating (maximum)
Output Levels
Fusing or MCB Rating (external)
IP Rating
Operating Temperature
Maximum Ambient Temperature
Fixings
Supply & Load Cable (recommended)
Terminal Cable Ratings
Terminal Torque Settings (maximum)
Weight
Power Consumption (maximum)
Isolation Voltage
UA_Limited
(Fully Variable Version)
230V AC +/-10%
50Hz
6.5A (1.5kW @ 230V AC & 25°C ambient)
Variable from 30% to 100%
13A (Brown) Mains fuse or 16A domestic
MCB
IP55 – Dust protection; protected against
water jets
-20°C to 50°C
30°C
4 x 3.5Ø holes (on 97 x 82mm centres)
1.0mm² 400V AC (minimum rating)
2.5mm²
0.5 Nm
500g
70mA
2500V RMS
18 June 2024 | Issue: 3 Page 1 of 4
