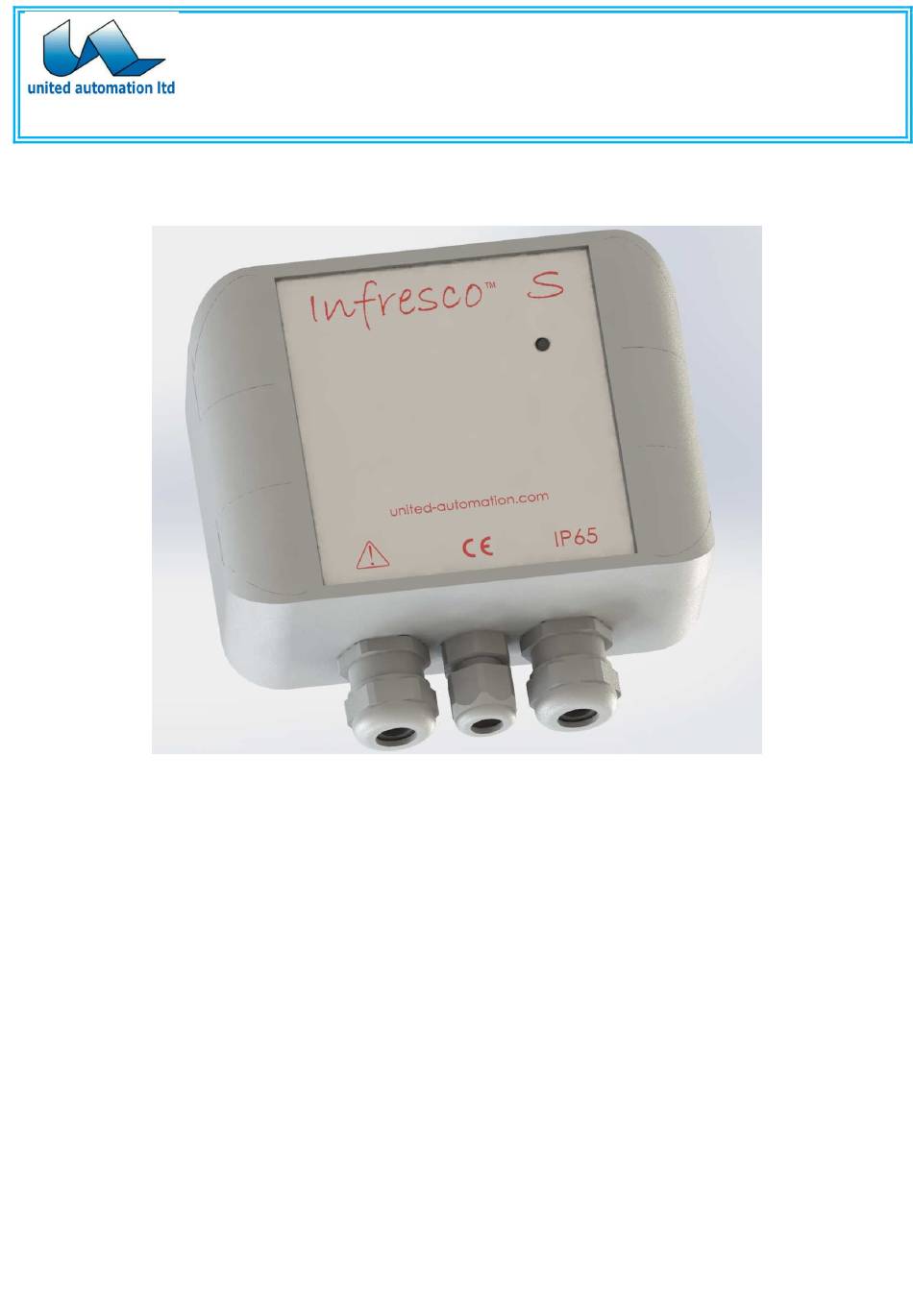

- Page 1 INFRESCO-S-4kW X20034 Issue: 2 User Manual Date: 12/06/18 Page: 1 of 6 KEY FEATURES • Extends lamp Life. • Ideal for controlling up to 2 x 2kW lamps. • Soft-start/zero-voltage switch-off. • Low-cost. • Easy to install. • Power ON (Blue) & Heater ON (Red) LED indication.
- Page 2 Important: Read carefully the following information before installing the unit. The Infresco-S-4kW should be fixed securely using the four mounting holes accessible from the front of the unit. Remove the lid to access the mounting holes. To ease installation, a mounting template is provided on the next page to locate the 4 mounting hole centres.
- Page 3 MOUNTING TEMPLATE & INSTALLATION Mounting Template Use this template to locate the 4 mounting hole centres prior to drilling. IMPORTANT! The drilling of any additional holes will immediately void the warranty of this unit. The unit must be positioned with the cable glands facing down.
- Page 4 WIRING DIAGRAM Link Must be fitted to Enable Unit Page 4 of 6...
- Page 5 ADDITIONAL INFORMATION When using a remote switch it is important that an additional cable gland (not supplied) is used to ensure the IP rating is maintained. The rear of the enclosure contains the PCB; this will need to be removed before attempting to fit the additional cable gland.
- Page 6 PRODUCT APPLICATIONS Garden Lighting Patio Areas Smoking shelters Restaurants Warehouses Workshops Livery stable S o u t h p o r t B u s i n e s s P a r k , W i g h t M o s s W a y , S o u t h p o r t , P R 8 4 H Q T e l : + 4 4 ( 0 ) 1 7 0 4 5 1 6 5 0 0 F a x : + 4 4 ( 0 ) 1 7 0 4 5 1 6 5 0 1 e m a i l : s a l e s @ u n i t e d - a u t o m a t i o n .
