Energy saving:-
Only provides heat when people are present.
o
•
Extends lamp life.
•
Temperature sensor:-
Lamps inhibited when ambient temperature exceeds set point.
o
•
Soft-start/zero-voltage switch-off.
•
Low-cost.
•
Easy to install.
•
Power ON (Blue) & Heater ON (Red) LED indication
INFRESCO P 4kW
User manual
KEY FEATURES
X20114
Issue 2
Date 11/06/18
Page 1 of 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INFRESCO P and is the answer not in the manual?

Questions and answers

Related Manuals for United Automation INFRESCO P

Summary of Contents for United Automation INFRESCO P

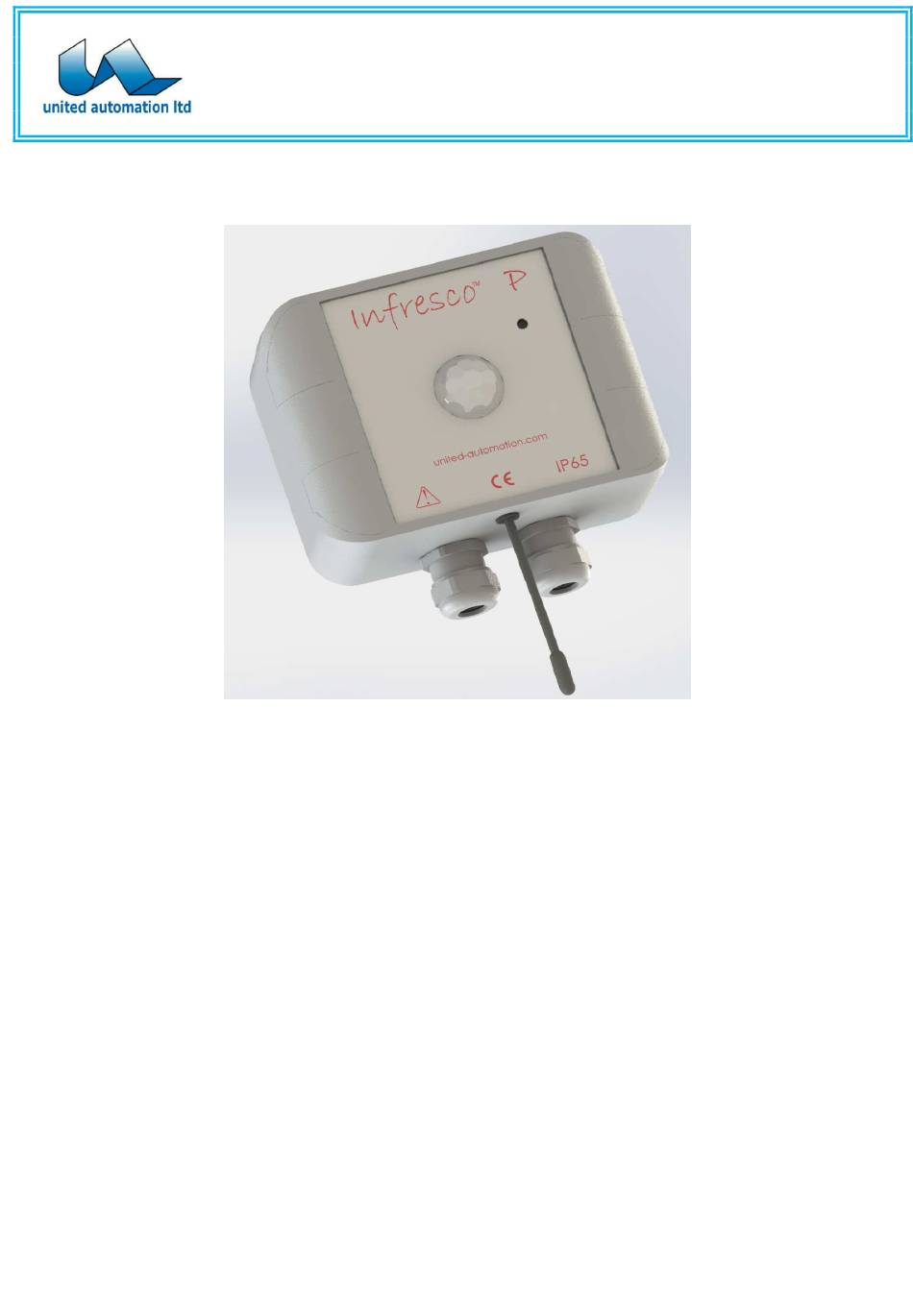

  • Page 1 X20114 Issue 2 INFRESCO P 4kW Date 11/06/18 User manual Page 1 of 9 KEY FEATURES • Energy saving:- Only provides heat when people are present. • Extends lamp life. • Temperature sensor:- Lamps inhibited when ambient temperature exceeds set point.

  • Page 2: Technical Specification

    TECHNICAL SPECIFICATION Supply Voltage 230VAC +/- 10% @ 50/60Hz Switching Capacity 4kW Max. Detection Range 5 metres Detection Angle 100° Temperature Set Point 1 to 60° C Lamp On-Time 5 Minutes (fixed) Current Consumption (control circuit) 50mA Terminals 2.5mm Rising Clamp Operating Temperature -20 to 40°...

  • Page 3: Wiring Diagram

    WIRING DIAGRAM...
  • Page 4 PIR DETECTION AREA Horizontal Vertical Positioning The Infresco-P 4kW can be wall or ceiling-mounted. For wall mounting, the unit should be positioned 1-3 metres high. The diagram above shows the PIR’s detection area. The unit should be fixed securely using the four mounting holes accessible from the front of the unit. Remove the lid to access the mounting holes.

  • Page 5: Mounting Template

    MOUNTING TEMPLATE Use these template dimensions to locate the 4 mounting-hole centres prior to drilling. IMPORTANT! Drilling of any holes through the enclosure will immediately invalidate the warranty of the unit. The unit MUST be orientated with the cable glands facing down.
  • Page 6 WIRING It is recommended that installation and maintenance of this equipment should be done with reference to the current edition of the I.E.E. wiring regulations (BS7671) by suitably qualified/trained personnel. These regulations contain important requirements regarding safety of electrical equipment (for International Standards refer to I.E.C/ directive IEC950).

  • Page 7: Troubleshooting

    TROUBLESHOOTING Problem: Lamps do not switch on. Solution: Check the LINE and LOAD wiring connections to the unit and ensure the mains supply is switched on. The ambient temperature may have exceeded the set point temperature. If necessary, increase the set point temperature (VR1).
  • Page 8 RECOMMENDATION & SAFETY REQUIREMENTS SUPPORTING DATASHEETS FOR PRODUCTS AND APPLICATIONS Other documents, which may be appropriate for your applications, are available on request. CODE IDENTITY DESCRIPTION X10255 Safety requirements: Addressing the Low Voltage Directive (LVD) including, Thermal data/cooling, Live parts warning Earth requirements and Fusing recommendations. P01.1 UAL Conditions of sale.

  • Page 9: Product Applications

    PRODUCT APPLICATIONS • Patio areas. • Smoking shelters. • Restaurants. • Warehouses. • Workshops. • Garden lighting. • Livery stables S o u t h p o r t B u s i n e s s P a r k , W i g h t M o s s W a y , S o u t h p o r t , P R 8 4 H Q T e l + 4 4 ( 0 ) 1 7 0 4 5 1 6 5 0 0 F a x : + 4 4 ( 0 ) 1 7 0 4 5 1 6 5 0 1 E m a i l : s a l e s @ u n i t e d - a u t o m a t i o n .
