Removal and Replacement Procedures

5.6 LED Cover

LED cover

1. Prepare the computer for disassembly (Section 5.3).
2. Turn the computer top side up with the front facing you.
3. Open the computer.
4. Lift up the left edge of the LED cover 1 (Figure 5-5).
5. Lift up the front edge of the LED cover from left to right 2 .
6. Lift the LED cover straight up to remove it.

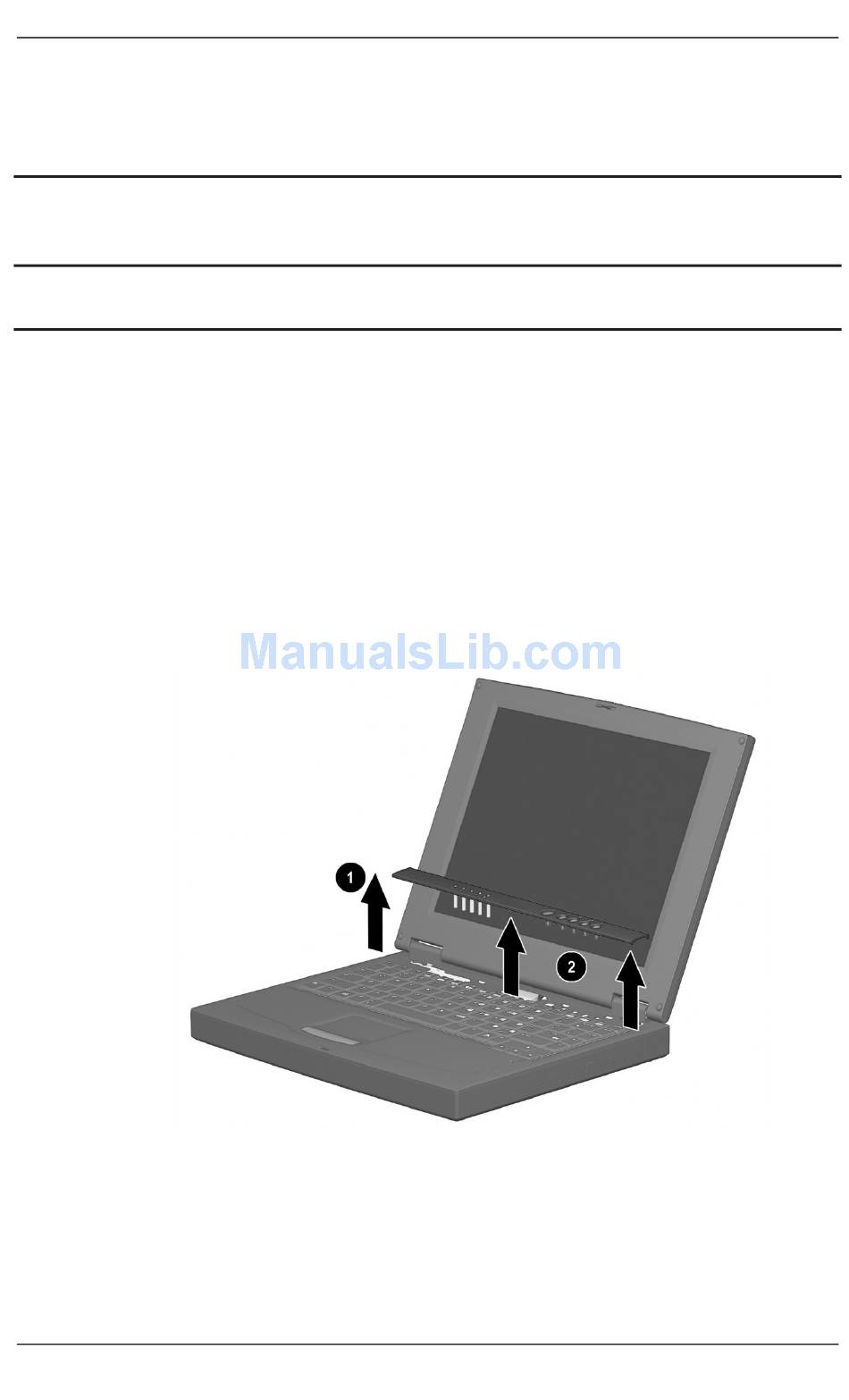

Figure 5–5: Removing the LED Cover
Reverse the above procedure to install the LED cover.
5–8
LED Cover
Spare Part Number Information
Maintenance and Service Guide
233559-001
