Operator's Manual
Models: WP10, WP20, HPC20, HP202, TP30, WP20-HGX,
HP202-HGX and TP30-HGX

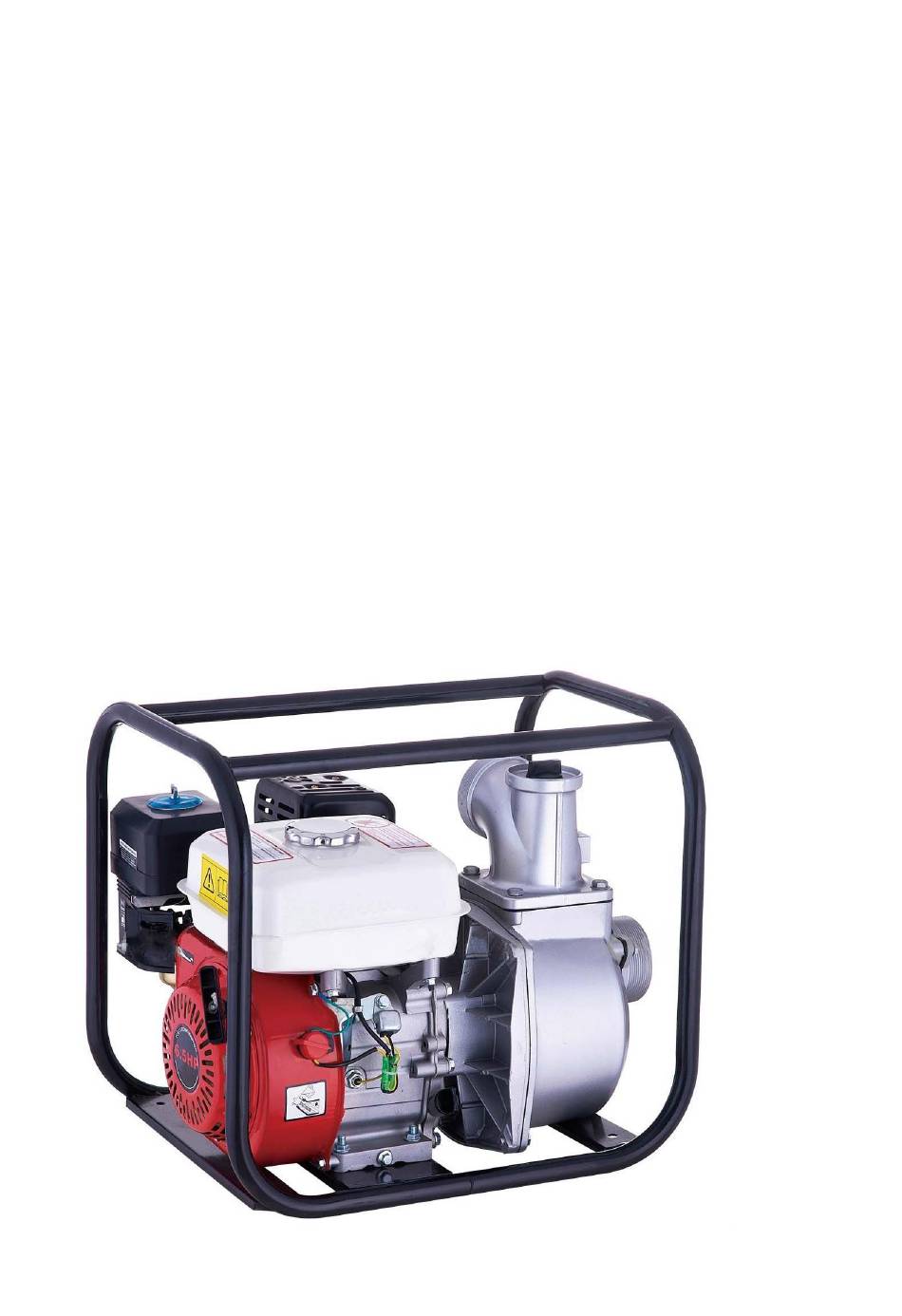

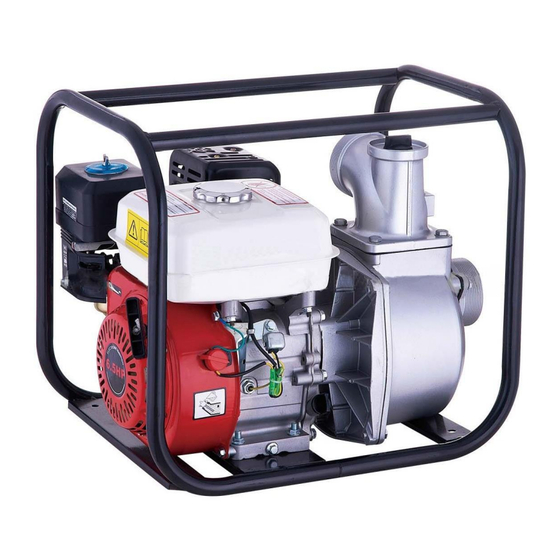

PETROL POWERED WATER PUMP
WARNING: Do not assemble, install or operate this equipment without reading ALL of
this manual and the safety precautions and warning illustrated in this manual.
NOTE: PUMP DOES NOT INCLUDE OIL OR PETROL.
MS 27.7.22
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vortex WP10
Summary of Contents for Vortex WP10
- Page 1 Operator’s Manual Models: WP10, WP20, HPC20, HP202, TP30, WP20-HGX, HP202-HGX and TP30-HGX PETROL POWERED WATER PUMP WARNING: Do not assemble, install or operate this equipment without reading ALL of this manual and the safety precautions and warning illustrated in this manual.
- Page 2 SAFETY PRECAUTIONS AND WARNINGS PLEASE READ BEFORE USING EQUIPMENT DANGER DANGER indicates a potentially hazardous situation which, if not avoided, WILL, result in death or serious injury. WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
- Page 3 SAFETY PRECAUTIONS AND WARNINGS PLEASE READ BEFORE USING EQUIPMENT 10. Always store the water pump in a well- d. Never refuel the water pump near open ventilated area. Follow the instructions in flames, sparking electrical equipment or this manual is for preparing to store the water pilot lights Pump.
-
Page 4: Specifications
Transistorized Ignition System Magneto Magneto Magneto Magneto Table 2 Pump HP202 HPC20 WP20 TP30 WP10 WP20- HP202- TP30- Suction and Discharge Port Size (mm) Max Total Head (m) Nominal Head (m) Max Suction Head (m) Discharge Capacity (L/M) 1000 1000 Max. -
Page 5: Features/Package Contents
Features/Package Contents Package Contents Hose Hose Sealing Hose Clamp 1. Water Pump Unit Clamps Washer Coupler Ring 2. Operator’s Manual 3. Warranty Card 4. Spark Plug Wrench 5. Hose Clamps (3) 6. Hose Coupler (2) 7. Hose Clamp Ring (2) 8. -
Page 6: Component & Control Locations
Component & Control Locations MS 27.7.22... -
Page 7: Engine Preparation
Set Up • Fuel and refuel in a well- Engine Preparation ventilated area with the engine Engine Oil stopped. • NOTE: Engine oil is a major factor affecting Do not smoke or allow flames or the performance and service life of this water sparks in the area where the engine is pump. -
Page 8: Operation
Operation Pre-Start Preparation WARNING Pump Placement Improperly maintaining this pump, or failing to correct a problem before operation could cause For best pump performance, place the pump near a malfunction that may result in serious injury. the water level and use hoses that are no longer than necessary. -
Page 9: Suction Hose Installation
Operation Suction Hose Installation Discharge Hose Installation 1. Slide a hose coupler into the hose clamp ring. 1. Slide a hose coupler into the hose clamp ring. 2. Insert sealing washer into the hose clamp ring. 2. Insert sealing washer into the hose clamp ring. 3. -
Page 10: Starting The Engine
Operation 5. Pull the starter grip lightly until you feel Starting the Engine resistance, then pull briskly. Return the grip gently. 1. Move the fuel valve lever to the “ON” position. Starter Grip 6. If the choke lever has been moved to the “CLOSED”... -
Page 11: Shutting Down The Pump
Operation 5. Remove filler cap from the pump and flush Shutting Down the Pump the pump chamber with clean water. Note: For emergency engine stop, simply turn Filler the engine switch to “OFF”. 1. Move the throttle lever to the “SLOW” position. -
Page 12: Maintenance Schedule
Maintenance Maintenance Schedule Each use REGULAR SERVICE PERIOD First Every 3 Every 6 Every month or months or months or year or (3) ITEM Perform at every 20 Hours 50 Hours 100 Hours Hours indicated month or operating Hour interval, whichever comes first. √... -
Page 13: Engine Oil Change
Maintenance Spark Arrestor Cleaning Engine Oil Change 1. Change oil while engine is warm to assure 1. Engine must be cool and muffler safe to touch complete and rapid draining. to remove the Spark Arrestor from the muffler. 2. The Water Pump should be on a level surface. 2. -
Page 14: Troubleshooting
Turn engine switch on. Refill the tank. Is there fuel in the tank? Is there oil in the engine? Add the recommended oil. Contact: Vortex Still no Spark Is there a spark from the Replace the Distributors Ltd spark plug? spark plug. -
Page 15: Engine Lacks Power
Is the fuel filter clogged? Clean or replace fuel filter. If the engine still lacks power take the water pump, Vortex Distributors Ltd No Pump Output Is the pump primed? Prime the pump. -
Page 16: Low Pump Output
Relocate the pump and/or hoses to Is the head marginal? reduce the head. If the pump still has no output contact: Vortex Distributors High Altitude Operation At high altitude, the standard carburetor air-fuel Even with carburetor modification, engine horse- mixture will be too rich. Performance will decrease, power will decrease about 3.5% for each 1,000- foot... -
Page 17: Warranty Terms And Conditions
1 (one) year from the date of purchase. Subject to the conditions of the warranty, Vortex Distributors Ltd will repair any defective products that are installed / used in New Zealand free of charge at the premises of Vortex Distributors Ltd, or our authorised service agents throughout New Zealand.
