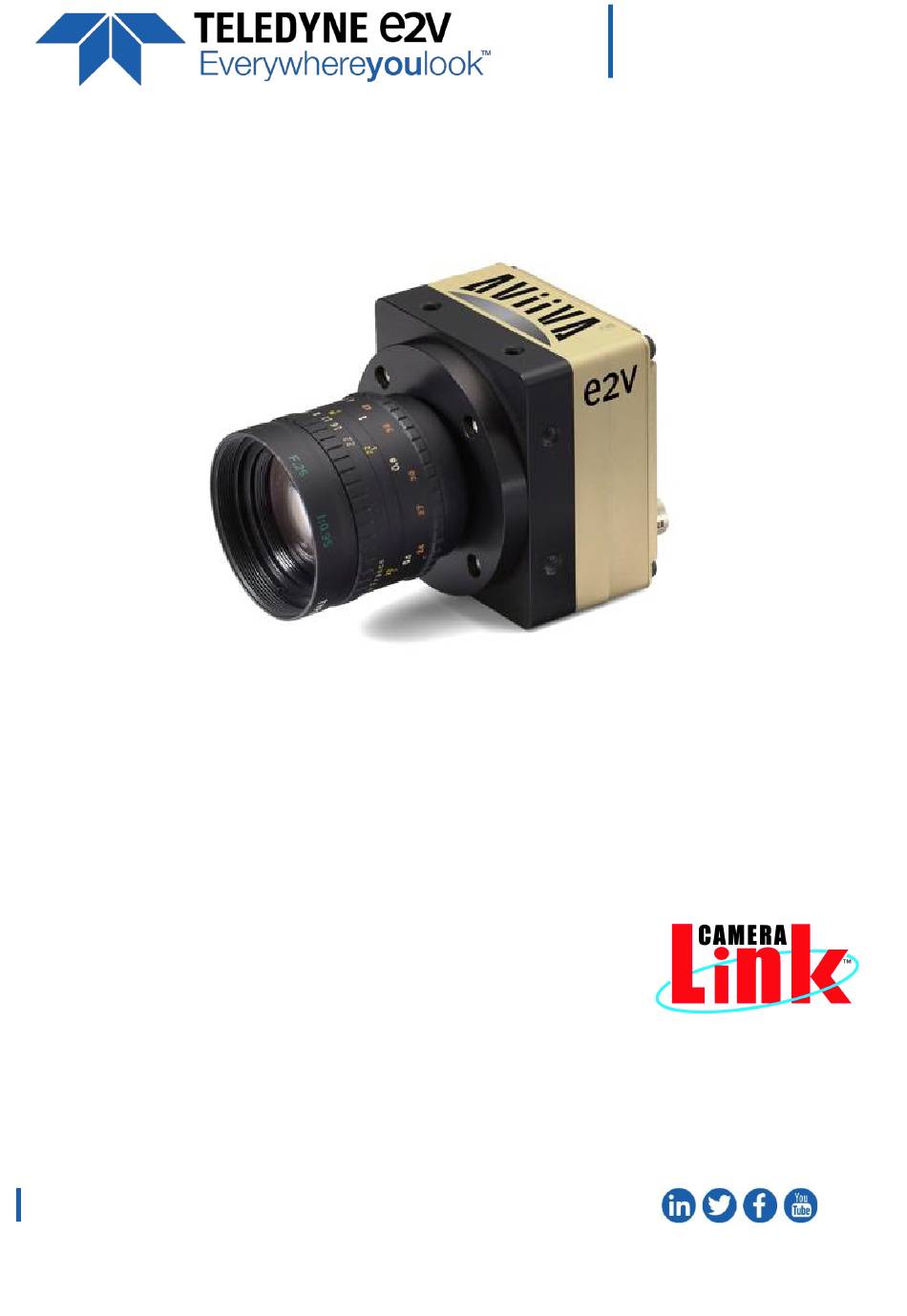

- Page 1 AViiVA SM2 CCD Linescan Camera USER MANUAL AVIIVA SM2 CL MONOCHROME Teledyne-e2v.com/cameras...
-
Page 2: Table Of Contents
Contents Camera Overview ..............................4 Features ................................... 4 Key Specifications ................................ 4 Description ..................................5 Typical Applications ..............................5 Models ....................................5 CAMERA PERFORMANCES ..........................6 Camera Characterization ............................6 Image Sensor ................................. 6 Response & QE curves ..............................7 2.3.1 Quantum Efficiency .................................. - Page 3 Ext Trig with Exposure time set in the camera ....................27 Ext Trig Full Exposure time available ........................ 27 Ext Trig with Exposure Time Controlled (ITC) with one Trig ..............28 Ext Trig with Integration Time Controlled (ITC) with two Trigs ............. 28 APPENDIX C : Optical Mounts available ....................
-
Page 4: Camera Overview
1 Camera Overview 1.1 Features • CCD Monochrome LineScan Sensors: 1024 pixels, 14x14µm 512 pixels, 14x14µm • Interface : CameraLink® (Base) • Line Rate : 53kl/s u to 96.4 kl/s • Data Rate : 1x 60MHz or 2x 30MHz for BA9 version From 2 x15MHz to 2x 30MHz or from 1x 30MHz to 1x 60MHz BA0 versions •... -
Page 5: Description
(*) Teledyne e2v norm: more severe than EMVA 1288 Standard 1.3 Description “The Teledyne e2v AViiVA SM2 takes advantage of all the features that made the AViiVA M2 a success, but integrates flat field correction to compensate for lens and light source non-uniformities. Teledyne e2v manages the cameras entire manufacturing process from sensor to the camera. -
Page 6: Camera Performances
2 CAMERA PERFORMANCES 2.1 Camera Characterization Unit 1k x 14µm BA9 1k x 14µm BA0 0,5k x 10µm BA0 Typ. Typ. Typ. Dark Noise RMS Dynamic Range Full Well Capacity SNR (3/4 Sat) 49.5 49.5 49.5 Peak Response LSB/ (730nm) (nJ/cm2) Non Linearity +/-0.3... -
Page 7: Response & Qe Curves
2.3 Response & QE curves 2.3.1 Quantum Efficiency QE (%) Wavelenght (nm) 2.3.2 Spectral Response Curves Response Wavelenght (nm) UM AVIIVA SM2 Monochrome CL – RevD... -
Page 8: Camera Hardware And Interface
3 Camera Hardware and Interface 3.1 Mechanical Drawings X,Y Plan Reference mounting Plane Depth 12 1st Pixel Reference mounting Planes Sensor alignment and 1 Pixel Position Z = -10.3 mm (Optical) ±30µm X = 20.832 mm (1k 14µm) ±50 µm X = 24.416 mm (0.5k 14µm) Y = 30 mm ±50 µm... -
Page 9: Input/Output Connectors And Led
3.2 Input/output Connectors and LED 3.2.1 Power Connector Camera connector type: Hirose HR10A-7R-6PB (male) Cable connector type: Hirose HR10A-7P-6S (female) Signal Signal Power supply from 10 to 15v Power 3,5W max with an typical inrush current peak of 2.5A during power up Camera side description 3.2.2 Consumption and Inrush Current Typical current/Power during the grab... -
Page 10: Standard Conformity
• A shielded power supply cable • A camera Link data transfer cable ref. 14B26-SZLB-500-OLC (3M) Teledyne e2v recommends using the same configuration to ensure the compliance with the following standards. 4.1 CE Conformity The AViiVA cameras comply with the requirements of the EMC (European) directive 2004/108/EC. - Page 11 UM AVIIVA SM2 Monochrome CL – RevD...
-
Page 12: Getting Started
There is no CDROM delivered with the Camera : Both User Manual (this document) and CommCam control software have to be downloaded from the web site : This ensure you to have an up-to-date version. www.Teledyne e2v.com/cameras Main Camera page : On the appropriate Camera Page (AVIIVA SM2 Monochrome) you’ll find a download link... -
Page 13: Camera Software Interface
6 CAMERA SOFTWARE INTERFACE 6.1 Control and Interface As all the Teledyne e2v Cameras, the AVIIVA CL is delivered with the friendly interface control software COMMCAM.UCL (as “Ultimate Camera Link”) which is based on the GenICam standard COMMCAM recognizes and detects automatically all the UCL Cameras connected on any transport layers (Camera Link or COM ports) of your system. -
Page 14: Command Processing
6.2.2 Command Processing Each command received by the camera is processed: ➢ The setting is implemented (if valid) ➢ The camera returns “>”<return code><CR> The possible return codes are detailed in the table next chapter. The camera return code has to be received before sending a new command. The camera return code has to be received before sending a new command. -
Page 15: Camera Commands
7 Camera Commands The Following chapter is about the camera commands. These commands are detailed are in ASCII format only. The return standard code if the commands has been correctly executed is : “>Ok”<CR> This return code follows all the returns of each command described below. 7.1 Device Information &... - Page 16 Bit 26 to 31 : Minor Version Number Write function : Cannot be written • Test ID : Camera Test Identifiation set in Factory for testing and identification purpose . Read function : “! = 10”; Returned by the camera : String of 50 Characters String (including “/0”) ...
-
Page 17: Image Format
7.2 Image Format There is no individual readout for each of these parameters. The readout is made with the global command “!=3” • Output Configuration : Defines the number of CameraLink Channels in base mode. Write function : “D=<val>” <val>... -
Page 18: Acquisition Control
7.3 Acquisition Control • Exposure Time : Defines the Internal Exposure time when compliant with the Trigger Mode. Write function : “I=<val>” <val> is : INT value from 1 to 32767 The Exposure time is directly defined in Microseconds : Maximum value is then 32.767ms •... -
Page 19: Gains And Offsets
7.4 Gains and Offsets Digital Analog Global Odd/Even Contrast Expansion Gain Offset Gain Offset Gain Offset Gain Pixel Action on whole line Action per pixel Action Per Sensor Tap • Global Gain : Defines the Global Analog Gain of the Camera. ... -
Page 20: Flat Field Correction
7.5 Flat Field Correction 7.5.1 Automatic Calibration • FPN Calibration Control : Launch the FPN (Fix Pattern Noise or DSNU : Dark Signal Non Uniformity) calibration process for the Offsets calculation. These commands are available in the CommCam “Flat Field Correction / Automatic Calibration ”... - Page 21 ➢ Each Pixel is corrected with : An Offset coded on 8 bits (Unsigned Int). They cover a dynamic of 0 to 255LSB in 12bits with a resolution of 1 LSB 12bits. A Gain on 12 bits with a max gain value of x1.999 The calculation of the new pixel value is : P’...
-
Page 22: Manual Flat Field Correction
7.5.2 Manual Flat Field Correction The FFC Coefficients can also be processed outside of the Camera or changed manually by accessing directly their values in the Camera : This is the “Manual” FFC. In CommCam, the User can access to a specific interface by clicking on “click for extended control” in both “Manual FFC calibration”... -
Page 23: Save & Restore Ffc In User Banks
7.5.3 Save & Restore FFC in User Banks The FFC Coefficients processed by the camera can be stored in 4 different User Banks. FPN (Offsets) and PRNU (Gains) coefficients are stored separately : • Save FPN Coefficients : Save all the FPN Offsets in one of the four User banks . ... -
Page 24: Save/Restore Configuration
7.6 Save/Restore Configuration The configuration of the camera (all the parameters except the FPN/PRNU Coefficients) can be saved in 4x User Banks. At the power up of the Camera, one of these User Bank will be restored, depending on the Recall Method set by the “CM”... -
Page 25: Appendix A: Test Patterns
8 APPENDIX A: Test Patterns 8.1 1k Pixels, 12bits Increment of 4 grey level at each pixels : Pixel 0 1 2 3 ….. 1020 1022 1023 Value 0 4 8 12 ….. 4084 4088 4092 8.2 0.5k Pixels, 12bits Increment of 8 grey level at each pixels : Pixel 0 1 2 3... -
Page 26: Appendix B: Timing Diagrams
9 APPENDIX B: Timing Diagrams Internal Clock CLOCK_IN LVAL STROBE DATA Fist valid pixel Last valid pixel Label Typical Unit Input Falling edge to output clock nsec Strobe to synchro signals nsec 9.1 Free Run This mode doesn’t require an external trigger. In this case, the line period (tper) can be defined in the Camera (see below) but the real line period of the camera depends also on the exposure time (tint) set : ➢... -
Page 27: Ext Trig With Exposure Time Set In The Camera
9.2 Ext Trig with Exposure time set in the camera This mode requires an external trigger ( via CC1) but the exposure time is the one defined in the Camera. If the line period of the Trig signal provided to the camera is lower than the exposure time set in the camera, the “short trig pulses”... -
Page 28: Ext Trig With Exposure Time Controlled (Itc) With One Trig
9.4 Ext Trig with Exposure Time Controlled (ITC) with one Trig This mode requires an external trigger ( via CC1). Both exposure time and line period are defined by this Trig signal : ➢ The exposure time during the low level of the Trig Signal Label Typical Unit... -
Page 29: Appendix C : Optical Mounts Available
10 APPENDIX C : Optical Mounts available 10.1 F-Mount F Mount : Kit10 (Part number AT71KFPAVIVA-ABA) UM AVIIVA SM2 Monochrome CL – RevD... -
Page 30: C-Mount
10.2 C-Mount UM AVIIVA SM2 Monochrome CL – RevD... -
Page 31: T2 & M42X1 Mounts
10.3 T2 & M42x1 Mounts M42x0,75 (T2 Mount) : Kit30 (Part number AT71KFPAVIVA-AKA) M42x1 Mount : Kit40 (Part number AT71KFPAVIVA-ADA) UM AVIIVA SM2 Monochrome CL – RevD... -
Page 32: Appendix D : Revision History
11 APPENDIX D : Revision History Comments / Details Firmware version Manual CommCam Revision compliant Version First release SM2 1014 BA0 1.0.6 2.4.5 Rev A SM2 514 BA0 1.0.6 2.4.5 SM2 1014 BA9 1.0.11 2.4.5 UM AVIIVA SM2 Monochrome CL – RevD...
